TRICONEX 9566-810 (7400150-370/3000540-380) is a 32-channel digital input module for Triconex TMR SIS systems. New original in stock, supports 24V AC/DC input, built-in fault detection, with full quality testing and 12-month warranty for industrial safety control applications.
Product Core Brief
- Model: 9566-810 (7400150-370 / 3000540-380)
- Brand: TRICONEX (Schneider Electric)
- Series: Trident TMR Safety Instrumented System (SIS)
- Core Function: Collects and processes digital switch signals for industrial safety interlock control
- Type: 32-Channel Digital Input Module
- Key Specs: 24V AC/DC input voltage, full-channel fault diagnosis, TMR redundant compatibility
- Condition: New Surplus, non-refurbished, factory unsealed original stock
- Warranty: 12 months professional after-sales warranty
Product Introduction
For maintenance engineers managing petrochemical and power plant SIS systems, the TRICONEX 9566-810 (7400150-370/3000540-380) is a core field signal acquisition module that directly impacts system safety operation. It serves as a dedicated digital input unit for Triconex Trident triple modular redundant (TMR) systems, deployed on-site to capture real-time digital status of valves, switches and safety sensors.
This module stands out from ordinary industrial input modules with its dedicated safety-level design. It supports 32 independent signal channels and 24V AC/DC wide-range input, adapting to most conventional industrial digital signal sources. Equipped with independent channel fault diagnosis logic, it can quickly identify open circuits and abnormal signals. Its field-verified design delivers stable long-term operation, effectively reducing unplanned shutdown risks for safety-critical production lines — a key advantage for high-risk industrial scenario deployment.
Key Technical Specifications
| Parameter Item | Technical Data |
|---|---|
| Channel Quantity | 32 digital input channels |
| Input Voltage Range | 24V AC/DC industrial universal voltage |
| Compatible System | Triconex Trident TMR SIS safety system |
| Diagnosis Function | Full-channel open circuit, signal abnormality detection |
| Installation Method | Standard rack-mounted modular installation |
| Operating Temperature | -20°C to +60°C industrial grade |
| Humidity Resistance | 5%–95% non-condensing environment |
| Product Coding | 9566-810 / 7400150-370 / 3000540-380 |
| Service Life | Long-term stable operation for industrial scenarios |
| Application Scenarios | Petrochemical, power, chemical safety instrumented systems |
Professional QC Testing SOP
All TRICONEX 9566-810 modules undergo strict multi-step testing before delivery to eliminate hidden risks of stock parts, with full test records available for customer verification.
1. Warehouse Entry Inspection
We verify original factory packing lists and official coding documents to trace product sources. Check anti-counterfeiting labels and complete serial number queries, and inspect the module surface for no corrosion, scratches or aging discoloration. All original accessories including manuals and qualification certificates are fully matched.
2. On-Site Live Function Test
Tests are conducted on a dedicated Triconex Trident SIS test rack. We complete power-on self-check to confirm normal LED indicator status, and perform full-channel signal simulation tests. The module runs continuously for more than 24 hours to monitor temperature rise and operating stability. A complete test report is generated after the test passes.
3. Electrical Parameter Detection
We use Fluke 115 multimeter to complete 500V insulation resistance tests, with all data stably above 10 MΩ. Ground continuity and pressure resistance tests are carried out in accordance with industrial safety standards to ensure electrical performance compliance.
4. Firmware & Configuration Verification
Record the original factory firmware version of each module and back up default DIP switch and jumper settings. We unify version matching standards to avoid system compatibility problems caused by firmware differences.
5. Final Packaging & Delivery Inspection
Qualified modules are sealed with anti-static bags, wrapped with bubble film and packed in standard cartons. Professional inspectors sign off and paste QC Passed labels with test dates. Test videos and photos can be provided upon customer request.

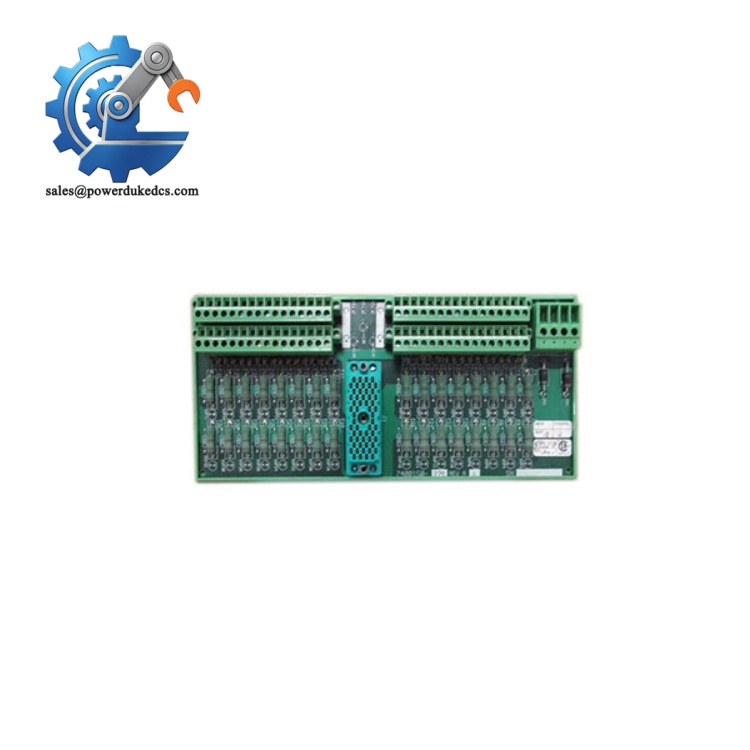

TRICONEX 9566-810 3000540-380
Field Replacement Pitfall Guide
Most on-site module failures after replacement stem from operational details rather than product quality. These summarized practical pitfalls help engineers avoid rework and prolonged downtime.
❗ Firmware Version Mismatch
Different firmware versions of 9566-810 have subtle differences in SIS system communication protocols. We once encountered a site case where engineers directly replaced the module without version confirmation, causing persistent system communication timeout alarms. Always record the original module firmware version before replacement and confirm version consistency with suppliers.
❗ DIP Switch Configuration Errors
Factory default switch settings do not match all on-site bus address and baud rate requirements. This is the most frequent low-level error in replacement operations. Take photos of the old module’s switch positions before disassembly and copy the configuration one by one for the new module.
❗ Terminal Wiring Incompatibility
Even for identical model modules, individual batch pin definitions may have minor differences. Do not rely on experience wiring. Check the official wiring diagram in advance and confirm the single-ended shielding grounding standard to avoid signal interference.
❗ On-Site ESD Damage
SIS modules are highly sensitive to static electricity. I have witnessed unprotected operation causing direct internal circuit breakdown and module scrapping. Wear anti-static wristbands and operate on anti-static mats, especially in dry winter environments.
❗ Power Load Insufficiency
Multiple front-end field modules will increase the overall rack power consumption. Calculate the total power load before replacement and reserve more than 20% power margin to avoid abnormal module operation caused by insufficient power supply.
Quick Conclusion
- TRICONEX 9566-810 is a dedicated 32-channel digital input module for Triconex TMR SIS safety systems, suitable for high-risk industrial safety control scenarios.
- New original surplus stock with complete QC tests and 12-month warranty, supporting fast delivery to meet emergency maintenance needs.
- Full-channel fault diagnosis function improves on-site fault location efficiency and reduces system maintenance costs.
- Not applicable for non-Triconex Trident system transformation; firmware version matching must be confirmed before purchase and replacement.
FAQ
Q1: Which systems is the 9566-810 module compatible with?
It is specially designed for Triconex Trident TMR safety instrumented systems. It cannot be matched with other brands of SIS or ordinary PLC systems, and compatibility needs to be confirmed according to the on-site system version.
Q2: Are the provided modules new original products?
All products are new surplus original parts, non-refurbished and non-repaired. Each module has passed full electrical and functional tests, with complete test documents supportable.
Q3: What is the delivery cycle and after-sales policy?
In-stock goods can be delivered within 1–3 working days. The whole machine enjoys a 12-month warranty. Failed modules caused by non-human factors can be replaced or repaired for free during the warranty period.
Q4: Why do communication alarms occur after module replacement?
Mostly due to inconsistent firmware versions or incorrect DIP switch configurations. It is recommended to back up the old module configuration and confirm firmware version matching before replacement.
Q5: Can you provide test videos and qualification documents?
Yes. We can provide on-site test videos, test reports and product qualification certificates for each batch of modules to support customer inspection and filing.
