TRICONEX AO3481S2 | SIL3 Certified Analog Output Module for Oil & Gas Process Control

Meta Description

TRICONEX AO3481S2 is an 8-channel analog output module built for Tricon TMR safety systems. It delivers 16-bit precision 4-20mA signals, supports channel isolation and built-in self-diagnosis. Suitable for chemical, power and oil & gas SIS retrofitting. Available as industrial spare parts with full testing reports.

Product Core Brief

Model: AO3481S2
Brand: TRICONEX
Series: Tricon TMR Safety Instrumented System
Core Function: Convert digital control signals to analog outputs to drive field control valves
Type: Analog Output Module (AO Module)
Key Specs: 8 independent channels, 16-bit resolution, 4–20mA programmable output, SIL3 compliant

Condition: Surplus tested stock, fully function verified

⚠️ Original production discontinued, limited inventory available

Product Introduction

Many safety shutdown loops rely on stable analog output to modulate control valves, and TRICONEX AO3481S2 is the dedicated I/O module built for such critical tasks inside Tricon Triconex SIS platforms. It works with triple modular redundant controllers to execute safety control logic for process industries.

Compared with older AO variants in the Tricon lineup, AO3481S2 improves channel isolation and fault diagnosis coverage. It achieves ±0.25% full-scale accuracy across -40°C ~ +70°C operating range. Each channel can be monitored independently. Single-channel failure will not interrupt other output loops, lowering unplanned shutdown risks for continuous production plants.

Key Technical Specifications

Parameter	Specification
Model	AO3481S2
Channel Count	8 analog output channels
Signal Range	4–20mA DC, supports 0–22mA overrange
Resolution	16 bit
Output Accuracy	≤ ±0.25% FS
Signal Update Rate	10 ms
Power Supply	24 VDC
Operating Temperature	-40 ℃ ~ +70 ℃
Isolation	Channel-to-channel, channel-to-backplane isolation
Safety Level	SIL 3 (IEC 61508)
Communication	Triconex proprietary Tribus bus
Protection Class	IP20
Weight	Approx. 0.6 kg

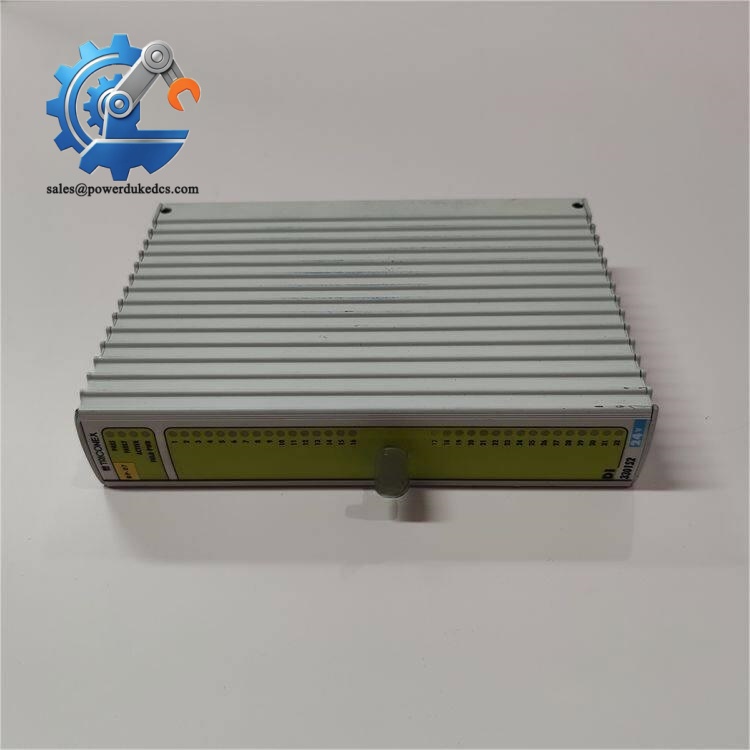

TRICONEX AO3481S2

Quality Control Process

Inbound Inspection & Traceability Check

Verify serial number consistency, original marking integrity. Full visual inspection to confirm no corrosion, scratch, circuit board modification or component aging. Check matched accessories and factory labels.
Bench Functional Live Test

Install module on standard Tricon test rack. Complete power-on self-test, backplane communication handshake, all-channel analog output simulation and continuous 24-hour load operation. All output data is logged for test documentation.
Electrical Performance Test

Insulation resistance testing, continuity inspection. Confirm no leakage current under standard test voltage.
Firmware Recording

Read and record onboard firmware version. We will match the firmware version according to customer on-site system requirements before delivery if requested.
Final QC & Packaging

QC engineer confirms all test items pass. Pack with anti-static shielding film and shock-resistant bubble wrap. Attach QC passed label with test date. Test photos or video can be provided on request.

Field Replacement Pitfall Guide

❗ Firmware Version Mismatch Risk

The most frequent site issue. Even modules with identical model codes may run different firmware revisions. Inconsistent firmware will trigger communication timeout alarms after replacement.

Tip: Record firmware version from your existing module before ordering. We can adjust firmware to match your system.

Case Reference: One petrochemical project spent two days troubleshooting valve control failure only because updated firmware could not match the legacy host controller.

❗ Channel Wiring & Terminal Confirmation

Check wiring diagram carefully. Do not copy wiring experience from other similar modules. Confirm load impedance of on-site actuators stays within the module supported range. Improper impedance will cause signal drift.

❗ ESD Protection During Installation

The circuit board is sensitive to static electricity. Wear anti-static wristband and operate on anti-static mat. Dry winter environments raise static damage probability. We have received returned modules damaged by direct bare-hand operation.

❗ Bus Configuration Check

This module runs under Tricon TMR architecture. Confirm backplane slot configuration and logical address after installation. Misconfigured slot parameters disable output channels.

Quick Conclusion

AO3481S2 is exclusive to Triconex Tricon SIS TMR safety control systems, cannot work with third-party PLC platforms directly.
Mainly used for modulating control valves in safety interlock loops for chemical, power, oil and gas facilities.
Confirm firmware version, load impedance and rack slot configuration before procurement and replacement.
Stock is limited since original manufacturing has stopped; lead time depends on available inventory.
Every unit is fully bench tested before shipment, test records available upon request.
