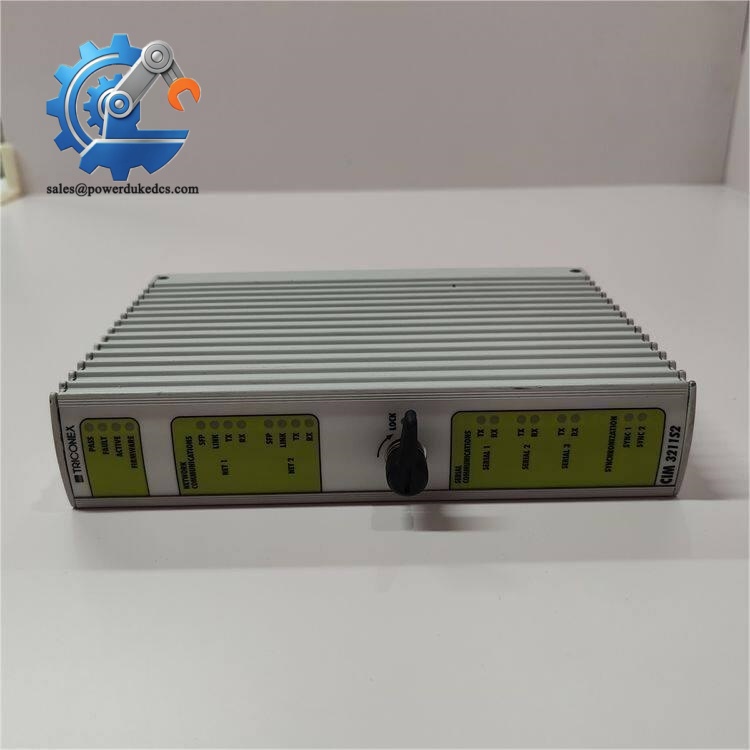

1. TRICONEX CIM3211S2 | SIL3 Certified Communication Integration Module

Product Core Brief

• Model: CIM3211S2
• Brand: TRICONEX
• Series: Tricon TMR Safety Instrumented System
• Core Function: Build data transmission channel between Tricon controller and external automation systems
• Type: Communication Integration Module (CIM)
• Key Specs: TMR compatible, 10/100 Mbps Ethernet, galvanic isolation, supports hot swap

  Condition: New Surplus, not refurbished

  ⚠️ Obsolete original production, limited stock available

Product Introduction

Key Technical Specifications

Quality Inspection Process

1. Incoming Verification

   Cross-check serial number and original factory label information; full visual inspection for shell deformation, circuit board corrosion and scratch marks. All attached accessories shall be counted and recorded.

2. Live Bench Test

   Install module on standard Tricon test rack. Complete power-on self-test, LED status check, Ethernet communication handshake and continuous 24-hour aging test. We can provide test photos or video records upon request.

3. Electrical Performance Test

   Verify isolation resistance and ground continuity. Record all abnormal feedback from internal diagnostic registers.

4. Firmware Recording

   Read and store firmware version information. Document DIP switch and jumper configuration status.

5. Final Packing

   Passed modules will be sealed with anti-static bags, wrapped with bubble film and packed into cartons. QC pass label with inspection date will be attached outside.

Field Installation Pitfall Guide

1. Firmware Version Mismatch

   Different firmware revisions will trigger communication timeout errors after replacement. Record the firmware version of the old module before removal. If version adjustment is required, confirm feasibility before delivery. One maintenance case shows mismatched firmware caused two days of site debugging downtime.

2. Improper Terminal Resistor Setting

   Bus terminal resistors only apply to two endpoints of the whole communication chain. Extra resistors will distort signal waveforms and lead to intermittent disconnection. Take photos of original wiring configuration before disassembly.

3. Grounding Difference

   Communication cable shielding shall adopt single-end grounding. Two-side grounding will induce loop current and interfere signal transmission inside SIS safety racks.

4. ESD Damage Risk

   Wear anti-static wrist strap before touching circuit boards. Static discharge under low humidity environment can permanently damage internal communication chips.

5. Rack Power Load Calculation

   Add power consumption of newly inserted CIM module into total rack load. Reserve more than 20% power margin to avoid unstable power supply under full load.

Quick Conclusion

• Main usage: Gateway for Tricon SIS connecting external DCS, HMI and SCADA
• Core advantage: Native TMR matching, SIL3 certification, support hot swap without system shutdown
• Suitable industries: Petrochemical, thermal power, natural gas ESD safety control
• Not recommended: Non-Tricon Tricon system transformation projects
• Inventory reminder: Original manufacturing discontinued, stock quantity limited

FAQ

1. Can CIM3211S2 directly replace CIM3211?

   Physical installation size is consistent, but confirm firmware compatibility and communication parameter configuration before replacement.

2. Does this module support redundant communication network configuration?

   It supports redundant network layout based on project configuration, subject to TRISTATION engineering settings.

3. Can you supply test reports before shipment?

   Yes. We can provide on-bench test records and photos after inspection.

4. What warranty term is available?

   12-month standard warranty starts from delivery date.
