Description

Product Core Brief

Model: 5SHY4045L0006 (3BHB030310R0001) + GVC736CE101 (3BHE039203R0101)
Brand: ABB
Series: ACS6000 Medium Voltage Drive PEBB (Power Electronic Building Block) Assembly
Core Function: High-power switching, gate drive control and fault protection for medium voltage three-level converters
Type: Integrated IGCT Semiconductor + Gate Driver Board Assembly
Condition: New Surplus, not refurbished
Key Specs: 4500 V rated voltage; Press-pack IGCT packaging; Fiber-optic signal communication; Water cooling compatible

⚠️ Original production discontinued, limited surplus inventory available

Product Introduction

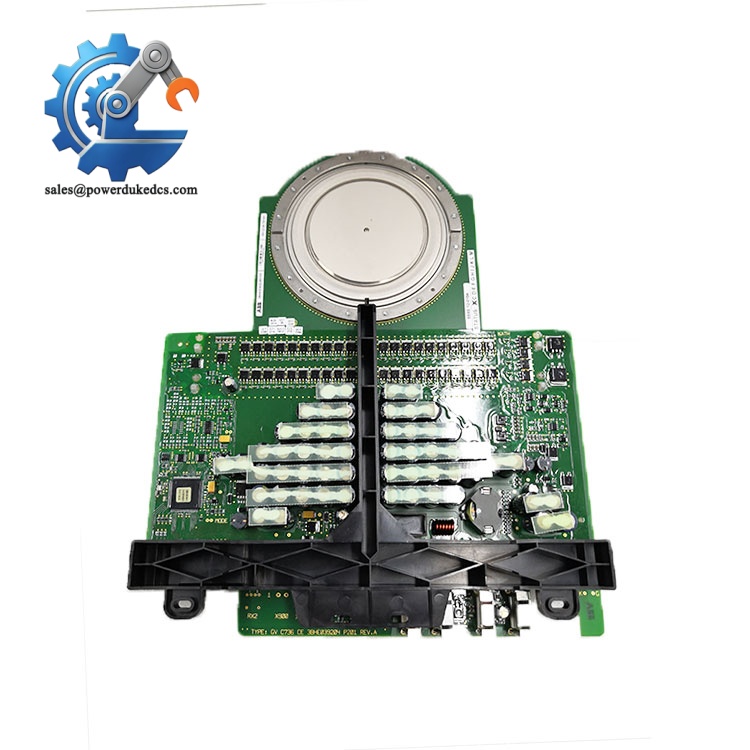

Unplanned downtime of medium voltage drives brings massive losses to rolling mills and mining main motor systems. The combined assembly of ABB 5SHY4045L0006 (3BHB030310R0001) and GVC736CE101 (3BHE039203R0101) forms a complete PEBB unit for ACS6000 converters. The 5SHY4045L0006 is an asymmetric press-pack IGCT, acting as the power switching core. The matched GVC736CE101 gate board delivers drive pulses, monitors semiconductor status and triggers protection signals.

Compared with older IGCT combinations, this assembly achieves snubberless turn-off capability to simplify converter cabinet layout. It supports continuous heavy-load operation within -10 °C to +60 °C. All signal transmission adopts fiber optics, effectively isolating high-power circuit interference, which greatly reduces false fault alarms in strong electromagnetic industrial environments.

Key Technical Specifications

Item	Parameter
IGCT Part Number	5SHY4045L0006 / 3BHB030310R0001
Gate Driver Part Number	GVC736CE101 / 3BHE039203R0101
Applicable System	ABB ACS6000 Medium Voltage Drive
Semiconductor Type	Asymmetric Press-Pack IGCT
Rated Blocking Voltage	4500 V
Cooling Method	Water cooling (standard cabinet design)
Communication Interface	Fiber optic drive signal
Gate Board Power Supply	24 V DC auxiliary power
Core Functions	Power switching, gate triggering, overcurrent monitoring, fault feedback
Operating Ambient Temp	-10 °C ~ +60 °C
Assembly Form	PEBB single-phase leg unit
Warranty	12 months after shipment

ABB IGCT Assembly 5SHY4045L0006 GVC736CE101

Strict QC Testing Process

Incoming Visual & Trace Inspection

Verify serial number consistency of IGCT chip and driver board. Check press-pack surface for deformation, PCB circuit board corrosion, component peeling and scratch marks. Confirm complete factory identification labels.
ESD Protection Setup

All testing procedures are implemented on anti-static workstations. Operators wear ESD wrist straps to avoid electrostatic damage to sensitive gate circuits.
Bench Integrated Live Test

Install the complete assembly on dedicated ACS6000 simulation test rack. Complete power-on self-test, fiber communication handshake, pulse signal verification and 24-hour continuous aging test. Test photos and videos can be provided upon request.
Electrical Performance Test

Test insulation resistance of IGCT device, stability of gate drive output, and fault signal response speed. All measured data will be recorded in formal test documents.
Hardware Configuration Confirmation

Check component layout and jumper settings on GVC736CE101 board. Record hardware configuration for customer reference during on-site installation.
Final Packaging & QC Marking

Qualified assembly is protected with anti-static shielding bags, wrapped with shock-resistant bubble film and packed into cartons. Each set attaches a QC Passed label with test date.

Field Installation Risk Guide

❗ Mismatched assembly pairing

Do not randomly match IGCT chips and gate driver boards. Each 5SHY4045L0006 has matching electrical parameters with GVC736CE101. Improper pairing leads to unstable turn-off performance or direct device burnout. One typical case: maintenance engineers mixed different batches of IGCT and driver boards, triggering repeated drive unit faults after power-on.

❗ Fiber optic connection failure

Dirty fiber optic heads or loose connectors are the top cause of drive communication faults. Clean fiber end faces with special wiping paper before installation. Avoid bending fiber cables beyond minimum bending radius.

❗ Cooling system inspection

This PEBB unit relies on water cooling. Check pipeline sealing and water quality before commissioning. Water leakage or scaling will cause over-temperature shutdown and accelerate semiconductor aging.

❗ Incorrect 24V auxiliary wiring

Reversed polarity of gate board 24V DC power supply immediately damages the drive circuit. Double-check wiring polarity before power supply switch-on.

❗ Press-pack clamping force control

The IGCT press-pack device requires specified clamping torque. Too loose leads to excessive thermal resistance; over-tight pressure causes permanent mechanical damage to the semiconductor chip.

❗ Static hazard during maintenance

Never touch PCB components or IGCT terminals without anti-static protection. Dry workshop environments raise ESD risks, which can cause invisible internal chip damage.

Quick Conclusion

5SHY4045L0006 (3BHB030310R0001) + GVC736CE101 (3BHE039203R0101) is the complete PEBB power assembly for ABB ACS6000 medium voltage drives.
Original manufacturing has stopped; available inventory consists of new surplus assemblies.
Confirm matching IGCT and driver set; random cross-matching is not allowed.
Every full set undergoes integrated bench testing before delivery; test materials are available on request.
Strictly follow specified clamping torque, cooling requirements and ESD operation rules during on-site replacement.

FAQ

Q1: Can this assembly be directly used on all ACS6000 variants?

A1: Compatibility depends on converter cabinet hardware revision and control firmware. Provide your unit serial number for pre-verification.

Q2: Can I buy the IGCT chip and driver board separately?

A2: Separate supply is available, yet we recommend matched complete assembly to avoid parameter mismatch risks.

Q3: Does the unit support hot swap?

A3: Hot swap is not supported. The converter must be fully powered off and discharged before disassembly.

Q4: What is included in standard package?

A4: Complete IGCT + gate driver assembly in anti-static package. Independent test report can be provided on request.
