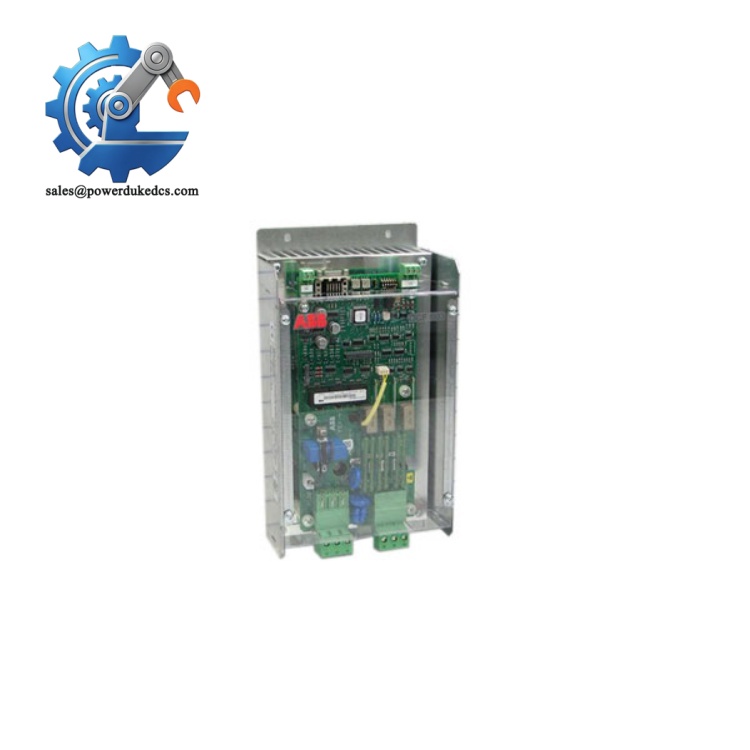

ABB DCF803-0035 Direct Replacement Excitation Unit For ABB DCS Series Drives

Improper field excitation regulation causes DC motor speed drift, torque instability and unexpected drive alarms. The ABB DCF803-0035 is a dedicated field exciter module designed for ABB DCS800 and DCS880 series DC variable speed drives.

It integrates independent synchronization and closed-loop current control circuits. The unit automatically scales current measurement based on motor field parameters. It supports both single-phase and three-phase input wiring modes for flexible field retrofit scenarios. All operational status and fault data transfers to the main drive via internal serial communication for centralized monitoring. Field-proven across metallurgy, paper and heavy industrial DC drive systems.

⚠️ Always fully power down the DC drive system and wait 5 minutes for capacitor discharge before replacement. Live wiring will trigger short-circuit risks.

Prepare ESD protection tools, insulated screwdrivers and a digital multimeter. Take photos of existing terminal wiring and jumper settings on the old module. Record original field current parameters and operation mode (single or three-phase) for post-install matching. Back up all drive parameter sets to avoid configuration loss.

Label all AC input and DC field output cables clearly. Loosen terminal screws and detach wires one by one.

Remove fixed mounting screws and take out the old exciter module. Clean internal dust from the installation cavity with dry compressed air. Check terminal blocks for oxidation or loose contact points.

Release static charge before unpacking the new DCF803-0035 unit. Confirm model compatibility with the on-site DCS drive model.

Mount the module securely and restore all wiring per recorded photos. Set operating mode to match site power supply (single-phase or three-phase). Adjust internal burden resistors according to motor rated field current. Double-check all terminal tightening torque.

Verify no wiring errors or short circuits with a multimeter before power restore.

Power on the drive system and check module status indicators. Enter drive parameter menu to confirm exciter online status. Run field current calibration to match motor nameplate values. Perform no-load and low-load operation tests to verify stable excitation output. Maintain 60 minutes continuous running observation with no excitation faults. Update equipment maintenance logs.

All stocked DCF803-0035 modules undergo full industrial-grade functional testing.

Complete source verification and visual inspection first. Check housing, terminals and circuit boards for no scratches, burn marks or rework traces.

Bench testing uses standard ABB DCS880 drive test platforms. Execute power-on self-test, communication handshake verification and full-range field current output simulation. 24-hour continuous aging test screens intermittent operational faults.

Electrical tests include insulation resistance testing and terminal continuity inspection. All default mode settings and internal resistor configurations are fully documented.

Qualified units are sealed with anti-static packaging and labeled with QC pass certification. Test reports and operation videos are available upon request.

❗ Wrong Operation Mode Setting

Single-phase and three-phase modes require different terminal wiring. I have seen site cases where mismatched mode settings caused constant excitation overcurrent alarms. Always confirm local incoming power configuration before setup.

❗ Mismatched Burden Resistor Settings

Incorrect resistor configuration leads to inaccurate current sampling and unstable motor torque. Resistor values must match the motor’s rated field current. Default factory settings do not fit all field motors.

❗ Unrecorded Original Parameters

New modules load factory default values. Simply swapping hardware without parameter migration leads to speed fluctuation and protection tripping. Back up original excitation parameters before removal.

❗ Hidden ESD Damage

Internal SDCS-FEX-4 control boards are sensitive to static discharge. Dry workshop environments easily cause invisible chip damage. ESD protection is mandatory during all handling steps.

❗ Loose Terminal Connection

Vibration in industrial environments amplifies loose wiring faults. Poor terminal contact causes intermittent excitation dropout and motor shutdown. Re-tighten all terminals after installation.

Following these checks eliminates most post-replacement drive debugging issues.

1. What drive models support DCF803-0035?

It fully matches ABB DCS800 and DCS880 series DC drives. It serves as a standard factory excitation accessory for these platforms.

2. Can this module work for both single-phase and three-phase power supply?

Yes. It supports dual operation modes. Adjust terminal wiring and internal resistor settings to switch modes based on on-site power conditions.

3. Does module replacement require drive parameter recalibration?

Yes. New units use factory defaults. You need to recalibrate field current sampling and restore original control parameters to ensure stable motor operation.

4. What are common failure signs requiring replacement?

Typical faults include excitation loss alarms, unstable field current output, drive communication failure and consistent motor speed fluctuation.

5. Is hot-swap replacement allowed during drive operation?

No. Field excitation interruption during running status will cause motor trip. Only perform replacement during full system shutdown.

6. What are the stocking strategy and warranty terms?

This is an end-of-life component. We maintain 1–2 units of safety buffer stock for emergency MRO use. JIT restock applies to reduce holding costs. All units come with 12-month industrial warranty and remote technical support.
