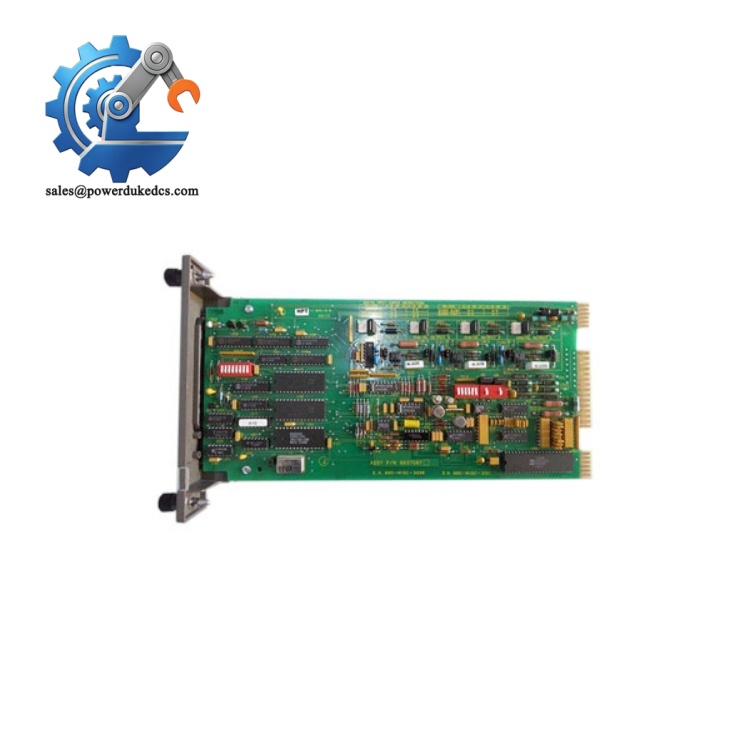

ABB IMHSS03 Rack Mount Servo Module Supports Auto Demodulator Gain Tuning

Turbine valve hunting or position deviation can trigger unit trip events in thermal power plants. The ABB IMHSS03 acts as a dedicated hydraulic servo interface module designed for Bailey INFI 90 distributed control platforms.

It connects multi-function processor modules (IMMFP series) to servo valves and LVDT position sensors to implement precise valve position closed-loop regulation. Compared with earlier IMHSS01 and IMHSS02 variants, this unit supports automatic demodulator gain adjustment for more stable loop response. It has decades of field verification on steam and gas turbine governor systems across power generation facilities.

⚠️ Critical safety reminder: Turbine control loops must be blocked and the unit secured before any replacement. Unplanned valve movement poses severe safety risks.

Prepare ESD wristband, PH1 screwdriver, digital multimeter and mobile phone. Back up all control logic and function code settings in the MFP processor. Take clear photos of DIP switch positions on IMHSS03, wiring layout on NTHS03 termination unit and field LVDT cables. Record existing servo loop gain parameters for post-replacement tuning reference.

Unlock the module faceplate thumbscrews. Pull the module straight outward to avoid bending backplane gold pins.

Check the MMU rack slot for dust and oxidation. Clean the slot contacts using dry compressed air. Keep all termination unit wiring labels intact; do not disconnect field cables from NTHS03 unless necessary.

Release static charge before unpacking the hardware. Confirm model IMHSS03 matches site requirements.

Set DIP switches strictly according to photos taken from the original module. Insert the module vertically into the target rack slot and lock the front thumbscrews. Confirm the ribbon cable linking IMHSS03 and NTHS03 is securely plugged in.

Download the saved function code configuration to the corresponding MFP processor. Prepare for LVDT calibration and servo loop tuning after power restoration.

Check rack power supply voltage before powering on the module. Observe LED status after power is applied.

Solid green status LED indicates normal module startup. Run LVDT zero and span calibration via engineering workstation. Fine-tune servo loop gain to eliminate valve oscillation.

Execute full valve stroke test to verify tracking between demand signal and actual position. Maintain continuous monitoring over 60 minutes without loop alarms or hunting. Update plant maintenance logs with new module serial number.

All stocked IMHSS03 modules pass comprehensive industrial testing to meet power plant safety control standards.

Carry out source traceability verification first. Inspect module appearance for no scratches, solder repair marks or component aging.

Live bench testing uses complete INFI 90 test racks with IMMFP processor and NTHS03 termination unit. Complete power-on self-test, bus communication verification, LVDT signal demodulation test and servo output simulation. Continuous 24-hour aging monitoring captures unstable operation risks.

Electrical testing includes 500V insulation resistance test and continuity inspection. All switch configuration states and default parameters are documented.

Qualified modules are sealed in anti-static packaging with QC Pass labels. Test photos and records can be provided on request.

❗ DIP Switch Configuration Deviation Risk

Factory default DIP settings rarely match site servo loop parameters. Using unadjusted new modules directly causes valve oscillation or position tracking errors. I witnessed one power plant case where mismatched switch settings led to three hours of on-site tuning work. Always replicate switch settings from the original unit.

❗ Calibration Loss After Module Swap

Replacing IMHSS03 clears stored LVDT calibration data. Simply downloading control logic cannot restore zero and span parameters. Calibration must be performed on-site after every replacement.

❗ Compatibility Misjudgment

IMHSS03 can replace IMHSS01 and IMHSS02, but reverse replacement is not supported. Older modules lack auto gain tuning functions. Confirm upgrade direction before ordering spare units.

❗ Hidden ESD Damage

Signal processing circuits for LVDT are sensitive to static electricity. Dry cabinet environments increase risks of invisible hardware damage. Wear ESD protection during all handling procedures.

❗ Termination Unit Cable Connection Error

Incorrect ribbon cable pin alignment between IMHSS03 and NTHS03 leads to complete loss of feedback signals. Match cable marking strictly to wiring diagrams.

Following these checks prevents unexpected turbine control loop faults after module replacement.

1. Can IMHSS03 directly replace IMHSS01 and IMHSS02?

Yes, it provides form-fit-function compatibility. You still need to copy DIP switch settings and redo LVDT calibration after installation.

2. Is hot-swap operation allowed during unit running?

Hardware supports hot plugging, but loss of servo control will cause valve position runaway. For turbine governor loops, only perform replacement during scheduled unit shutdown.

3. What stock and warranty terms apply?

We maintain limited emergency stock for discontinued INFI90 turbine control spare parts. Goods ship within 1–3 working days. All units carry a 12-month industrial warranty and remote technical guidance.

4. Typical faults requiring IMHSS03 replacement?

Common failure signs include persistent FAULT LED alarm, inability to detect LVDT signals, unstable servo output, loop tracking deviation and module unrecognized by MFP processor.

5. Will replacement affect the MFP controller program?

Control logic stored in the MFP processor remains unchanged. Only servo loop calibration parameters and module hardware configuration require rework after replacement.

6. Can you provide support for on-site calibration guidance?

Yes. We supply pre-shipment test records. Technical staff can offer remote guidance for LVDT calibration, loop gain tuning and fault diagnosis after delivery.
