ABB PFEA113-20 (3BSE050092R20) is a professional tension electronics module supporting 4 load cell inputs and Profibus-DP communication. Equipped with onboard display and multi I/O ports, new surplus in stock with full pre-shipment testing and 12-month warranty for web and rolling process industries.
Product Core Brief
-
Brand: ABB
-
Core Function: Collects load cell signals and executes precise web tension closed-loop control
-
Key Specs: 4 load cell inputs; Profibus-DP communication; Integrated data display; Multi configurable I/O
⚠️ Discontinued original production, limited inventory in stock. Firmware version matching is required for on-site replacement.
Unstable tension control directly causes material wrinkling, deviation and finished product defects in continuous rolling production. The ABB PFEA113-20 3BSE050092R20 is a dedicated tension electronics module designed for web processing industries. It acquires real-time tension data from load cells and outputs adjustable control signals to maintain consistent material tension.

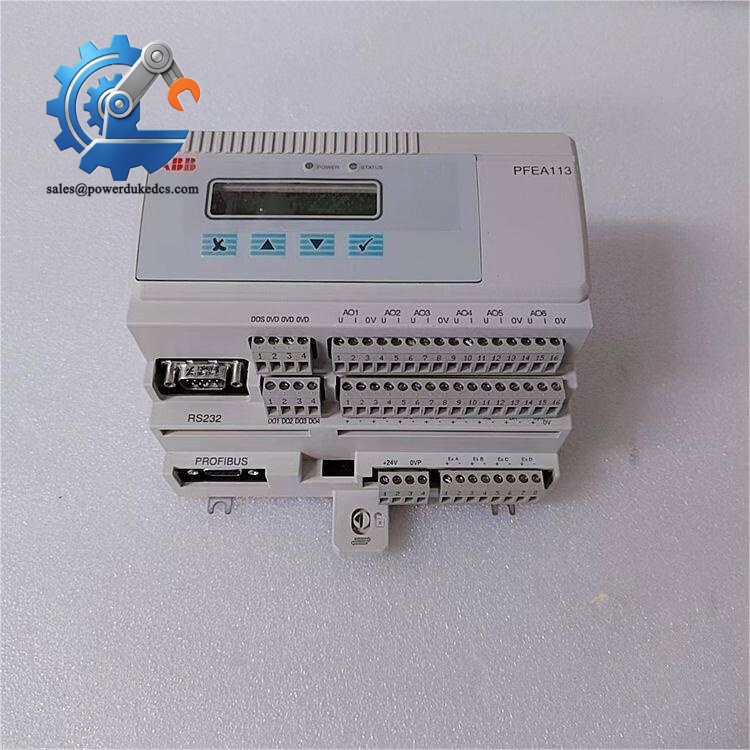

ABB PFEA113-20 3BSE050092R20
Key Technical Specifications
QC Testing SOP
Verify the full part number, serial number and factory packing documents for complete source traceability. Check the module housing, display screen and terminal ports for scratches, aging or disassembly traces. Confirm supporting accessories and factory certificates are complete before warehousing.
We adopt ABB standard tension control test platform for overall verification. Complete power-on self-test and display screen detection. Simulate 4-channel load cell signal input to verify data collection accuracy. Conduct Profibus-DP communication handshake test and 24-hour continuous aging operation. Test videos and photos can be provided for customer confirmation.
Use Fluke 115 multimeter for 500V insulation resistance testing to ensure data higher than 10 MΩ. Test power supply circuit stability and internal continuity. Verify all analog and digital I/O ports respond normally within factory standard ranges.
Read and record the original factory firmware version. Backup default communication parameters and I/O configuration settings. Adjust firmware version or restore factory settings according to customer on-site system matching requirements.
Professional inspector confirms all test items pass. Seal the module with anti-static bag, wrap with bubble film and pack in thickened cartons. Paste QC Passed label with inspection date for traceable delivery.
❗ Firmware Version Mismatch Risk
❗ Load Cell Wiring Channel Misalignment
❗ Onboard I/O Function Misconfiguration
❗ Profibus-DP Address Conflict
❗ ESD Static Damage During Operation
Quick Conclusions
2. It integrates display and multi-I/O design, supporting Profibus-DP bus connection for convenient system docking.
4. All stocked units pass 24-hour aging and full function testing, with test records available for verification.
FAQ
Direct blind replacement is not feasible. The channel quantity and firmware protocols are different. System parameter debugging and bus configuration are required after replacement.
Yes. We can complete firmware matching, bus address setting and I/O function configuration according to your on-site system parameters.
We provide a standard 12-month warranty starting from the delivery date.
We support full function power-on testing and can provide test videos and electronic test reports before shipment.
It is widely applied in paper making, textile, film and metal foil industries for real-time tension monitoring and closed-loop control of rolling materials.
