Description

ABB REF615 HCFKAEADABCZDAA11E | Integrated Directional Overcurrent & Earth Fault Protection, Multi-Shot Auto-Reclose

Meta Description

ABB REF615 HCFKAEADABCZDAA11E belongs to ABB Relion 615 series, a draw-out feeder protection and control IED designed for medium voltage overhead lines and cable feeders. It delivers comprehensive fault protection, circuit breaker control, power measurement and disturbance recording. Every unit undergoes complete bench testing. OEM manufacturing continues, limited stocked spare units available for urgent replacement.

Product Core Brief

Model: REF615 HCFKAEADABCZDAA11E
Brand: ABB
Series: Relion® 615 Series Feeder Protection IED
Core Function: Implement feeder fault protection, circuit breaker control, electrical measurement and substation supervision
Type: Numerical Draw-out Protection Relay (IED)
Key Specs: Directional overcurrent & earth fault protection, IEC 61850, draw-out pluggable unit, built-in fault waveform recorder

Condition: Bench-tested surplus stock, fully function verified

⚠️ Full ordering code HCFKAEADABCZDAA11E must match for direct replacement; partial model REF615 cannot guarantee compatibility

Product Introduction

Medium voltage distribution networks require flexible, reliable protection to isolate short-circuit and earth faults quickly. The ABB REF615 HCFKAEADABCZDAA11E is a standard configuration feeder IED built for utility substations and industrial power distribution systems. It works with radial, looped and meshed networks, supporting both cable and overhead feeder applications.

Its draw-out mechanical design simplifies maintenance. The internal CT shorting mechanism prevents open-circuit hazards when extracting the main unit. Compared with basic protection relays, this ordering variant supports multi-shot auto-reclosing, sensitive earth fault detection and sequence-of-event recording. It seamlessly integrates into modern digital substations via IEC 61850 communication, compatible with PCM600 configuration software for parameter commissioning and fault analysis. Operating range spans −40 °C to +70 °C to adapt to indoor and outdoor panel environments.

Key Technical Specifications

Parameter	Specification
Full Order Code	REF615 HCFKAEADABCZDAA11E
Product Family	Relion® 615 Series Feeder Protection IED
Hardware Form	Draw-out pluggable unit, integrated CT shorting function
Main Protection Functions	Directional / Non-directional phase overcurrent, earth fault protection, thermal overload, breaker failure protection, multi-shot auto-reclose
Analog Input	Programmable 1 A / 5 A CT secondary current
Communication Protocols	IEC 61850 Ed.1/Ed.2 (GOOSE), Modbus TCP, DNP3, SNTP time synchronization
Data Recording	Fault recorder, disturbance waveform recorder, sequence of events (SER)
HMI	Front graphical LCD with customizable single-line diagram display
Operating Temperature	−40 °C ~ +70 °C; Storage: −40 °C ~ +85 °C
Front Panel Protection Class	IP54; Terminal side IP20
Configuration Tool	PCM600 Protection and Control IED Manager
Mounting Options	Flush mounting, semi-flush, 19-inch rack mounting
Weight	Approx. 3.8 kg

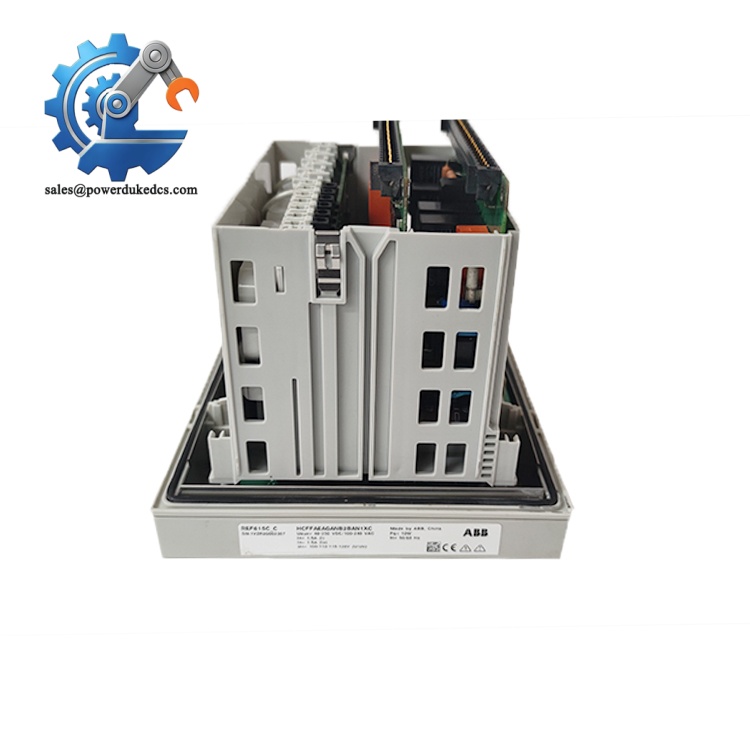

ABB REF615 HCFKAEADABCZDAA11E

Quality Control Process

Inbound Traceability & Visual Inspection

Check full ordering code, serial number and hardware revision label. Inspect housing, front display, terminal connectors for cracks, scratches or corrosion. Confirm no signs of previous improper repair. Record hardware revision for compatibility verification.
Live Bench Functional Test

Install the IED on dedicated ABB REF615 test bench. Complete power-on self-test, front HMI operation verification, analog signal simulation, binary input/output loop test and continuous 24-hour aging test. Simulate typical fault conditions to validate protection trip logic. All test data and fault records are archived.
Electrical Performance Testing

Verify CT input response, binary threshold stability, communication link connectivity. Check all LED indicators and alarm signal outputs. Confirm internal waveform recording function works normally under simulated faults.
Firmware & Configuration Recording

Read and record installed firmware version. We can cross-check compatibility with your existing substation system firmware before shipment upon request.
Final QC & Anti-Static Packaging

QC engineer signs off all passed test items. The IED is packed with anti-static shielding, shock-resistant foam and export reinforced carton. A QC Passed label marked with test date is attached. Test photos or video records can be provided on demand.

Field Replacement Pitfall Guide

❗ Full Order Code Matching Risk

REF615 has hundreds of ordering variants. Only exact match HCFKAEADABCZDAA11E ensures identical I/O layout, protection function set and communication hardware. Using another REF615 variant will cause missing functions, incorrect terminal definition or communication failure.

Tip: Copy the complete ordering string printed on the original unit label before placing orders.

Case Reference: A chemical plant replaced REF615 with a similar ordering variant without checking suffix codes; auto-reclose function failed to activate, leading to one day of feeder commissioning delay.

❗ CT Safety Operation During Replacement

Always confirm feeder de-energization before extracting the draw-out unit. Although the unit has built-in CT shorting contacts, long-term aging may cause contact degradation. Do not rely solely on internal shorting for live-panel operations.

❗ Parameter Backup Before Hardware Swap

All protection settings, signal matrix logic and single-line diagram data are stored inside the IED. Export complete configuration files via PCM600 before removal. Manual parameter rewriting creates high risk of setting errors.

❗ Communication Network Configuration Consistency

Record IP address, GOOSE control blocks and time synchronization settings. Mismatched network parameters will disconnect the relay from substation SCADA after replacement.

❗ ESD Protection Requirements

Internal CPU and signal processing circuits are sensitive to static electricity. Wear anti-static wristband during handling. Dry workshop environments increase risk of hidden electrostatic damage to mainboard chips.

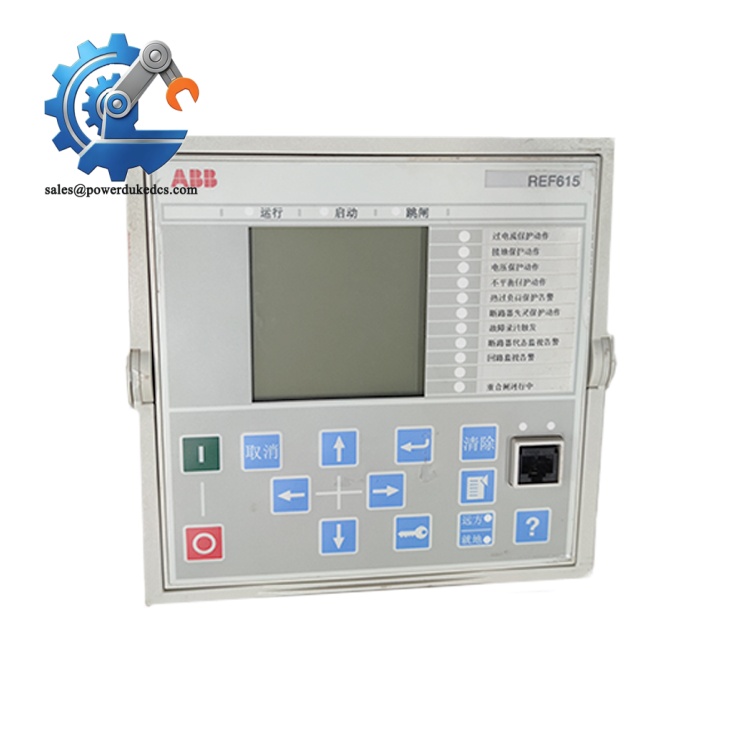

ABB REF615 HCFKAEADABCZDAA11E

Quick Conclusion

ABB REF615 HCFKAEADABCZDAA11E is a draw-out feeder protection IED for medium voltage cable and overhead feeders in industrial and utility distribution networks.
Core advantages: comprehensive protection function library, pluggable draw-out design, native IEC 61850 digital substation support.
Exact full ordering code matching is mandatory for direct drop-in replacement.
Stocked spare units are bench tested before shipment; delivery lead time depends on inventory availability.
Complete test reports can be provided for engineering acceptance requirements.

FAQ

Q1: Can I use another REF615 ordering code to replace HCFKAEADABCZDAA11E?

A1: Not recommended. Different ordering codes correspond to different I/O modules, available protection functions and communication hardware. Mismatched variants require modification of wiring and configuration.

Q2: What software do I need to commission this IED?

A2: ABB PCM600 is the official configuration tool, used for setting protection parameters, downloading logic and retrieving fault records.

Q3: Does this relay support arc fault protection?

A3: This specific ordering variant does not include arc fault detection function. If arc protection is required, select dedicated REF615 variants with arc sensor support.

Q4: What warranty terms apply?

A4: 12-month warranty after delivery, covering functional defects under standard operating environment. Damage caused by incorrect wiring, static discharge, overvoltage surge or unauthorized disassembly is excluded.
