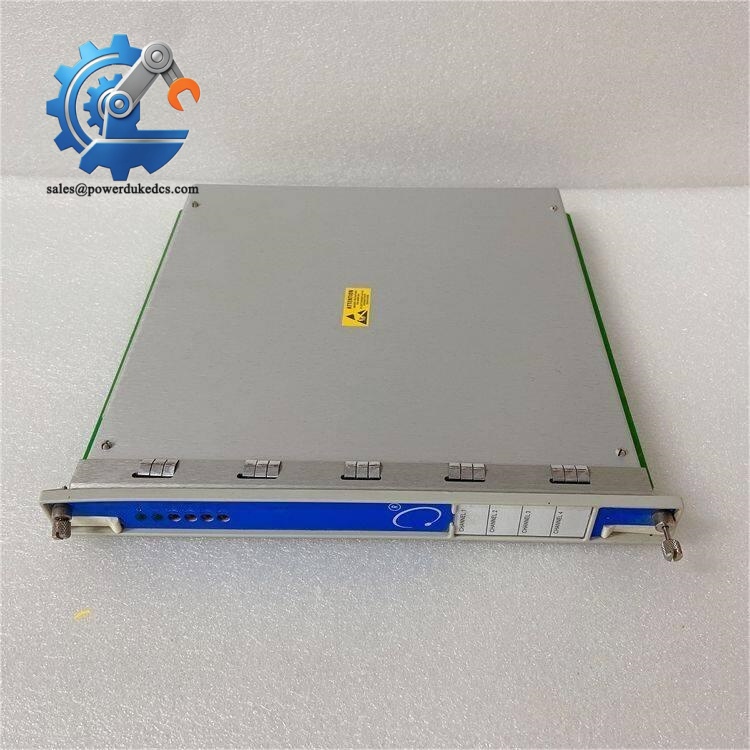

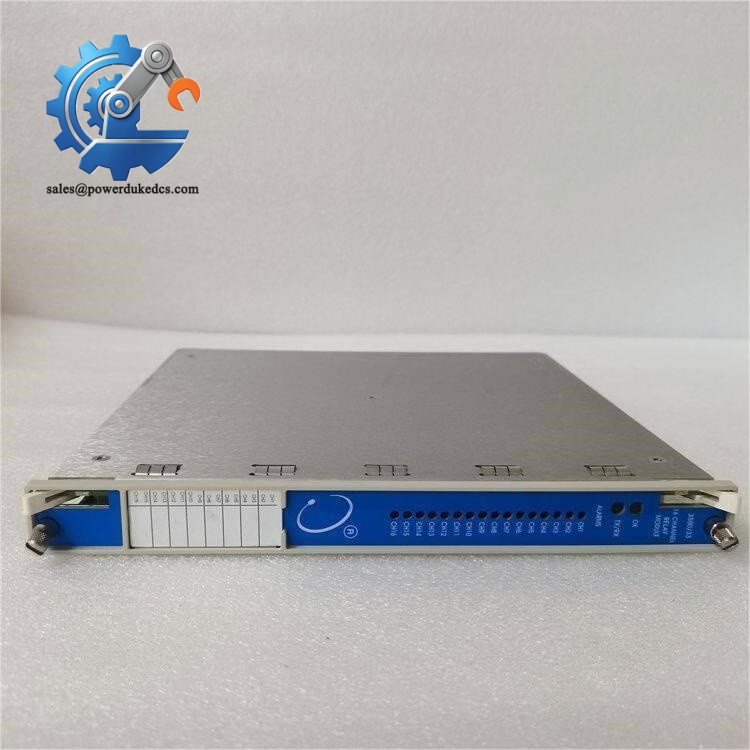

1. Bently Nevada 3500/70 140471-01 | Genuine Machinery Condition Monitor for Oil & Gas Industry

Product Core Brief

• Model: 3500/70 140471-01
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Core Function: Real-time monitoring of reciprocating compressor mechanical faults
• Type: Reciprocating Compressor Monitor Module
• Key Specs: 4 measurement channels; Two programmable alarm levels per channel; Backplane 24V DC power supply Condition: New Surplus, not refurbished ⚠️ This model is phased out by original manufacturer, limited stock available.

Product Introduction

Unplanned trips of reciprocating compressors on gas pipelines can trigger costly production shutdowns. The Bently Nevada 3500/70 140471-01 serves as dedicated monitoring hardware built into the 3500 rack platform to avoid such risks.

This module collects signals from field sensors to track rod drop, crosshead acceleration and impact vibration on reciprocating equipment. Compared with general vibration monitors, it runs dedicated signal processing algorithms optimized for reciprocating motion. It supports independent Alert and Danger thresholds for each channel, and outputs relay trigger signals to implement machine protection, meeting API 670 industry requirements for critical rotating and reciprocating assets.

Key Technical Specifications

Bently Nevada 3500/70 140471-01

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated: 10 minutes)

⚠️ Safety Reminders

1. Coordinate with operation team to schedule planned shutdown.
2. Shift related equipment to safe status, stop all reciprocating compressors.
3. Cut off power to the whole 3500 rack, including UPS power supply.
4. Wait no less than 5 minutes for internal capacitors to fully discharge.

Tools to prepare

• Anti-static wrist strap and anti-static mat
• PH1 cross screwdriver
• Digital multimeter
• Mobile phone for photo recording
• Label marker for wiring marking

Backup work

• Export complete rack configuration file via 3500 Configuration Software, save locally and cloud storage.
• Take clear photos of original module wiring terminals and module slot position.

Phase 2: Remove Old Module (Estimated: 12 minutes)

1. Confirm rack power remains disconnected.
2. Unplug external terminal wiring one by one, mark each wire number according to photos.
3. Loosen the locking screws on both sides of the module front panel.
4. Pull the module horizontally outward. Do not twist, to avoid bending backplane pins.
5. Inspect the backplane connector. Blow away dust with dry compressed air if dirt accumulates.

⚠️ Do not pull cables forcibly. Damaged sensor wiring will cause signal loss after replacement.

Phase 3: Install New Module (Estimated: 15 minutes)

1. Wear anti-static wrist strap before taking the new module out of anti-static bag.
2. Double-check part number: confirm 3500/70 140471-01 matches the original spare requirement.
3. Insert the module horizontally into the reserved rack slot, push gently until the front panel fits tightly with rack frame.
4. Tighten front panel locking screws evenly. Do not over-tighten.
5. Restore field wiring strictly following photos and labels. Keep terminal torque consistent.

Self-check checklist [ ] Module part number verified [ ] All sensor wires connected to correct terminals [ ] Module fixed without loose [ ] No leftover tools inside rack

Bently Nevada 3500/70 140471-01

Phase 4: Power-On & Functional Test (Estimated: 25 minutes)

Pre-power inspection

• Measure rack backplane voltage, confirm stable 24 V DC.
• Check no short circuit between power lines.

Power-on steps

1. Switch on rack power only, keep field equipment offline temporarily.
2. Observe front panel LED: steady green OK light means normal startup. Flashing red ERR indicates hardware or configuration mismatch.
3. Connect PC with 3500 configuration software, scan rack and identify the new module.
4. Load the backed-up configuration file and download to the rack.
5. Activate monitor channels, simulate sensor signals to verify alarm trigger logic.
6. Maintain continuous running for over 30 minutes, confirm no abnormal alarms.

Troubleshooting hints

• Communication failure: Check if module slot position matches original configuration.
• Persistent ERR alarm: Confirm firmware compatibility between rack chassis and monitor module.
• No signal reading: Recheck sensor wiring and terminal tightness.

Frequently Asked Questions (FAQ)

1. Can I hot-swap the 3500/70 module without shutting down the rack? Hot swap is not recommended for this monitor module. Even if the rack supports partial hot swap, sudden signal interruption may trigger protection shutdown of reciprocating compressors. Plan power cut replacement during maintenance window to avoid accidental trips.
2. Does 140471-01 work with all versions of 3500 rack chassis? Compatibility depends on chassis firmware. We have seen cases where new spare modules cannot be recognized by old racks. Before purchase, record the firmware version of your existing 3500 rack. We can confirm matching or assist firmware adjustment.
3. What is the difference between new surplus and refurbished 3500/70 modules? New Surplus units remain in original packaging or unused stock, complete full function test including 24-hour aging test. Refurbished products have used traces and limited testing scope. We clearly label product condition for every unit. All supplied modules come with 12-month warranty.
4. Can this module monitor centrifugal turbines as well? It can receive vibration signals, but its internal algorithm is optimized for reciprocating compressors. For centrifugal rotating equipment, choose 3500/42M proximity monitor instead for better measurement accuracy.
5. How long will delivery take after order confirmation? Most stock items can be shipped within 1–3 working days from Xiamen warehouse. If stock runs short, we can arrange last-time sourcing; lead time will be notified in advance before order confirmation.
6. Will you provide test reports for the module before shipment? Yes. After functional testing, we supply test screenshots. We can also record short testing video for customer verification upon request.
