Emerson 5X00846G01 | Genuine OEM Ovation DCS Spare I/O Module

Product Core Brief

Model: 5X00846G01
Brand: Emerson (Westinghouse Ovation)
Series: Ovation Distributed Control System (DCS)
Core Function: Collect binary status signals from field equipment and transmit data to Ovation controller
Type: Digital Input Module (DI Module)
Key Specs: 16 isolated channels | 24–125 VAC/DC wide input range | Hot-swappable
Condition Note: New Surplus, non-refurbished

⚠️ Ovation classic I/O hardware is legacy product; original factory lead time is extended, spare stock quantity limited.

Key Technical Specifications

Parameter	Details
Part Number	5X00846G01
Channel Configuration	16 galvanically isolated digital input channels
Field Input Range	24 VDC ~ 125 VDC / 24 VAC ~ 125 VAC
Channel Isolation	500 V RMS between channel-to-channel and channel-to-backplane
Hot Swap Support	Yes; module replacement without rack power cut-off
Onboard Indicator	Independent LED status indicator for each channel
Backplane Interface	Ovation proprietary rack backplane bus
Operating Temperature	-40 °C ~ +70 °C
Relative Humidity	5% ~ 95% RH, non-condensing
Protection Class	IP20 (for indoor rack installation)
Mechanical Form Factor	Standard Ovation half-size I/O module

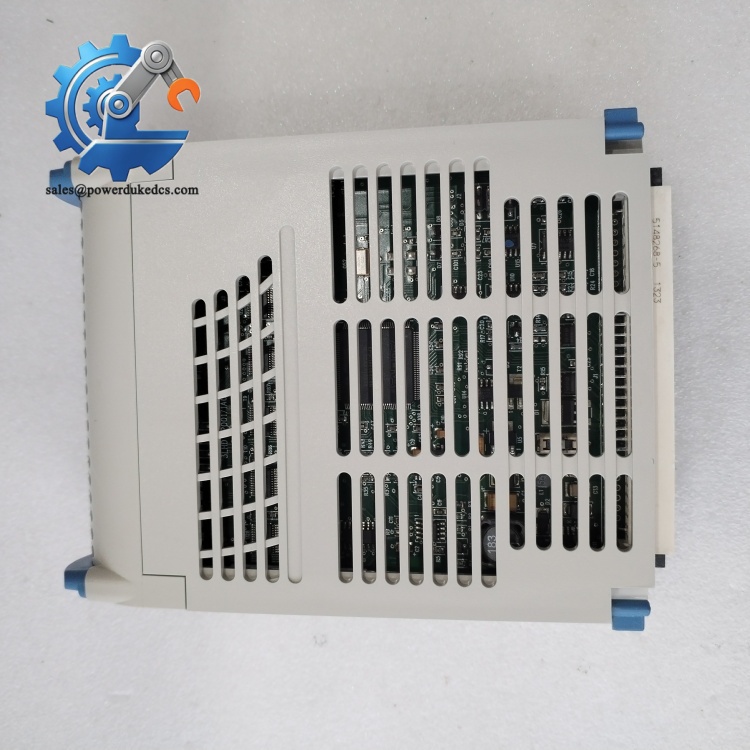

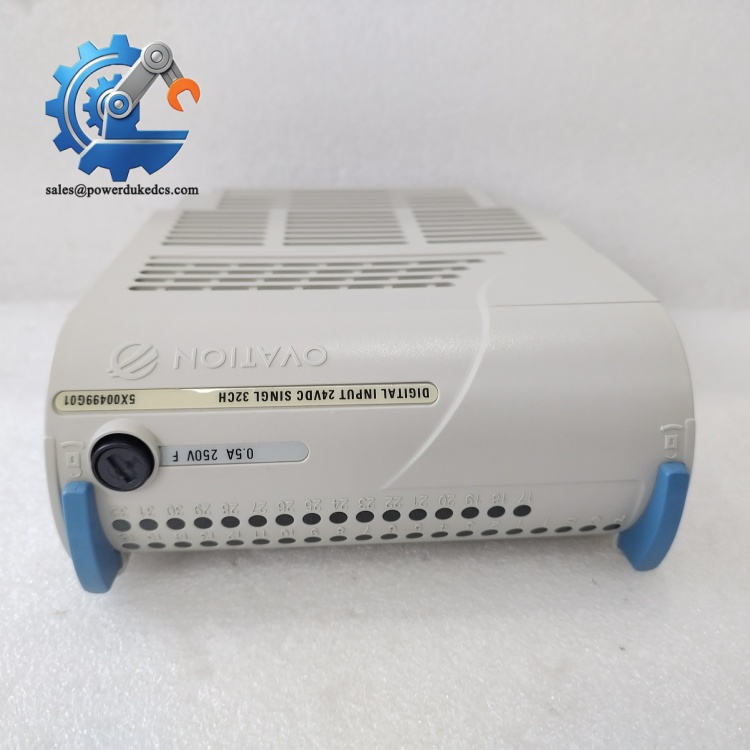

Emerson 5X00846G01

Product Introduction

Emerson 5X00846G01 is a 16-channel isolated digital input module designed exclusively for the Ovation DCS platform. It acquires discrete on/off signals from site field devices such as limit switches, relay contacts and circuit breakers, then converts raw field signals into digital data recognizable by Ovation controllers.

Built-in channel-level isolation effectively suppresses industrial electromagnetic interference. The hot-swappable structure allows maintenance engineers to replace faulty cards without shutting down the whole control rack. Independent channel LEDs simplify on-site fault diagnosis. This I/O module is widely deployed in power and water treatment facilities for continuous equipment status monitoring and interlock logic execution.

Application Scenarios & Pain Points

For thermal power plants and hydroelectric stations, discrete digital signals carry critical interlock information. If the DI module fails, safety interlock logic cannot receive field status feedback, which will trigger equipment protection suspension or unplanned unit trips. Many asset operators keep spare 5X00846G01 on hand to shorten emergency repair duration.

Typical Application Scenarios:

Fossil Fuel Power Plants – Boiler & turbine auxiliary monitoring

Collect switch status of feedwater pumps, induced draft fans and safety valves to support boiler protection interlock logic.
Hydropower Plants – Turbine governor and gate control

Monitor limit contact signals of intake gates, outlet valves and unit auxiliary circuits.
Water & Wastewater Treatment – Pump station SCADA system

Track running status and fault alarms of large water pumps, blowers and dosing equipment.
Cogeneration & Biomass Power Plants – Balance of Plant (BOP) control

Serve as signal acquisition front-end for auxiliary equipment monitoring racks.
District Heating Stations – Thermal network equipment monitoring

Capture valve position feedback and pump fault contact signals.

Onsite Case Reference

Last winter, a 330MW thermal power plant discovered channel failure on one 5X00846G01 DI module during weekly inspection. Multiple boiler safety valve feedback signals were lost.

The official Emerson delivery lead time reached 9 weeks. The unit could not operate long-term with incomplete safety signal collection.

Our stocked 5X00846G01 passed full bench testing and was shipped within 3 working days. Maintenance staff completed module replacement in the weekly maintenance window. After loading module configuration, all discrete signals resumed normal acquisition. The plant later added two identical modules to its critical spare parts inventory.

Compatibility & Replacement Matrix

5X00846G01 → 5X00846G01 : Direct plug-and-play replacement. Confirm hardware revision before ordering.

5X00846G01 → Older Ovation DI series 1C31xxx series : Not compatible, different backplane pin definition and hardware architecture.

5X00846G01 → Newer Ovation OCR I/O modules : Not compatible, cannot be installed on classic Ovation rack.

⚠️ Important reminder: Record the hardware revision label of the original module before purchasing. Some old Ovation controller firmware has compatibility limits for new module revisions.

Quality Control Procedure (Transparent Testing Standard)

Incoming Inspection

Serial number trace verification, original label and anti-disassembly inspection. Visual inspection for PCB corrosion, scratch marks or disassembly traces. Check locking handles and connector integrity.
Bench Functional Live Test

Test platform: Standard Emerson Ovation rack with OCC controller.

Test items: Power-on self-test, full channel signal simulation test, continuous 24-hour ageing run, LED indicator verification. Formal test report provided after testing.
Electrical Parameter Test

Insulation resistance test, isolation voltage withstand test, input threshold verification for all channels.
Hardware Confirmation

Record hardware revision code printed on module housing; store photos of label and backplane connector for archive.
Final QC & Packaging

QC inspector signature confirmation. Sealed with anti-static bag, packed with bubble film and export carton. Attached QC Passed label with testing date. Testing photos or video can be provided upon client request.

Field Installation Pitfall Guide

Hardware Revision & Firmware Mismatch

Common mistake: Installing new-revision modules into racks running outdated Ovation controller firmware. Partial channels will fail communication.

Advice: Confirm Ovation system software version before procurement.

Case I met: A heating plant installed latest revision 5X00846G01, spent one day troubleshooting until they upgraded controller firmware.
Neglect Channel Isolation Wiring Rules

Do not mix AC and DC field signals on the same module. Crosstalk may cause false signal triggering.

Advice: Follow Emerson wiring manual; separate AC loops and DC loops on different DI cards.
Improper Hot Swap Operation

Do not pull out or insert modules during severe power grid fluctuation. Instant voltage surge may damage backplane bus.

Advice: Try to perform replacement during stable load periods; prepare to pause related interlock logic if necessary.
ESD Damage Risk

Ovation I/O PCB circuits are sensitive to static electricity. Unprotected handling creates hidden faults that appear randomly after commissioning.

Advice: Wear ESD wrist strap connected to rack protective ground when unpacking and inserting modules.
Missing Module Configuration Download

Many engineers assume new modules work immediately after installation. Channel definitions will be blank without downloading configuration.

Advice: Export and back up DI module configuration offline in advance for rapid recovery during maintenance.
