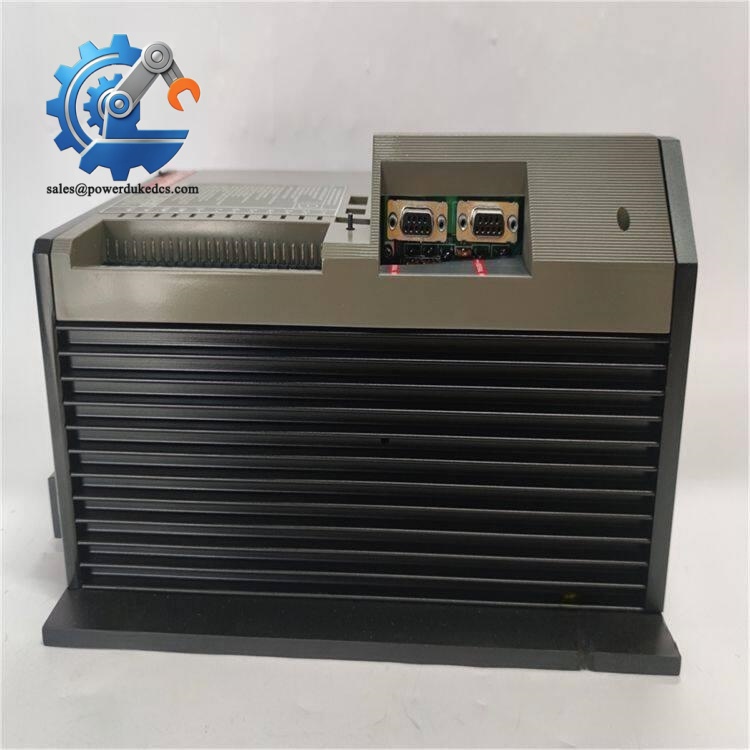

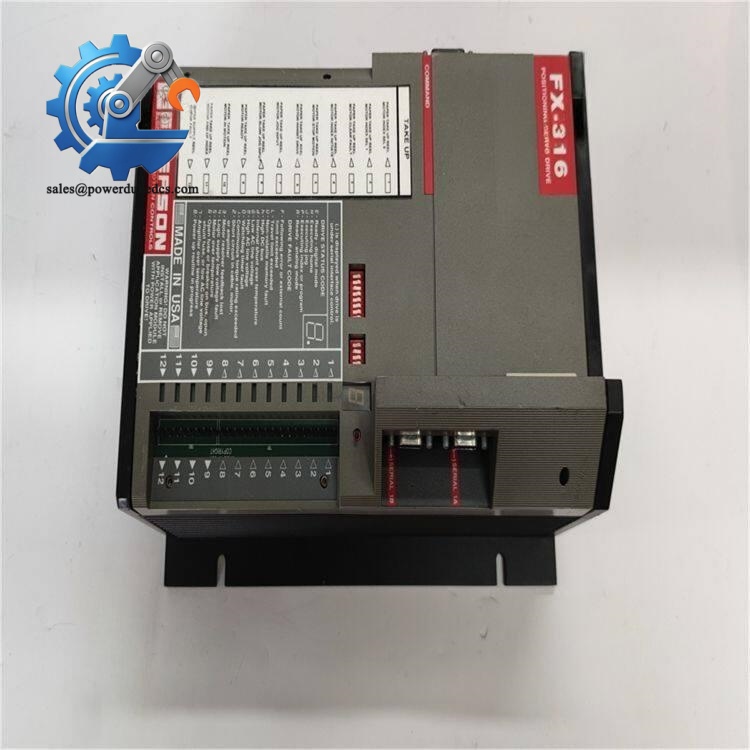

1. Emerson FX-316 960132-01 | Cabinet-mounted servo drive with built-in multi-level fault protection

Product Core Brief

• Model: FX-316, Part No. 960132-01
• Brand: Emerson Motion Control
• Series: FX Servo Drive Series
• Core Function: Execute closed-loop motion control for precision positioning automation equipment
• Type: Digital Position Servo Drive
• Key Specs: Supports 3 control modes, resolver encoder feedback, built-in overcurrent/overvoltage protection
• Condition: New Surplus, non-refurbished ⚠️ Discontinued original production, limited surplus inventory available

Product Introduction

Many older automated production lines still rely on FX-series motion hardware, and servo drive failure directly triggers full line shutdown. The Emerson FX-316 960132-01 is a dedicated digital servo drive built for high accuracy motion applications.

This drive runs three standard control modes simultaneously selectable: position loop, speed loop and torque loop. It supports resolver feedback, eliminating signal drift issues common with low-cost encoders. Multiple hardware fault detection functions monitor current, temperature and voltage continuously during operation. Widely deployed on automated assembly equipment, special CNC machinery and packaging production lines. One practical advantage: the wiring interface maintains consistency across most FX series variants, which simplifies on-site replacement work during maintenance windows.

Key Technical Specifications

Emerson FX-316 960132-01

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated: 14 minutes)

⚠️ Safety reminders

1. Lock out and tag the production machine; confirm all moving axes are secured mechanically
2. Cut off main AC power supply, wait minimum 10 minutes for internal DC bus capacitors to discharge fully
3. Prepare ESD wrist strap and anti-static mat. Circuit boards are sensitive to electrostatic damage

Tools and preparation

• PH1 and PH2 screwdrivers, digital multimeter
• Laptop with official FX series servo configuration software
• Mobile phone for recording wiring, switch settings and parameter values Backup tasks
• Read and save all servo parameter settings from the existing drive
• Photograph power terminals, motor wiring and feedback cable connections
• Document encoder/resolver wiring pin definitions

Phase 2: Remove Old Servo Drive (Estimated: 11 minutes)

1. Confirm main power is isolated; mark each power cable, motor wire and feedback cable
2. Disconnect wiring group by group, avoid mixing resolver signals with power wiring
3. Loosen mounting bolts on the cabinet mounting plate
4. Take the drive out slowly; check for dust accumulation on cooling fan and heat sink
5. Inspect cable terminals for oxidation or loose strands ⚠️ Never pull cables by force; broken fine wiring inside cables leads to intermittent faults after replacement.

Phase 3: Install New FX-316 Drive (Estimated: 17 minutes)

1. Unpack the replacement drive only after completing ESD grounding procedures
2. Verify complete part number marking: FX-316 960132-01
3. Fix drive vertically on mounting plate, maintain minimum clearance around heat sink for ventilation
4. Restore all wiring strictly according to photos and labels Self-check list [ ] Power phase sequence connected correctly [ ] Resolver shield cable single-end grounded [ ] No wiring crossing between power cables and signal cables [ ] Cooling air inlet and outlet not blocked by wiring or structural barriers

Phase 4: Power-On & Function Testing (Estimated: 32 minutes)

Pre-power inspection

• Measure three-phase input voltage, confirm voltage range matches drive rating
• Check insulation resistance between power terminals and ground

Power-on steps

1. Switch on control power first; do not enable motor output immediately
2. Observe front panel LED indicators; confirm no initial fault alarms
3. Connect configuration software and upload saved parameter set
4. Verify feedback signal detection, confirm resolver position data displays normally
5. Execute low-speed jog test without load to check forward and reverse rotation direction
6. Run full stroke test under partial load, monitor drive temperature and vibration
7. Maintain continuous running test for minimum 30 minutes; check for recurring alarms

Troubleshooting tips

• Feedback loss alarm: Check resolver cable continuity and shielding connection
• Overload alarm: Verify motor matching and acceleration parameter settings
• Abnormal heating: Confirm cooling airflow and cabinet ambient temperature

Frequently Asked Questions (FAQ)

1. Can FX-316 960132-01 be hot swapped while cabinet power remains active? It cannot support hot swap. Disconnect all power before replacement. Live disconnection may generate voltage surges and permanently damage drive internal power circuits. Always arrange replacement during planned equipment shutdown.
2. Can I directly copy parameters from other FX series servo drives? Partial parameters are shared, but motor-related gain values, resolver pole settings cannot be copied blindly. We encountered on-site cases where direct parameter copy caused axis oscillation. Compare motor nameplate data and adjust gain groups after download.
3. Is resolver feedback mandatory for FX-316 operation? Yes. This hardware variant is designed exclusively for resolver signals. It does not support standard incremental encoder interfaces. Confirm your motor feedback type before ordering spare units.
4. Are different hardware revisions of FX-316 fully interchangeable? Mechanical dimensions are consistent. Firmware version differences may affect parameter compatibility. Send the firmware version of your original drive in advance so we can confirm matching stock.
5. What protection triggers most frequently during long-term operation? Overtemperature alarms appear most often. Dust accumulation on heat sinks and blocked cooling channels reduce heat dissipation. Clean the cooling fan every 6 months for equipment running continuously.
6. Is FX-316 960132-01 still manufactured by Emerson? This servo drive model has entered end-of-life status. No new original factory production. Available stock is limited surplus inventory. Factories maintaining multiple automation lines should reserve spare units ahead of demand.
7. Can this servo drive communicate directly with DeltaV or third-party PLC systems? It does not carry built-in industrial Ethernet fieldbus interfaces. Motion commands are usually delivered via pulse or analog signals. If network communication is required, additional pulse acquisition modules are needed.
