Description

1. Emerson 5X00875G01 | Redundant Ready Controller Optimized for Power Generation Plants

Product Core Brief

• Model: 5X00875G01
• Brand: Emerson
• Series: Ovation OCR3000 DCS Series
• Core Function: Execute process control logic and manage local I/O branches for Ovation rack
• Type: Control Processor Module (CPU / IOIC Integrated Controller)
• Key Specs: Supports redundant hot standby, parallel scanning of up to 16 I/O branches, real-time deterministic control cycles Condition: New Surplus, non-refurbished ⚠️ Original manufacturer end-of-life hardware, limited stock availability

Product Introduction

Unexpected controller failure can trigger full plant process trips for power station boiler and turbine control systems. The Emerson 5X00875G01 serves as the core processing unit for Ovation OCR3000 DCS racks. It combines main processor and I/O interface controller functionality onto a single module, removing the requirement for separate IOIC hardware.

Compared to older split processor architecture, this integrated design reduces rack slot usage and lowers potential backplane communication failure points. Field operation records confirm stable continuous operation within 0°C ~ +60°C, widely deployed in thermal power plants, combined cycle facilities and large petrochemical process units. The hardware supports primary/standby redundant configuration to achieve bumpless failover during maintenance or component faults.

Key Technical Specifications

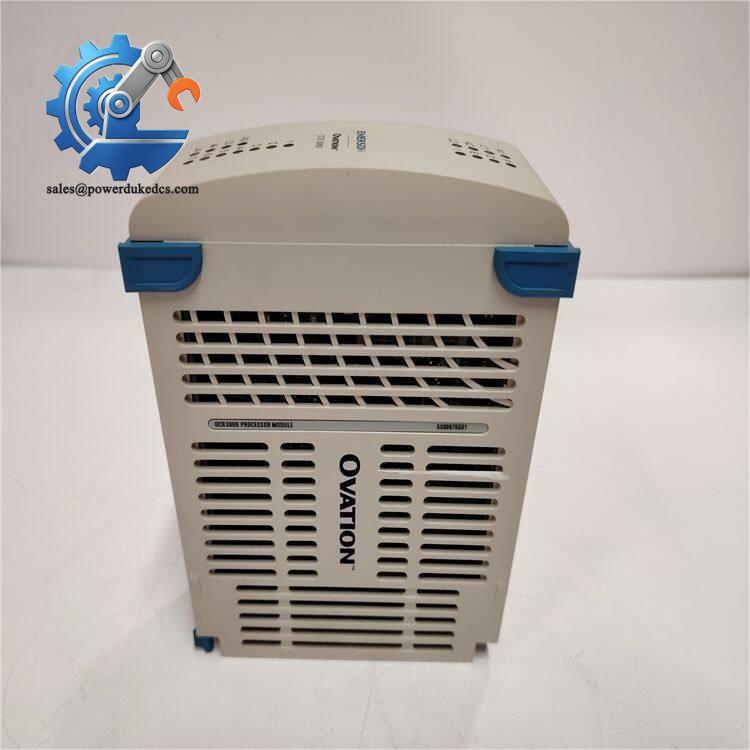

Emerson 5X00875G01

Installation & Configuration Guide

Pre-Installation (Estimated 15 minutes)

⚠️ Safety Reminders

1. Schedule planned outage for the Ovation control rack. Unpowered replacement is strongly recommended.
2. Lock out rack power supply, wait minimum 5 minutes for internal capacitors to discharge.
3. Notify operation staff about potential brief loss of control logic during module swap.

Tools to prepare:

• Anti-static wrist strap and anti-static mat
• PH1 screwdriver
• Digital multimeter
• Mobile phone for photographing module slot position and wiring
• Label tape for identification

Preparation tasks: Export complete controller database and control logic project files to secure storage. Record existing processor firmware revision, redundant pairing settings and network configuration parameters.

Removal of Old Module (Estimated 18 minutes)

1. Confirm rack power is fully disconnected. If running redundant system, verify standby controller has taken full control before shutdown.
2. Release the module front panel locking latches.
3. Pull the processor module straight outward. Do not twist the circuit board to avoid bending backplane pins.
4. Inspect rack backplane connectors for oxidation, bent pins or accumulated dust. Clean contaminants with dry compressed air if needed.
5. Check rear sync port cabling for redundant link, mark all cables clearly.

New Module Installation (Estimated 20 minutes)

1. Wear anti-static equipment before unpacking the processor. Static discharge can damage high-speed processor circuits.
2. Insert the module into the target rack slot, push vertically until locking latches click securely.
3. Reconnect redundant sync communication cables following reference photos.
4. Confirm no loose cables or stray hardware remain inside rack cabinet.

Pre-power-on checklist: [ ] Module fully seated and latched into rack backplane [ ] Redundant sync wiring properly connected [ ] No foreign debris inside rack slots [ ] Slot fillers installed on empty rack positions

Power-On & Functional Testing (Estimated 40 minutes)

1. Restore rack power and observe front panel LED indicators. Normal startup shows steady RUN light after initialization.
2. Open Ovation Developer Studio software, scan rack hardware and confirm the system detects 5X00875G01 processor.
3. Match firmware revision of new module to site standards; upgrade or downgrade firmware if version mismatch exists.
4. Download saved control logic database to the processor.
5. If redundant setup exists, activate pairing between primary and standby controller and verify automatic bumpless switchover.
6. Maintain continuous operation for minimum 60 minutes. Monitor system alarms, control loop performance and communication status.
7. Update maintenance log with serial number, replacement date and firmware version information.

Troubleshooting hints:

• Processor not detected: Recheck complete insertion into rack backplane
• Redundant sync failure: Inspect dedicated sync cable and port configuration
• Logic download failure: Confirm software compatibility with installed firmware revision

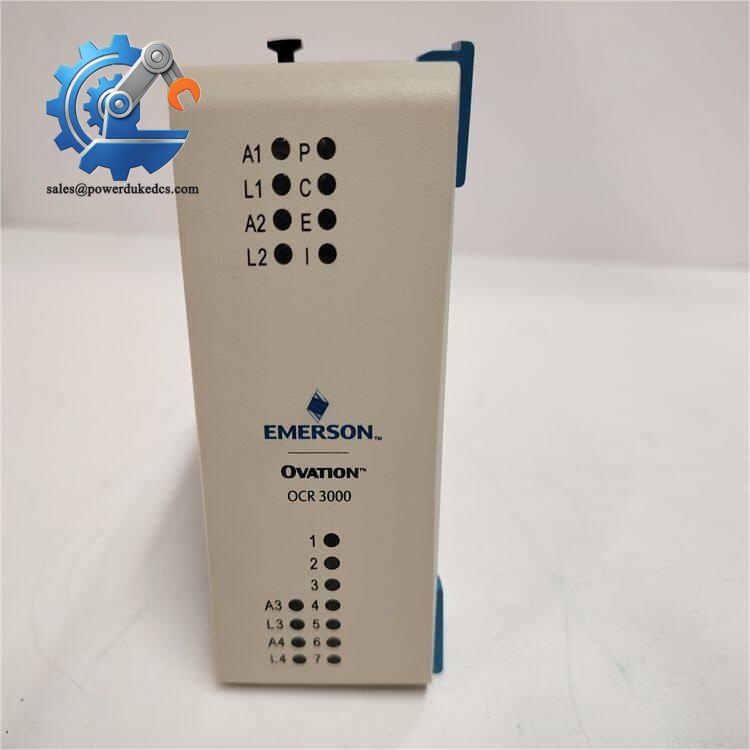

  Emerson 5X00875G01

Frequently Asked Questions (FAQ)

1. Can I perform hot swap replacement for the 5X00875G01 processor module? Hot swap is not recommended even for redundant racks. Live removal generates backplane noise and may trigger transient control disturbances. Always arrange planned shutdown for physical module replacement.
2. Is this module compatible with all generations of Ovation racks? It works for Ovation racks supporting OCR3000 series controllers. Older OCR1000 racks cannot directly adopt this processor. Send rack model and existing controller part number for pre-verification before purchase.
3. Can multiple 5X00875G01 processors operate within one rack? Yes. Independent control processors can be installed to run separate control domains inside a single rack, isolating boiler, turbine and auxiliary system logic.
4. What warranty terms apply to this surplus processor module? Every unit completes full bench testing including logic loading and redundant communication verification before shipment. We provide a 12-month functional warranty. Test documentation can be provided on request.
5. What is the core advantage of the integrated OCR3000 processor design? Traditional architecture uses separate CPU and IOIC boards. The 5X00875G01 merges both functions, reducing hardware quantity, minimizing backplane communication links and lowering potential fault points.
6. What typical failure symptoms appear on a faulty 5X00875G01 controller? Common faults include continuous boot cycling, failure to load control logic, loss of communication with all local I/O branches, standby controller unable to synchronize with primary unit, and persistent critical fault LED alerts.
7. Must the firmware version match the rest of the Ovation system? Firmware consistency is critical. Different revisions bring changes to backplane protocol and control algorithm behavior. Mismatched firmware often causes I/O communication dropout or abnormal control loop operation.
