1. Emerson 5X00453G01 | Backplane-powered I/O module with channel fault self-diagnosis

Product Core Brief

• Model: 5X00453G01
• Brand: Emerson (Ovation, formerly Westinghouse)
• Series: Ovation Distributed Control System
• Core Function: Convert digital control signals to standard 4–20mA analog outputs for field actuators
• Type: 8 Channel Analog Output Module
• Key Specs: 16-bit DAC resolution, HART compatible, max load 750 Ω, channel isolation
• Condition: New Surplus, non-refurbished ⚠️ Discontinued original factory production, limited surplus inventory available

Product Introduction

Control signal stability directly affects regulating valves, feedwater actuators and combustion equipment in thermal power plants. The Emerson 5X00453G01 serves as the output interface between Ovation controllers and field intelligent instruments.

This module delivers 8 independent analog output channels supporting standard 4–20mA signals. It carries built-in HART signal coupling, allowing two-way communication with HART positioners without adding extra hardware. Each channel includes continuous diagnostic logic to detect open circuits and overload conditions. The unit plugs into standard Ovation I/O carriers and draws power entirely from the rack backplane. Many combined-cycle and fossil power facilities maintain spare stock, since module failure leads directly to loss of modulating loop control.

Key Technical Specifications

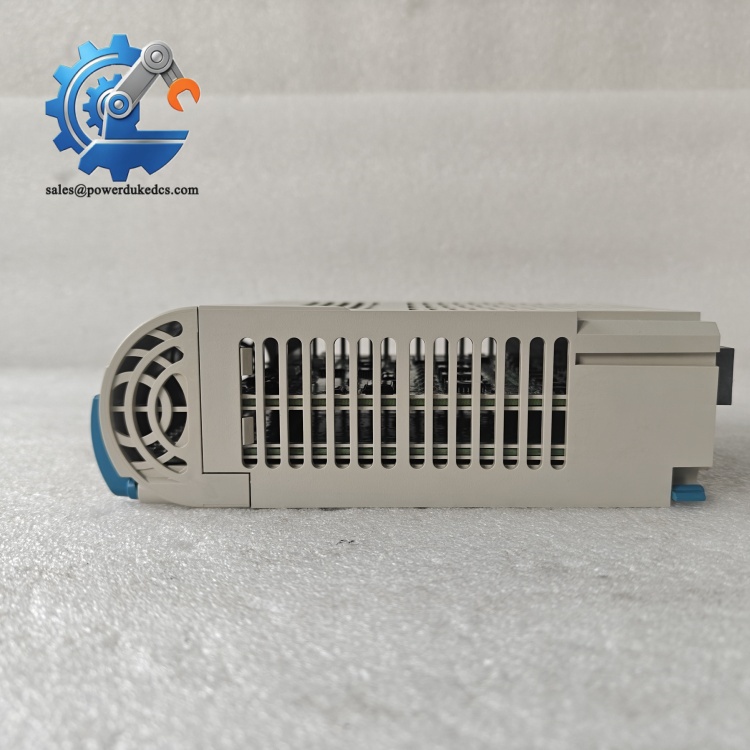

Emerson 5X00453G01

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated:14 minutes)

⚠️ Safety reminders

1. Coordinate with operation team, activate manual control or logic bypass for all affected regulating loops
2. Confirm maintenance window is approved before removing the working module
3. Prepare ESD wrist strap and anti-static mat. Analog circuits are sensitive to electrostatic discharge

Tools and preparation

• PH1 screwdriver, calibrated digital multimeter
• Laptop running Ovation Developer Studio software
• Mobile phone for recording wiring and module slot location Backup tasks
• Export database configuration including output scaling and fail-safe values
• Photograph field termination wiring and existing module front indicators
• Record firmware revision of the original 5X00453G01

Phase 2: Remove Old Module (Estimated:11 minutes)

1. Verify all connected actuators are switched to local manual mode
2. Unlatch front panel lock, pull module straight outward from carrier slot
3. Inspect backplane gold contacts; clear dust with dry compressed air ⚠️ Do not twist the module during removal. Bent backplane pins create unstable output signals.

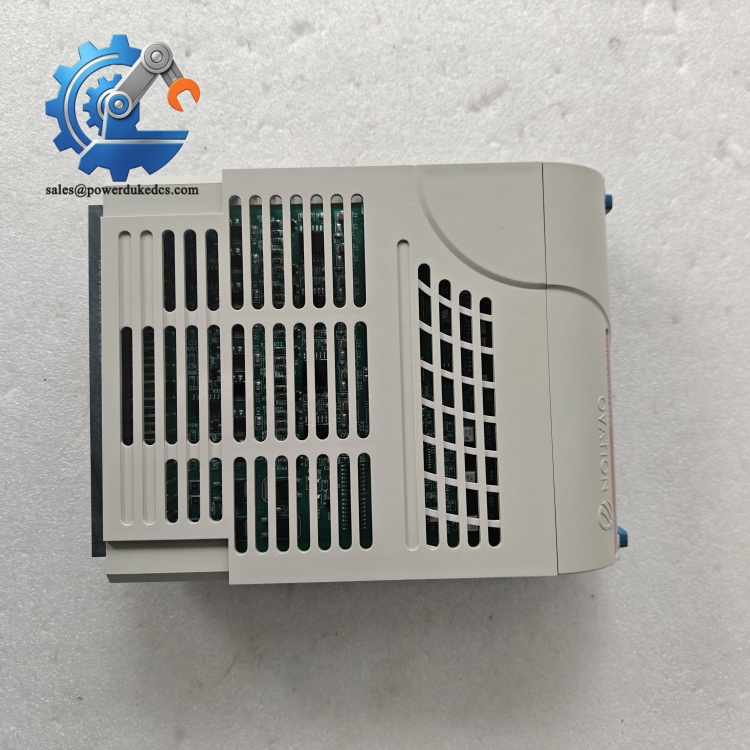

   Emerson 5X00453G01

Phase 3: Install New 5X00453G01 Module (Estimated:16 minutes)

1. Unpack replacement module only after completing ESD grounding
2. Verify full part number marking matches site requirement: 5X00453G01
3. Align module with target carrier slot and push fully seated until locked
4. Confirm field termination wiring matches saved photos and labels Self-check list [ ] Module sits level without tilt [ ] Signal cable shielding follows single-end grounding rules [ ] No high-voltage cables routed parallel to analog signal wiring

Phase 4: Power-On & Function Testing (Estimated:28 minutes)

Pre-power inspection

• Check for short circuits on field output terminals
• Confirm rack backplane power supply works normally

Power-on steps

1. Restore rack power and observe front panel LED indicators
2. Connect configuration workstation and scan I/O rack to identify new module
3. Download saved scaling parameters and fail-safe output values
4. Force output values inside software, measure 4–20mA signal at field terminals
5. Test HART communication if intelligent valve positioners are installed
6. Run continuous monitoring for minimum 30 minutes, check for intermittent channel alarms
7. Remove temporary bypass and return regulating loops to automatic control

Troubleshooting tips

• Output unable to reach 20mA: Check field loop resistance exceeds maximum 750 Ω limit
• Unstable output drift: Separate analog wiring from AC power cables and check shielding
• HART communication failure: Confirm correct wiring polarity for HART signal loops

Frequently Asked Questions (FAQ)

1. Can 5X00453G01 support hot swap while the DCS rack remains powered? The hardware supports hot-swap mechanical design. Live replacement will cause momentary loss of control signal to actuators. Implement manual bypass or local operation mode for all related loops before pulling the module.
2. Can I directly swap 5X00453G01 with other Ovation AO variants? Mechanical size and carrier interface are similar across series, but HART functionality and output circuit parameters differ. Blind replacement may disable HART communication or trigger overload alarms. Confirm full part number before purchasing spares.
3. What fail-safe state does the module adopt during power loss? Output channels will drop to 4mA by default unless custom fail-safe parameters are downloaded via Ovation configuration software. Adjust settings according to safety requirements of valves or actuators.
4. Are different hardware revisions fully interchangeable? Form factor remains consistent. We have encountered cases where older Ovation rack firmware cannot identify newer hardware revisions. Share your on-site Ovation software version for pre-order compatibility verification.
5. What types of field equipment commonly connect to this AO module? Pneumatic valve positioners, electric actuators, variable speed drive setpoint inputs. It is widely used for boiler pressure control, steam temperature regulation and feedwater flow control loops.
6. Is 5X00453G01 still in production by Emerson? This legacy Ovation I/O module has reached end-of-life. No new original factory production. Stock availability depends on surplus inventory. Power plants running long-term Ovation systems should arrange spare procurement ahead of maintenance cycles.
7. Does every channel need independent loop power supply? This module provides loop power internally for 4–20mA output circuits. External power supplies are not required for standard two-wire control loops.
