GE DS200DCFBG1BNC | OEM DC Feedback Board for Power Generation Exciter Control

Product Core Brief

Model: DS200DCFBG1BNC
Brand: General Electric (GE)
Series: Mark V DS200 Speedtronic Control Platform
Core Function: DC feedback monitoring and control power supply board for industrial drives and generator exciters
Type: DCFB (DC Feedback) Printed Circuit Board
Key Specs: 38–115 VAC input | Configurable jumpers & DIP switches | Multi-channel regulated DC outputs
Condition: New Surplus, non-refurbished

⚠️ Original manufacturing discontinued, limited available stock

Key Technical Specifications

Parameter	Specification
Full Part Number	DS200DCFBG1BNC
AC Input Voltage Range	38 VAC ~ 115 VAC
Input Frequency Range	0 Hz ~ 500 kHz
Onboard Regulated Outputs	+5 VDC, ±15 VDC, ±24 VDC control power; 115 VAC output for cabinet cooling fans
Configuration Components	12 configurable jumpers, 7 DIP switches
Protection Hardware	3 built-in protective fuses for separate circuit branches
Status Indicators	2 LED diagnostic lamps, 1 neon fuse fault indicator
Test Points	5 accessible test terminals for field measurement and troubleshooting
Integrated Circuits	AC monitoring circuit, DC feedback circuit, control power circuit, motor field power circuit, drive pulse circuit
Supported Drive & Exciter Platforms	DC2000, AC2000, CB2000, ME2000, FC2000
Operating Ambient Temperature	0 °C ~ 60 °C inside enclosed control cabinet
PCB Protection	Conformal coated for anti-corrosion and dust resistance

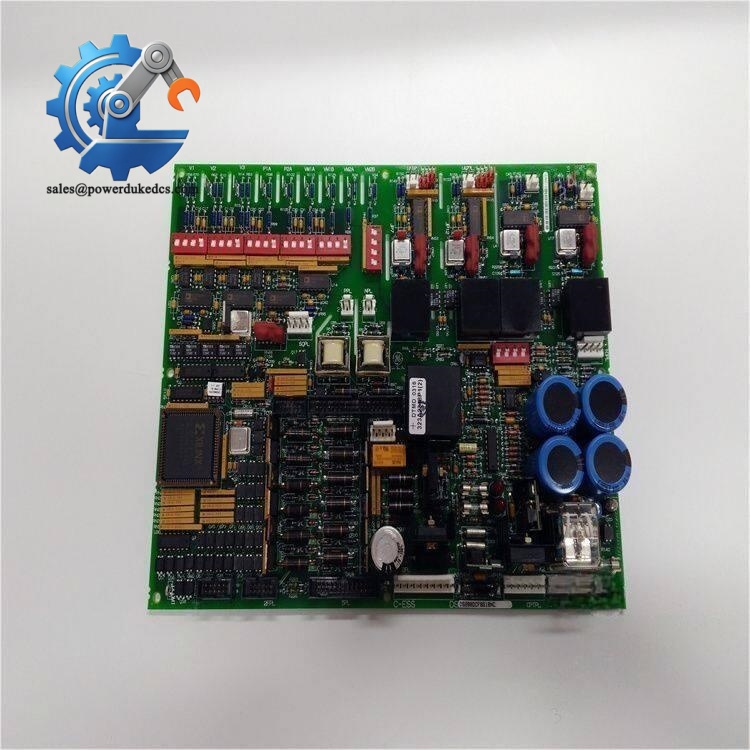

GE DS200DCFBG1BNC

Product Introduction

GE DS200DCFBG1BNC DC Feedback Power Supply Board is a rack-mounted PCB designed for the GE Mark V Speedtronic control system. It supplies stabilized low-voltage DC power for drive logic circuits and provides independent 115 VAC power to cabinet cooling fans.

Beyond power distribution, the board continuously processes AC and DC feedback signals to monitor motor field operating conditions. Engineers adjust system parameters via onboard jumpers and DIP switches to match different exciter and drive configurations. Visible status indicators and accessible test points simplify on-site troubleshooting, lowering unplanned outage risks for power generation and heavy industrial continuous-production equipment.

Application Scenarios & Pain Points

A combined-cycle power plant encountered an unplanned unit trip after intermittent faults on the DC feedback board. Without spare inventory, the site faced a 10+ week lead time from the original manufacturer. Failures on this critical power and feedback board disable generator excitation systems, resulting in costly forced shutdowns for power facilities.

Typical Application Scenarios:

Thermal & Combined-Cycle Power Plants – Generator Exciter Control

Installed on GE DC2000 / AC2000 exciters to stabilize excitation current for synchronous generators.
Gas Turbine Auxiliary Systems – Variable Speed Drives

Control boiler fans, circulating water pumps and auxiliary compressors under continuous heavy load.
Oil & Gas Processing Plants – Natural Gas Compressor Drives

Serve DC variable-speed drive systems for pipeline and refining compression units.
Metallurgical Industry – Rolling Mill DC Drives

Regulate power supply and feedback signals for high-torque DC motor production lines.

Case Reference:

A coastal thermal power station’s 30 MW auxiliary exciter system developed unstable field current fluctuations. After systematic troubleshooting, maintenance technicians confirmed the aging DS200DCFBG1BNC had intermittent failures within the feedback circuit. Original GE factory delivery required 12 weeks. The procurement team sourced a fully tested spare DS200DCFBG1BNC from stock. Technicians captured photos of all jumper and DIP switch positions before removing the faulty board. After hardware replacement and exact parameter replication, the exciter returned to stable operation within a single shift and avoided a scheduled unit shutdown.

Compatibility & Replacement Matrix

DS200DCFBG1BNC → DS200DCFBG1BLC: Hardware revision difference; limited cross compatibility. Verify circuit layout, jumpers and connector pinout before replacement; field reconfiguration required.

DS200DCFBG1BNC → DS200DCFBG1BNC: Direct plug-and-play replacement; strictly replicate all jumper and DIP switch settings of original hardware.

DS200DCFBG1BNC → Base DS200DCFBG1: Not direct replacement; older base revision lacks updated feedback protection circuits.

DS200DCFBG1BNC → Other DS200 series boards (DS200SDCCG1A): Not compatible, different functional circuit design.

Critical Replacement Notes

Record all hardware configuration: Capture clear photos of all 12 jumpers and 7 DIP switches before de-installation. Wrong settings trigger drive overload alarms or unstable excitation.
Input voltage validation: Confirm field AC input stays within 38–115 VAC range; overvoltage conditions blow onboard protective fuses instantly.
Wiring inspection: Double-check fan power wiring and field feedback terminal connections; reversed wiring causes permanent signal circuit damage.
Mandatory ESD protection: Wear anti-static wristbands during all PCB handling; sensitive feedback front-end circuits are vulnerable to electrostatic discharge.

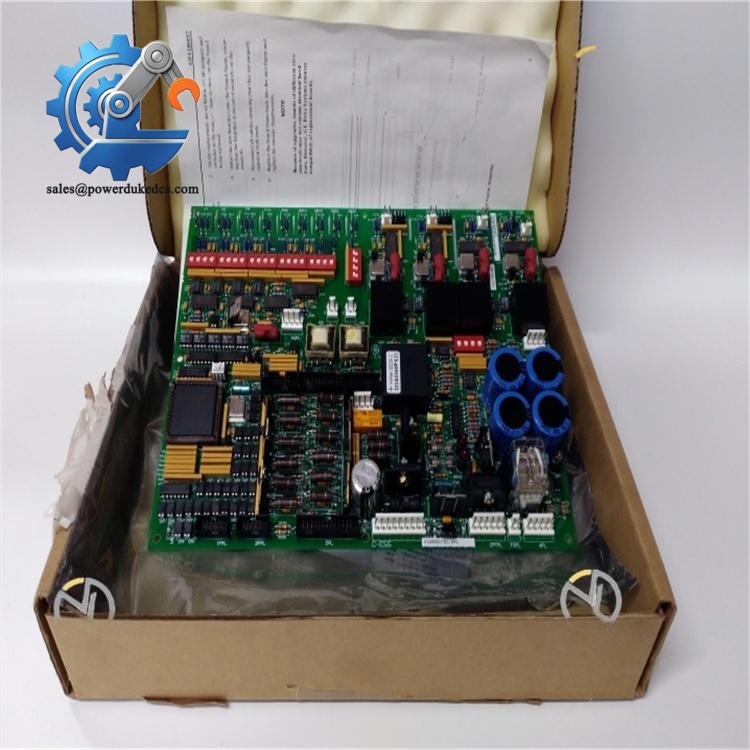

GE DS200DCFBG1BNC

Quality Control Process (Transparent Inspection Standard)

Incoming Inspection

Serial number verification, full visual inspection for PCB corrosion, trace damage, unauthorized solder repair or capacitor aging. Check connector integrity and conformal coating status.
Bench Functional Live Test

Mount board inside standard GE Mark V drive test rack. Complete power-on self-test, verify LED and neon indicators. Simulate AC input voltage and test all DC power rail outputs. Run continuous 24-hour burn-in monitoring thermal stability. Custom test reports and inspection photos can be provided upon request.
Electrical Parameter Testing

DC rail voltage measurement, insulation resistance testing, continuity verification of all onboard fuses.
Hardware Configuration Recording

Document factory default jumper and DIP switch layout for customer reference.
Final QC & Packing

QC engineer sign-off, sealed inside anti-static shielding bag, wrapped with bubble foam. Attach QC Passed label printed with inspection date.

On-site Pitfall Guide for Engineers

Skipping Configuration Photo Documentation

I witnessed a site incident where technicians swapped the board without recording switch positions. After power-up, the drive triggered field current overload alarms. Two full shifts were consumed to restore correct settings. Always photograph configurations before removing the old board.
Incorrect Interchange of DCFB Board Revisions

Do not casually substitute DS200DCFBG1BLC for DS200DCFBG1BNC. Hardware revisions differ in protection circuits; improper substitution leads to unstable excitation performance.
Neglect Pre-power Short-Circuit Check

Multiple field failures arise from unchecked short circuits on fan load circuits. Short-circuit loads blow internal board fuses immediately after energization.
Hidden Static Damage

Low-voltage feedback circuits use delicate surface-mount components. In dry winter environments, static discharge can permanently damage signal channels without visible physical damage.
Capacitor Degradation Risk

For used boards, closely inspect electrolytic capacitors. Aged capacitors introduce voltage ripple and random drive trips during load transients.
