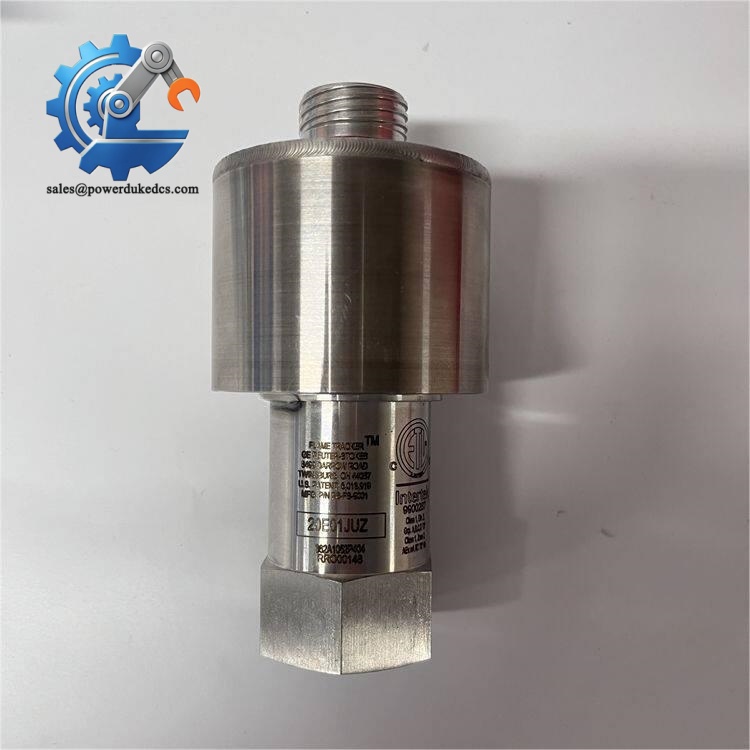

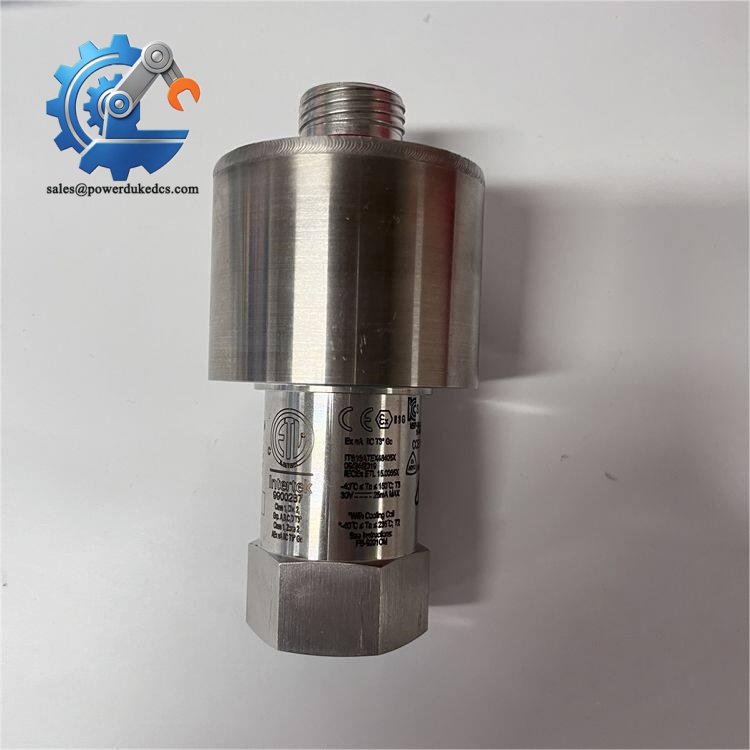

GE RS-FS-9001 362A1052P004 | Genuine Reuter-Stokes Flame Tracker, Limited Inventory

Product Core Brief

Model: RS-FS-9001, Part No. 362A1052P004
Brand: GE Reuter-Stokes (GE Vernova)
Series: Flame Tracker SiC UV Flame Sensor Series
Core Function: Ultraviolet flame detection sensor, transmits flame intensity signal to turbine control system for combustion protection
Type: Two-Wire SiC Flame Detector
Key Specs: 4–20 mA output | Response time <25 ms | Sapphire optical window
Condition: New Surplus, non-refurbished

⚠️ Original OEM production lead time is long; available stock quantity is limited.

Key Technical Specifications

Parameter	Specification
Full Part Number	RS-FS-9001 / 362A1052P004
Product Name	Flame Tracker Silicon Carbide UV Flame Sensor
Output Signal	4–20 mA DC two-wire signal
Supply Voltage	12–30 V DC, ≥100 mA
Response Time	Less than 25 ms
Optical Component	Silicon Carbide photodiode, Sapphire window
Process Connection	3/4” NPT female thread
Electrical Connector	MIL-C-38999 Series III, 5-pin
Ambient Operating Temp	-40 ℃ ~ +150 ℃
Cooled Maximum Temp	235 ℃ (with specified water cooling)
Maximum Process Pressure	400 psig (2.8 MPa)
Vibration Resistance	8 G continuous, 14 G peak
Certification	Class I Division 2, ATEX Zone 2 compliant
Compatible Cable	RS-E2-0285PXXX / 362A1053PXXX series cable

GE RS-FS-9001 362A1052P004

Product Introduction

GE RS-FS-9001 362A1052P004 is a Reuter-Stokes Flame Tracker UV flame sensor widely matched with GE Mark VI / Mark VIe gas turbine control systems. It adopts silicon carbide ultraviolet detection technology to identify flame radiation inside combustors, resisting interference from hot metal background radiation.

The sensor outputs linear 4–20 mA flame strength signals to the turbine control cabinet. The control system judges flame presence and stability to execute ignition sequence, flame loss protection and gas fuel shutoff logic. The all-stainless steel housing and rugged optical window adapt to high-temperature, vibration-heavy environments on turbine casings. It is the primary safety component to prevent unburned gas accumulation and explosion risks.

Application Scenarios & Pain Points

For gas-fired power plants and petrochemical facilities, flame sensor failure triggers false flame-out trips. Unplanned turbine shutdown brings huge economic losses. A faulty detector cannot distinguish normal flame and background heat radiation, leading to unreliable unit operation.

Typical Application Scenarios:

Power Generation – Heavy-Duty Gas Turbines

Installed on gas turbine combustors for continuous flame supervision; critical for flame loss protection during startup and base-load operation.
Oil & Gas – Refinery Furnaces & Turboexpanders

Monitor burners of process heaters; avoid fuel leakage hazards caused by undetected flame extinction.
Petrochemical – Hydrogen Furnace & Steam Reformer

High-temperature combustion equipment requires UV sensors immune to thermal background noise.
Cogeneration Plants – Reciprocating Engines & Small Gas Turbines

Continuous flame monitoring for distributed power generation units.
Steel Industry – Heating Furnace Burners

Safe combustion monitoring for large industrial heating equipment.

Case Reference:

A coastal power station’s GE gas turbine experienced frequent accidental trips. Inspection confirmed aging of the original RS-FS-9001 sensor; signal drift caused the control system to misjudge flame loss.

The unit could not sustain long-term unstable operation. After installing the replacement RS-FS-9001 362A1052P004 during the weekly maintenance window, flame signal readings returned stable. No unnecessary shutdown events occurred afterward. The plant added two spare flame sensors to the MRO inventory for emergency use.

Compatibility & Replacement Matrix

RS-FS-9001 362A1052P004 → RS-FS-9004 : Not direct replacement (RS-FS-9004 for Class I Div 1; different certification and installation requirements)

RS-FS-9001 (362A1052P004) → Other RS-FS-9001 part revisions : Direct replacement (confirm connector pin assignment before installation)

RS-FS-9001 → Traditional UV rod sensors : Not interchangeable (different signal output and control logic)
