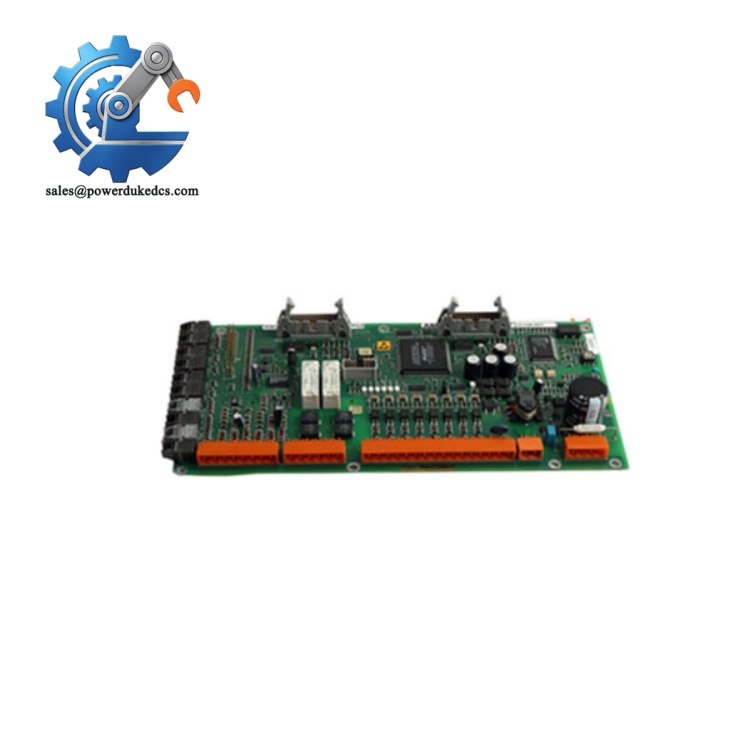

Reliance UAZ3455 / UAZ3475 | OEM VZ3000 Rectifier Unit, Matched with UVZ Series Inverters

Product Core Brief

Model: UAZ3455, UAZ3475
Brand: Reliance Electric (now part of Rockwell Automation)
Series: VZ3000 Modular AC Drive Platform
Core Function: 3-phase AC-DC converter unit, supplies DC bus power to UVZ series inverter modules
Type: Drive Converter / Rectifier Unit
Key Specs: 380–460 VAC input | Separated modular architecture | Matched UVZ3455 / UVZ3475 inverter
Condition Note: OEM discontinued production; available as tested surplus/refurbished units, factory new production unavailable

Key Technical Specifications

Parameter	Specification
Part Numbers	UAZ3455, UAZ3475
Platform	Reliance VZ3000 Separated-Type Drive System
Function	3-phase AC to DC bus rectifier converter
Input Voltage	380–460 VAC, 3 Phase, 50/60 Hz
Matching Inverter	UAZ3455 ↔ UVZ3455; UAZ3475 ↔ UVZ3475
DC Bus Output	Regulated DC voltage for paired inverter unit
Control Architecture	PWM vector control compatible, supports constant torque loads
Overload Rating	150% rated current for 60 seconds
Cooling	Forced air cooling, integrated cooling fan
Protection Functions	Overvoltage, undervoltage, overcurrent, overheat, phase loss detection
Operating Temperature	-10 °C ~ +40 °C
Enclosure Rating	IP20, cabinet mounting only
Communication	Supports VZ3000 operator panel, RS485 Modbus RTU
Mounting	Standard cabinet chassis installation

Reliance UAZ3455 / UAZ3475

Product Introduction

Reliance UAZ3455 and UAZ3475 are standalone converter (rectifier) units within the VZ3000 separated-type drive system. They convert three-phase industrial AC power into stabilized DC bus voltage to feed corresponding UVZ series inverter modules.

This split converter-inverter design separates power rectification and motor inversion. It enables flexible system configuration for high-power constant-torque applications. The modules include built-in monitoring and fault detection circuits. As obsolete drive hardware, these units are critical MRO spares for legacy production lines that cannot afford full machine electrification upgrade.

Application Scenarios & Pain Points

Unplanned converter failure cuts DC bus supply and stops the driven motor completely. Many metal processing, extrusion and heavy conveying lines still rely on VZ3000 modular drives. Long OEM lead times for obsolete hardware lead to extended production outages without spare inventory.

Typical Application Scenarios:

Plastic Extrusion Lines – Main extruder main drive, continuous high-torque operation
Metal Rolling & Processing Mills – Conveyors, take-up reels and tension control drives
Mining Bulk Conveying Equipment – Heavy-duty belt conveyor variable speed control
Paper & Pulp Production – Winders, unwinders and process pump speed regulation

Case Reference

A plastic compounding factory in Shandong faced sudden production shutdown after UAZ3455 converter failure on the main twin-screw extruder. Official supplier lead time exceeded 10 weeks. The maintenance team purchased our pre-tested spare UAZ3455 unit. After matching DC bus wiring and parameter verification, the extruder resumed operation within 24 hours. The plant later stocked one UAZ3455 and one UAZ3475 for emergency backup.

Compatibility & Replacement Matrix

UAZ3455 → UAZ3455 : Direct replacement; Must pair with UVZ3455 inverter unit

UAZ3475 → UAZ3475 : Direct replacement; Must pair with UVZ3475 inverter unit

UAZ3455 → UAZ3475 : Not interchangeable; Mismatched power rating triggers overcurrent protection

UAZ3455/UAZ3475 → Unitized UVZC integrated drives : Not plug-and-play; Full cabinet wiring modification required

UAZ3455/UAZ3475 → Third-party generic rectifiers : Not recommended; DC bus characteristics mismatch causes inverter unstable operation

Quality Control Procedure (SOP)

Incoming Inspection

Serial number recording; Visual inspection for bulging capacitors, burnt PCB traces, terminal deformation and fan damage. Check all power terminals and control wiring ports.
Bench Functional Live Test

Test platform built with matched UVZ inverter module and resistive load bank. Complete power cycle test, AC-DC conversion verification, DC bus stability testing and fault alarm simulation. Formal test report generated.
Electrical Parameter Testing

Insulation resistance test; Input phase balance test; DC bus ripple measurement.
Circuit & Configuration Recording

Document hardware condition; Photograph power terminals and control connectors for customer reference.
Final QC & Packing

QC engineer signs test report. Unit protected with anti-static shielding and bubble wrap. Test photos and reports can be provided upon request.

Field Installation Pitfall Guide

Mismatched Converter & Inverter Model

Fault risk: Pairing UAZ3455 with UVZ3475 or vice versa triggers overload alarms and potential hardware burnout.

Tip: Always cross-check part numbers of converter and inverter before power-on. Multiple field failures occurred due to incorrect matching.
DC Bus Polarity Miswiring

Risk: Reversed DC bus terminals instantly destroy inverter IGBT power modules.

Tip: Clearly label positive and negative bus cables before disconnecting old equipment. Do not rely on memory during rewiring.
Cooling Fan Degradation

Risk: Aging fans cause overheating trips under continuous heavy load.

Tip: Inspect fan rotation and noise during commissioning; replace worn fans proactively during maintenance.
ESD Damage

Risk: Static discharge damages onboard control signal circuits when opening module housing.

Tip: Wear ESD wrist strap and work on anti-static mat during internal inspection.
Missing Input Phase Protection

Risk: Blown input fuses or loose phase wiring leads to phase-loss fault and uneven DC bus voltage.

Tip: Torque all AC input terminals to specified torque values; inspect fuse integrity before startup.
