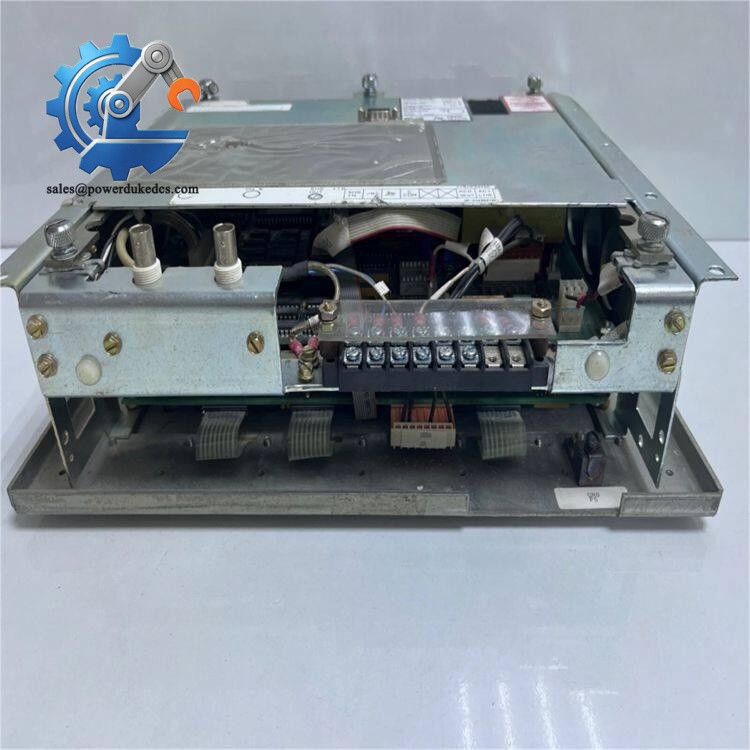

Reliance VZ7000 UVZ701E | Original Japan Digital Servo Drive Automation Spare

Product Core Brief

Model: UVZ701E (Series: VZ7000)
Brand: Reliance Electric (REJ, Japan)
Series: VZ7000 Digital AC Servo Drive Platform
Core Function: High-performance digital servo amplifier, closed-loop position/speed/torque control for synchronous & asynchronous servo motors
Type: Single-axis AC Servo Drive
Key Specs: Built-in SERCOS IEC61491 | High-speed DSP, 1256 rad/sec response | Independent control power supply
Condition: New Surplus / Tested Used, non-refurbished

⚠️ Discontinued original production; limited stock. Firmware version and encoder interface must match existing system before replacement.

Key Technical Specifications

Parameter	Details
Model Code	UVZ701E (VZ7000 Series)
Control Hardware	High-speed DSP digital control
Control Modes	Torque control, speed control, position closed-loop control
Speed Response	Up to 1256 rad/sec
Supported Encoders	Incremental encoder, high-resolution serial encoder, absolute encoder
Standard Communication	SERCOS (IEC/EN61491), RS232C for commissioning
Optional Fieldbus	DeviceNet, CC-Link, ControlNet
Control Power Supply	Single-phase AC 85–264 VAC (independent from main power circuit)
Cooling Method	Forced air cooling
Operating Temperature	-10 °C ~ +55 °C
Storage Temperature	-40 °C ~ +65 °C
Humidity	5%–95 %, non-condensing
Certification	UL, cUL, CE
Pre-Shipment Test	Complete bench power-on test, communication & motion verification, 24h energized soak test

Reliance VZ7000 UVZ701E

Product Introduction

Reliance UVZ701E belongs to the VZ7000 high-performance digital AC servo drive series manufactured by Reliance Electric Japan. It inherits mature control technology from the VZ3000/BL3000 product lines, designed for high-precision multi-axis synchronous motion applications.

The drive adopts independent control power circuit design. Even if main power is cut off, parameter checking and fault diagnosis can still be performed. The standard SERCOS digital interface realizes high-speed synchronous communication between servo controllers and multiple drives, supporting daisy-chained multi-axis systems. It supports various encoder feedback types to guarantee stable low-speed operation.

As Reliance ceased production of the VZ7000 platform, UVZ701E becomes critical maintenance spare for imported production machines. Full system migration costs are extremely high for end users, so verified spare drives are essential for minimizing downtime.

Application Scenarios & Pain Points

Servo drive failure triggers immediate machine shutdown. A large number of European and Japanese imported automation equipment adopt VZ7000 series drives. Official OEM procurement lead time for obsolete hardware often exceeds 12 weeks. Long production stops cause heavy order penalties.

Typical application scenarios:

CNC Machine Tools – Feed axis & rotary table motion control

High positioning accuracy requirements; stable dynamic response directly affects workpiece processing quality.
High-Speed Printing & Converting Equipment – Web tension control

Continuous material processing requires stable speed and torque output to avoid material stretching and waste.
Automated Packaging Machinery – Multi-axis synchronized motion

Filling, labeling and cartoning lines rely on coordinated servo movement; single axis fault stops the whole line.
Gantry Handling & Automation Assembly Lines – Pick & Place Axes

Demands repeatable positioning and fast dynamic response for continuous mass production.

Case Reference

A printing equipment manufacturer in Zhejiang encountered axis position runaway failure last quarter. On-site troubleshooting confirmed hardware fault on UVZ701E. Official Japanese sourcing lead time reached 13 weeks. Continuous production orders could not sustain long downtime.

The maintenance team purchased bench-tested UVZ701E spare unit. Before dismounting the faulty drive, technicians backed up all motor parameters, loop gain settings and SERCOS communication configuration. After hardware replacement, parameter recovery and servo tuning were completed within one working shift. The production line resumed stable operation.

Compatibility & Replacement Matrix

UVZ701E → UVZ701E : Direct plug-in replacement; verify firmware version and encoder interface definition

UVZ701E → UVZ7022 / UVZ7055 : Not interchangeable; different power rating and hardware circuit

UVZ701E → Other UVZ70xx suffix variants : Hardware pin difference; cannot direct swap without full re-commissioning

UVZ7000 Series → Modern servo drives (3rd party) : Functionally equivalent, requires mechanical modification, controller program rewriting, full machine commissioning, not plug-and-play.

Quality Control SOP

Incoming Inspection

Serial number record, full visual inspection. Check heatsink, power terminals, PCB for burn marks, dust corrosion and any traces of prior repair.
Live Bench Functional Test

Build VZ7000 simulation test bench. Verify power-on startup, fault detection, SERCOS communication, encoder feedback and motion output. Continuous 24-hour energized soak test.
Electrical Performance Test

500 V DC insulation resistance test, continuity inspection for power and signal terminals.
Documentation Retention

Record serial number, hardware revision, firmware version and complete test logs; test photos can be provided upon request.
Final Packing

ESD anti-static sealed packaging, bubble cushion protection, attached QC Pass inspection label.

Field Installation Pitfall Guide

❗ Firmware Version Matching

Different firmware versions have differences in SERCOS timing and encoder processing. Mismatched firmware leads to intermittent positioning errors or communication loss. Record firmware version of original drive before ordering.

❗ Complete Parameter Backup

Motor nameplate data, position/speed loop gains, electronic gear ratio and SERCOS address settings are stored locally. Always backup parameters before powering down faulty drive; manual entry easily causes oscillation or collision risks.

❗ Independent Control Power

Do not disconnect control power while main circuit is live. Improper power sequence will trigger unpredictable drive alarms.

❗ ESD Protection

Internal control PCB and encoder interface chips are static sensitive. Wear anti-static wristbands during wiring in low humidity environments.

❗ Cable Separation

Separate power motor cables and encoder signal cables to reduce EMI interference. Cross wiring often causes position drift and random drive faults.

❗ Cooling Maintenance

Ensure fan airflow is unobstructed. Dust accumulation on heatsink will trigger over-temperature alarms under continuous load.
