VIBRO-METER VM600 CPUM 200-595-067-114 | Rack Management Unit Supporting Module Hot-Swap

Product Core Brief

Model: VM600 CPUM 200-595-067-114
Brand: VIBRO-METER (Meggitt)
Series: VM600 Mk1 Machinery Protection System
Core Function: Acts as rack controller and communication gateway to manage all monitoring cards inside VM600 rack
Type: CPU / Rack Controller Module
Key Specs: Embedded LCD front panel; Dual Ethernet; Modbus TCP / PROFIBUS DP; 24 VDC power supply
Condition: New surplus, fully bench tested before dispatch

⚠️ Original manufacturer production discontinued; limited available spare inventory

Product Introduction

Turbomachinery protection racks cannot operate without a central coordinator — this is exactly the role of VIBRO-METER VM600 CPUM 200-595-067-114. It belongs to the legacy VM600 Mk1 platform, widely deployed on steam turbines, gas compressors and generators in oil & gas and power plants.

Unlike signal acquisition cards, this unit handles rack-wide configuration, alarm aggregation and data forwarding. It supports hot swap management for MPC4, AMC8 and XMx16 series cards, and exchanges vibration and speed data with DCS or VibroSight software. It runs stably within -20 °C to +70 °C, matching the environmental requirements of field control cabinets.

Key Technical Specifications

Item	Parameter
Full Part Number	VM600 CPUM 200-595-067-114
Official Name	Modular CPU Rack Controller Card
Compatible System	VM600 Mk1 Machinery Protection System
Required Matching Card	IOCN communication module
Power Input	24 VDC ±15%
Onboard Memory	256 MB DRAM
Operating System	QNX real-time OS
Communication Ports	Dual Ethernet, RS232, Serial Fieldbus
Supported Protocols	Modbus TCP, PROFIBUS DP, Meggitt proprietary protocol
Local Interface	Front LCD display + navigation keys, alarm reset button
Operating Temperature	-20 °C ~ +70 °C
Relative Humidity	5% – 95%, non-condensing
Mounting	Standard VM600 rack slot installation

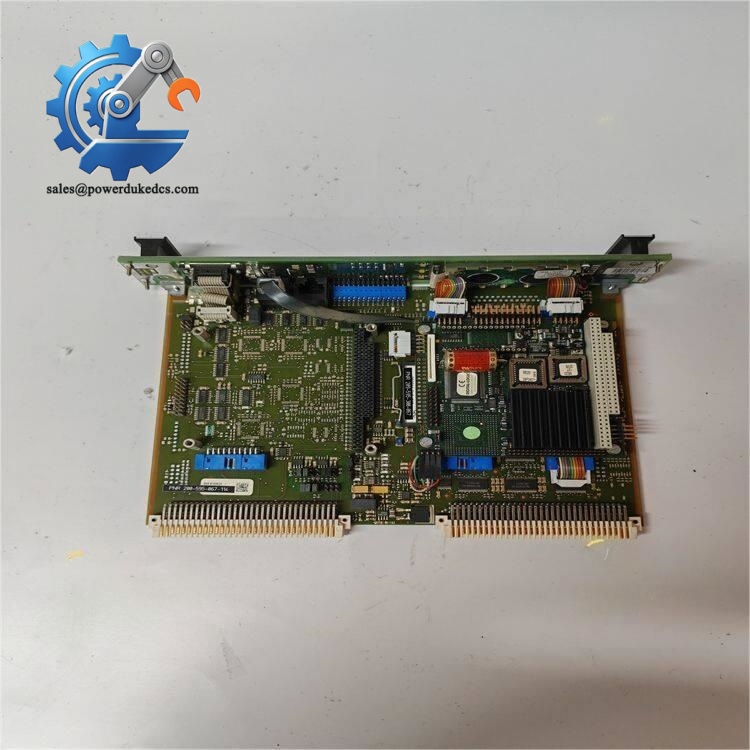

VIBRO-METER VM600 CPUM 200-595-067-114

Product Quality Control Process

Every incoming VM600 CPUM unit follows fixed inspection workflows before delivery.

Incoming Inspection

Check serial number traceability and physical condition. Verify no PCB repair traces, connector deformation or board corrosion. Confirm front panel LCD and buttons function normally.
Live Bench Test

Install the module inside a complete VM600 test rack paired with IOCN. Complete power-on initialization, LED diagnostic check, front panel operation test and network communication handshake. Continuous 24-hour ageing test records operating temperature. We can provide test photos or video upon request.
Electrical Performance Test

Insulation resistance test with 500 V megohmmeter. Verify ground continuity and check for abnormal leakage current.
Firmware Record

Read and record current firmware revision. We can match customer target firmware version before shipment if required.
Final Packaging & QC Sign-off

Passed modules are sealed in anti-static bags, wrapped with bubble film and packed into cartons. Each unit carries a QC Passed label printed with inspection date.

Field Pitfall Guide for Replacement

Firmware Version Mismatch

Different firmware builds change rack communication logic and alarm handling rules. Always record the firmware version of the faulty CPUM before ordering. One site case: engineers swapped the module without checking revision, and the rack lost communication with the plant DCS for 18 hours.
Mandatory IOCN Matching

CPUM cannot work independently. It must be paired with a corresponding IOCN module in the rack. Many maintenance teams mistakenly install CPUM alone and face continuous startup faults.
Front Panel Configuration Backup

All rack parameters are stored inside CPUM. Export full configuration files before removing the module. Direct hardware replacement will result in blank settings and lost protection logic.
ESD Protection

Always wear anti-static wristbands during handling. Static discharge can damage onboard memory and communication circuits. Risks rise significantly in low-humidity winter environments.
Slot Position Rule

CPUM must be installed in Slot 0 of the VM600 rack. Insertion into other slots will trigger permanent diagnostic failure codes.

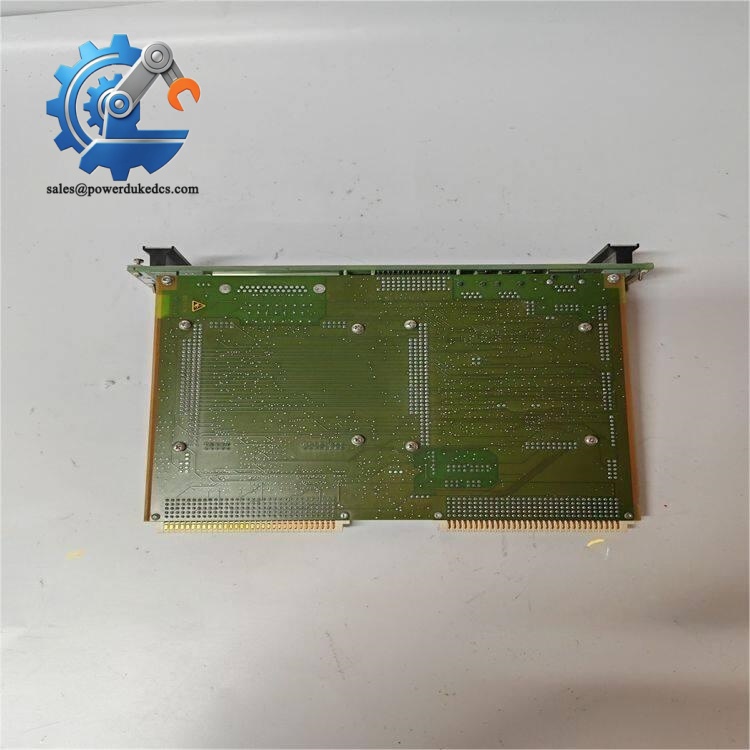

VIBRO-METER VM600 CPUM 200-595-067-114

Frequently Asked Questions

Q1: Can this module work with VM600 Mk2 racks?

A1: No. It is designed exclusively for VM600 Mk1 system. Mk2 platforms adopt upgraded CPUMMk2 modules and cannot directly accept CPUM Mk1 hardware.

Q2: Is this factory sealed original new stock?

A2: OEM production has been discontinued. Available units are new surplus stock, fully tested. We can supply complete test documentation.

Q3: What does the warranty cover?

A3: 12-month warranty starting from delivery date. Warranty excludes damage caused by incorrect wiring, static shock or overvoltage on site.

Q4: Can you pre-load customer site firmware?

A4: Yes. Send your current firmware version, and we complete firmware matching before shipment.
