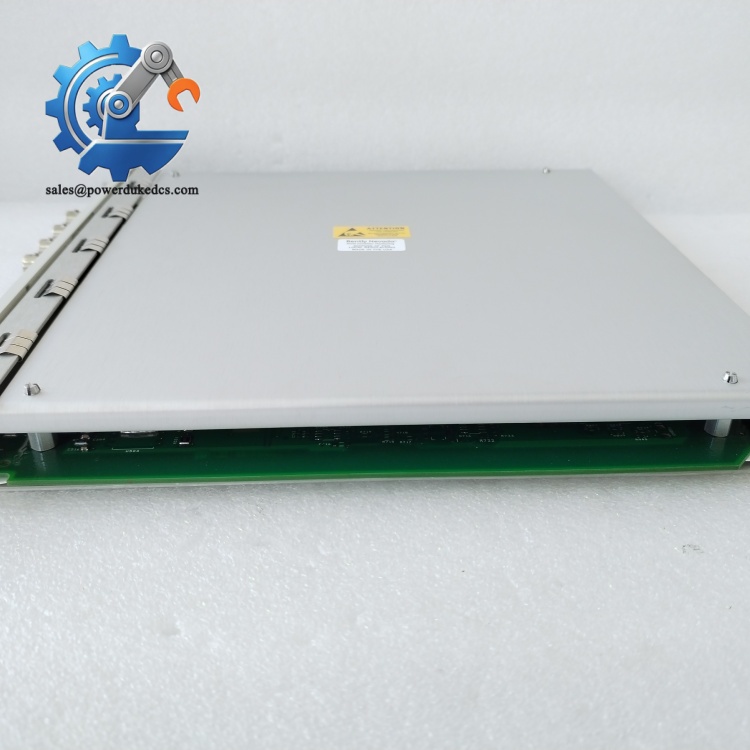

Product Core Brief

• Model: 3500/42M 176449-02
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Core Function: Collect and process proximity and seismic sensor signals for rotating equipment protection
• Type: Proximitor / Seismic Monitor Module
• Key Specs: 4 programmable channels; Supports proximity & seismic transducers; Configurable via 3500 Rack Software Condition: New Surplus, not refurbished ⚠️ This module remains active production; adequate stock available.

Product Introduction

When turbine or compressor protection systems lose vibration monitoring signals, unplanned shutdown risks rise sharply. The 3500/42M 176449-02 serves as a core signal processing unit inside the Bently Nevada 3500 rack.

It differs from single-function monitor cards by supporting dual measurement modes in channel pairs. Each group of two channels can run independent monitoring tasks. The module delivers stable signal conditioning with low inherent noise, suited for continuous online monitoring on steam turbines, gas turbines and large centrifugal compressors. On-site verified MTBF exceeds 50,000 hours under standard industrial operating conditions.

Key Technical Specifications

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated 10 min)

⚠️ Safety Reminders

1. Coordinate shutdown schedules with operation teams.
2. Set all controlled rotating equipment to safe static status.
3. Cut off rack power and wait minimum 5 minutes for internal capacitor discharge.

Tools required

• Anti-static wrist strap and anti-static mat
• PH1 screwdriver
• Digital multimeter
• Mobile phone for photo recording
• Marker and cable labels

Backup work

• Export full rack configuration file and save copies offline.
• Capture clear photos: module slot position, wiring terminals, existing channel configuration.
• Record all transducer parameters used for current measurement setup.

Phase 2: Old Module Removal (Estimated 12 min)

1. Confirm rack power remains disconnected.
2. Unplug the matching I/O termination module wiring. Label each cable terminal to avoid misconnection.
3. Release the locking latch on the module front panel.
4. Pull the module straight outward. Do not twist or tilt during extraction to avoid damaging backplane pins.
5. Inspect rack backplane connectors for bent pins, dust or corrosion. Blow clean with dry compressed air if needed.

⚠️ Keep photos of old module installation for reference. Many field errors happen due to lost wiring records.

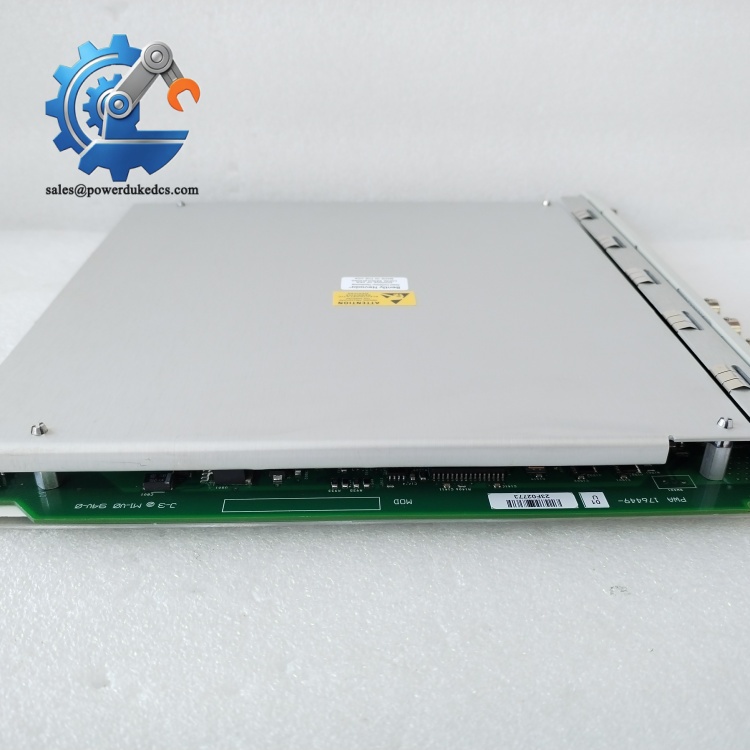

Bently Nevada 3500/42M 176449-02

Phase 3: New Module Installation (Estimated 15 min)

1. Wear anti-static gear before unpacking the module from ESD shielding bag.
2. Verify part number: 3500/42M 176449-02 matches replacement requirement.
3. Insert module vertically into the target slot, push firmly until front latch clicks into locked position.
4. Mount corresponding I/O termination board and restore sensor wiring following labeled records.
5. Double-check all terminal screw torque; over-tightening may crack terminal blocks.

Self-check list [ ] Module fully locked in rack slot [ ] All sensor cables correctly reconnected [ ] No loose wiring inside the rack frame [ ] No leftover tools inside the cabinet

Phase 4: Power-On & Commissioning (Estimated 25 min)

Pre-power inspection

• Measure rack supply voltage to confirm 24 V DC within tolerance range.
• Confirm no short circuits between power and ground terminals.

Power-on steps

1. Energize the 3500 rack only; do not start rotating machinery immediately.
2. Observe front panel LED indicators: steady RUN light indicates normal startup. Flashing ERR light signals configuration or hardware issues.
3. Connect PC with 3500 configuration software, scan rack and identify the new monitor module.
4. Load the saved configuration file and download parameters to the 3500 rack.
5. Verify each channel recognizes transducer signals. Perform signal verification on every probe loop.
6. Run continuous monitoring test for minimum 30 minutes. Confirm no persistent alarms or signal dropouts.
7. Record serial number, replacement date and configuration version into equipment maintenance logs.

Troubleshooting tips

• No transducer signal: Check probe cable continuity and wiring pin definition on I/O module.
• Persistent channel error: Confirm software channel settings match transducer type.
• Communication failure: Check rack network wiring and software communication settings.

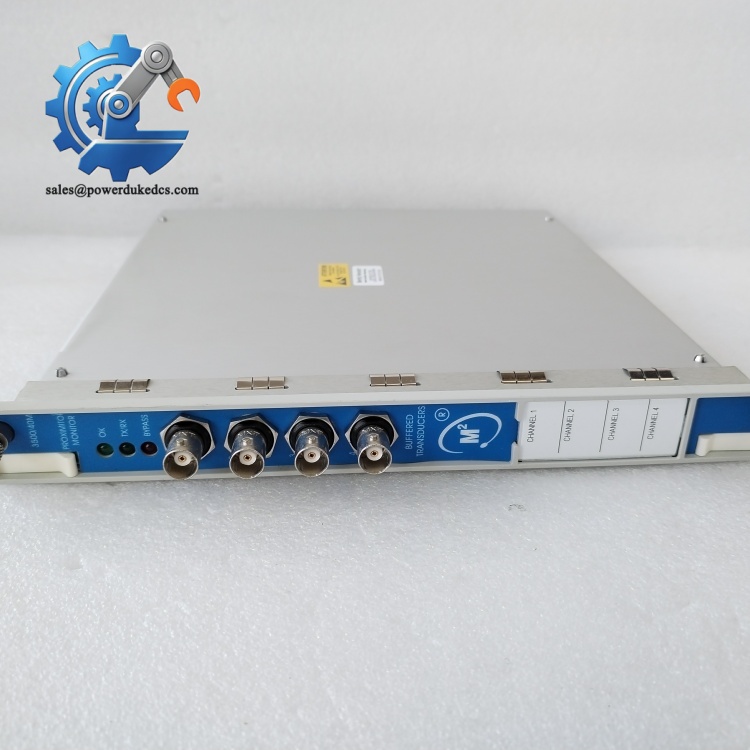

  Bently Nevada 3500/42M 176449-02

Frequently Asked Questions (FAQ)

1. Can 3500/42M 176449-02 directly replace older 3500/40M modules? Hardware fits the same rack slot, but you must recheck channel configuration. The internal signal processing logic differs. Direct plug-and-play without parameter adjustment often triggers measurement alarms. Download revised configuration after replacement.
2. Does this module support hot-swap operation? The 3500 rack allows hot removal and insertion of modules. However, active monitoring channels will lose protection during replacement. Plan a scheduled shutdown to avoid machinery protection loss.
3. Which I/O termination board matches the 176449-02 mainboard? It requires 128229 series I/O modules. Different suffix codes correspond to internal termination or external termination versions. Confirm your existing termination board model before ordering.
4. Can one single 3500/42M channel simultaneously measure vibration and thrust position? Channels work in fixed pairs (Channel1+2, Channel3+4). Each pair executes one measurement function. You cannot assign two different measurement tasks to one single channel.
5. What warranty is provided for the supplied 3500/42M 176449-02? We offer a 12-month warranty. All units pass complete bench testing before shipment. Test photos and reports can be provided upon request.
6. Is the module compatible with all 3500 rack firmware versions? Older rack firmware versions may lack full support for all measurement functions. Confirm your rack firmware revision. Upgrade rack firmware if incompatibility warnings appear after installation.
7. Can seismic sensors and proximity probes run on the same 3500/42M module? Yes. You can configure channel pair 1-2 for proximity probes and channel pair 3-4 for seismic sensors. Cross-type mixing is allowed as long as each pair uses uniform transducer types.
