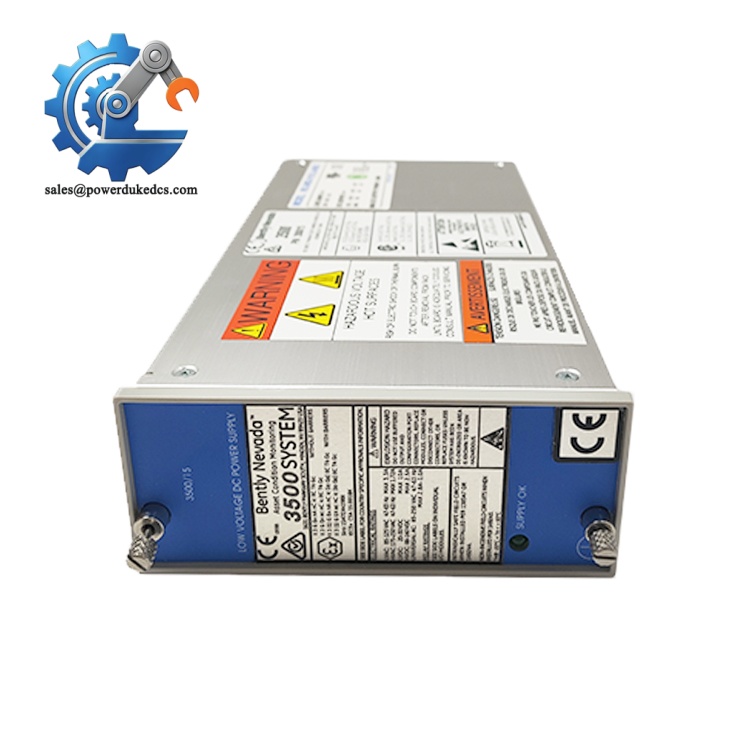

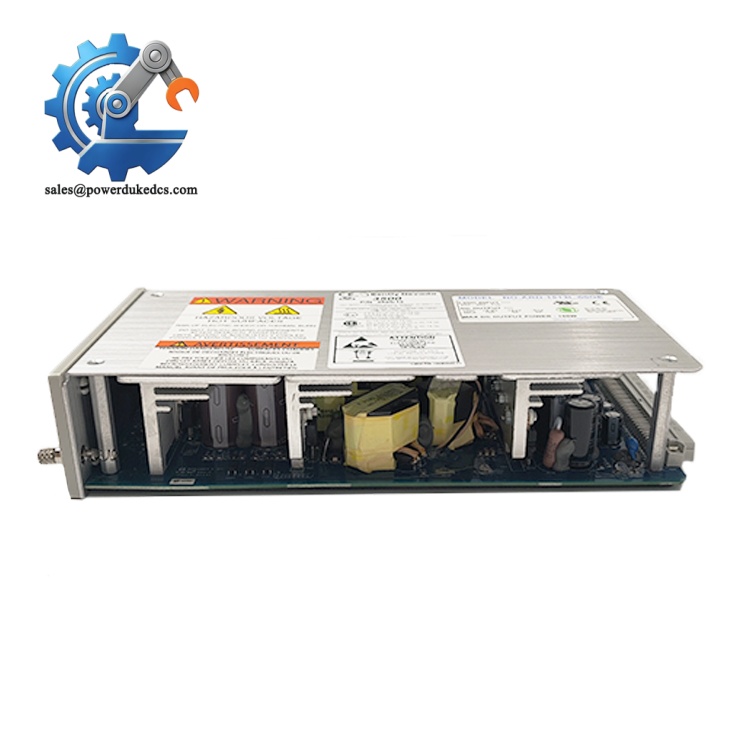

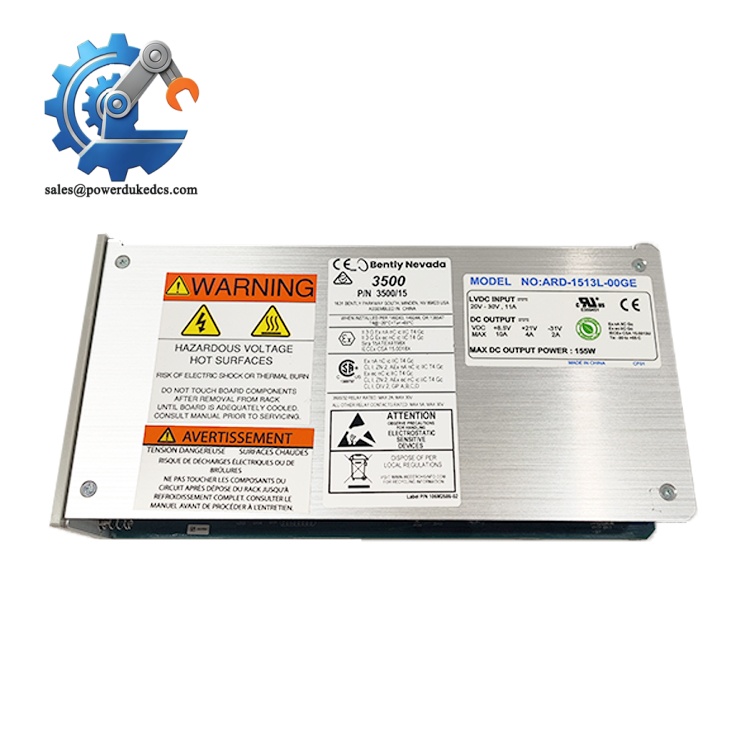

- Bently Nevada 125840-02 Module | Industrial Machinery Protection Power Spare Component
Product Core Brief
- Model: 3500/15 125840-02
- Brand: BENTLY Nevada (Baker Hughes)
- Series: 3500 Machinery Protection System
- Core Function: Low voltage AC power input module, feeds power supply unit inside 3500 rack
- Type: Power Input Module (PIM)
- Key Specs: 85–132 VAC input, 47–63 Hz, half-height slot mounting, hazardous area certified
- Condition: New Surplus, non-refurbished unit
- Status: ⚠️ Officially discontinued, limited genuine spare inventory
Product Introduction
Power supply failures on Bently 3500 monitoring racks disable vibration and thrust monitoring for critical turbines and compressors. The 3500/15 125840-02 acts as the low voltage AC power input interface, transferring mains power to the main power supply module within the 3500 rack assembly.
This half-height PIM installs directly behind the corresponding 3500/15 power supply card. It provides input overvoltage protection and standardized power feed for all monitoring modules in the rack. Widely deployed in power plants, petrochemical and gas compression facilities, it supports single or redundant power configurations. When dual power supplies are fitted, either unit can sustain full rack operation. It meets ATEX and industrial EMC standards required for machinery protection applications.
Key Technical Specifications
| Parameter Item | Technical Value |
|---|---|
| Full Part Number | 3500/15 125840-02 |
| Device Type | Low Voltage AC Power Input Module (PIM) |
| Input Voltage Range | 85–132 VAC rms |
| Input Frequency | 47–63 Hz |
| Mounting Format | Half-height, left dedicated slot of 3500 rack |
| Operating Temperature | -30 °C ~ +65 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity Rating | Up to 95% non-condensing |
| Safety Certification | Class I Zone 2 hazardous area compliance |
| Compatible System | Bently Nevada 3500 series machinery protection rack |
| Reference Reliability | MTBF ≥ 44,000 hours under rated operating conditions |
Bently Nevada 3500/15 125840-02
Installation & Configuration Guide
Phase 1: Pre-Installation Preparation (10 Minutes)
⚠️ Safety Priority Notify operation staff; critical machine vibration monitoring will be interrupted during maintenance. Cut off all AC power to the 3500 rack. Wait minimum 5 minutes to discharge internal power supply capacitors. Warning: Do not disconnect live wiring inside hazardous classified zones.
Tool Preparation ESD anti-static wristband and mat, PH1 cross screwdriver, multimeter, mobile phone for photo recording, marker labels.
Recording & Backup Capture clear photos of AC wiring terminals, module position and rack slot layout. Record all cable labels for fast reconnection. Save 3500 system configuration via software.
Phase 2: Old Module Removal (7 Minutes)
- Label each AC input wire before disconnection to avoid wiring polarity errors.
- Loosen terminal screws counterclockwise and detach power cables gently.
- Release front panel latches, pull the power supply module outward first. The PIM sits directly behind the power unit.
- Extract the 125840-02 PIM horizontally. Avoid twisting to protect backplane contacts.
- Inspect rack backplane pins for oxidation or bending; clean dust with dry compressed air if needed.
⚠️ Critical Reminder: Static electricity can damage internal circuit components. Do not touch PCB traces or chips directly.
Bently Nevada 3500/15 125840-02
Phase 3: New Module Installation (12 Minutes)
- Wear anti-static wristband before removing 3500/15 125840-02 from ESD packaging.
- Double-check full part number to confirm matching specifications.
- Insert the PIM into the dedicated rear slot, align properly before pushing fully home.
- Mount the matched 3500/15 power supply module in front of the PIM and lock latches.
- Reconnect AC input cables strictly according to photographed records. Tighten terminals with moderate torque.
Self-Check List [ ] PIM and power supply fully seated in rack slot [ ] AC wiring terminals secured without loose strands [ ] No exposed live conductors inside cabinet [ ] No leftover tools inside control rack
Phase 4: Power-On & Functional Testing (15 Minutes)
Use multimeter to confirm no short circuits on AC input terminals before energizing. Restore mains power gradually. Observe the Supply OK LED on the front of power supply unit. Steady light indicates normal operation. Launch 3500 System software to confirm rack communication, verify all vibration channels are recognized. Maintain continuous monitoring over 30 minutes. Confirm no power alarms or intermittent channel dropout. Log replacement date, module serial number and test results into equipment maintenance records.
Troubleshooting Tips
- Supply OK LED off: Check AC input voltage, wiring continuity and internal fuse status on PIM
- Random system restarts: Verify cable shielding and confirm no overload on rack power bus
Bently Nevada 3500/15 125840-02
Frequently Asked Questions (FAQ)
1. Can I hot-swap the 3500/15 125840-02 PIM while the rack remains powered? Hot swap is only safe if a fully functional redundant power supply is already active in the second slot. If running on a single power channel, power removal will shut down the entire monitoring rack. Most site safety procedures still require full power isolation for PIM replacement.
2. Does 125840-02 work with universal AC or high voltage AC power supply variants? No. This unit is dedicated low voltage AC PIM (85–132 VAC). It cannot pair with high voltage AC or DC power supply modules. Always match PIM part number to your power supply variant.
3. Are there direct drop-in substitute modules once 125840-02 stock depletes? Genuine direct compatible replacements are limited. Later updated PIM versions cannot be used interchangeably without rack configuration review. Facilities with turbine protection systems should complete last-time-buy planning while spare stock is available.
4. What quality testing do you perform on this unit before shipment? Every module undergoes visual inspection, continuity testing, power cycling test and 24-hour continuous burn-in monitoring. We can supply test photos or video records upon request, and each unit comes with standard warranty coverage.
5. Why do PIM modules fail prematurely in coastal or humid plant environments? High humidity and salt mist accelerate corrosion on PCB terminals and internal fuse holders. Cabinets need stable humidity control and regular air filtration maintenance to extend service life.
6. Is Bently Nevada still manufacturing 3500/15 125840-02? This low voltage AC power input module has reached official end-of-life. No new factory production. Current available stock consists of genuine new surplus inventory. Asset teams operating critical rotating machinery should evaluate long-term spare stocking requirements.
