Bently Nevada 3500/70 140471-01 | API 670 Compliant Machinery Protection Module

Product Core Brief

Model: 3500/70, Part No. 140471-01
Brand: Bently Nevada (Baker Hughes)
Series: 3500 Machinery Protection System
Core Function: 4-channel monitor for reciprocating compressor vibration & impulse velocity protection
Type: Reciprocating Impulse Velocity Monitor Module
Key Specs: 4 input channels | Supports seismic transducers | Dual programmable alarm levels
Condition: New Surplus, non-refurbished

⚠️ Discontinued original production, limited stock available

Key Technical Specifications

Parameter	Specification
Full Model	3500/70 (140471-01)
Number of Channels	4 configurable input channels (operated in channel pairs)
Supported Measurements	Recip impulse acceleration, reciprocating velocity, low-frequency reciprocating velocity
Sensor Compatibility	Seismic velocity / acceleration transducers
Alarm Configuration	Alert + Danger setpoints per active measurement
Rack Compatibility	Standard Bently Nevada 3500 series rack backplane
Power Consumption	5.5 W typical
Operating Temperature	0 °C ~ 60 °C (control cabinet environment)
Compliance Standard	API 670, CE, CSA
Configuration Tool	3500 Rack Configuration Software
Front Panel Indicator	OK, Bypass, Channel Status LED indicators

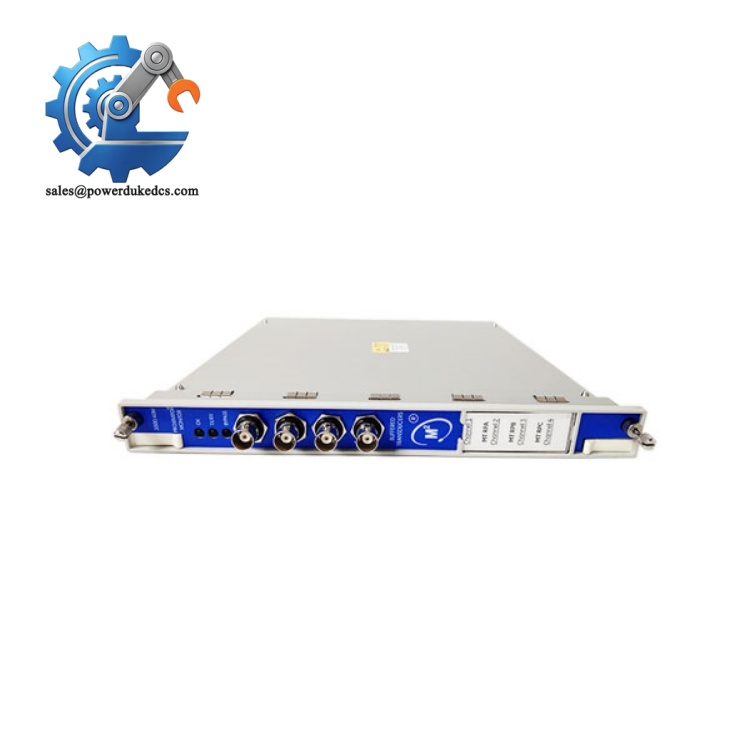

Bently Nevada 3500/70 140471-01 |

Product Introduction

The Bently Nevada 3500/70 (140471-01) reciprocating impulse velocity monitor is a dedicated monitoring module for the 3500 machinery protection rack system. It acquires vibration signals from seismic transducers mounted on reciprocating compressors and processes mechanical impulse and velocity data continuously.

This module delivers critical machinery protection and condition monitoring. It compares real-time measured values against user-defined alarm thresholds and triggers relay outputs for alert or machine shutdown. Different from general vibration monitors, it features optimized signal algorithms for reciprocating equipment, effectively identifying crosshead looseness, frame vibration and impact faults that commonly occur on reciprocating compressors. It supports seamless data upload to System 1 or plant DCS platforms for long-term equipment trend analysis.

Application Scenarios & Pain Points

Last winter, a natural gas processing plant suffered an unplanned shutdown after a reciprocating compressor crosshead failure. Without continuous vibration monitoring, the developing mechanical defect could not be captured until severe damage happened. Every unplanned shutdown of reciprocating compression units leads to huge feed gas processing losses, which makes dedicated reciprocating monitoring modules essential for upstream oil & gas facilities.

Typical Application Scenarios:

Oil & Gas – Reciprocating natural gas compressors

Monitor crosshead acceleration, frame vibration and impact events; prevent catastrophic mechanical failure during continuous compression operation.
Petrochemical Plants – Process reciprocating compressors

Protect hydrogen, nitrogen and refrigerant compressors running under high-pressure cyclic working conditions.
Gas Storage & Pipeline Stations – Booster compression units

Provide machinery protection to meet API 670 safety requirements for remote unattended compressor stations.
Refineries – Reciprocating process compressors

Capture early wear signals of connecting rods, slide rails and crosshead assemblies for predictive maintenance.

Case Reference:

A Sichuan natural gas purification plant’s reciprocating compressor unit was equipped with an aging 3500/70 module. The module occasionally generated false channel alarms and lost vibration data intermittently. The original manufacturer delivery lead time exceeded 12 weeks. The maintenance team purchased a spare 3500/70 140471-01 from stock. After completing configuration backup and channel parameter replication, technicians finished replacement within a single shift. Continuous monitoring recovered, and the plant avoided a scheduled shutdown for long-term equipment maintenance.

Compatibility & Replacement Matrix

3500/70 140471-01 → 3500/70M series: Requires firmware matching and software reconfiguration, not direct plug-and-play replacement

3500/70 140471-01 → 3500/70 140471-01: Direct replacement; confirm module hardware revision before ordering

3500/70 140471-01 → 3500/42M: Not compatible. 3500/42M is designed for rotating machinery proximity & seismic monitoring, algorithm cannot support reciprocating impulse measurement

Critical Replacement Notes

Firmware mismatch risk: If the new module firmware version differs from the existing rack configuration, communication errors or channel function failure may occur. Read and record firmware revision of the original module before procurement.
Configuration backup required: Export all channel measuring modes, alarm setpoints and transducer parameters via configuration software before removing the old module.
Sensor wiring check: Confirm transducer wiring terminals and shielding grounding method; improper grounding will introduce high noise to reciprocating vibration signals.
ESD protection: Always wear anti-static wristbands during module installation. The signal processing circuit is sensitive to electrostatic discharge.
Bently Nevada 3500/70 140471-01 |

Quality Control Process (Transparent Inspection Standard)

Incoming Inspection

Serial number verification, appearance inspection for corrosion, scratches or disassembly traces. Verify original accessory packing if available.
Bench Functional Live Test

Install module inside standard Bently Nevada 3500 test rack. Complete power-on self-test, LED indicator verification, backplane communication handshake. Simulate seismic sensor input signals to test all four measurement channels. Continuous 24-hour burn-in test with temperature tracking. Formal test report provided upon request.
Electrical Parameter Testing

Insulation resistance test, supply voltage stability test.
Firmware Recording

Read and record onboard firmware revision, save configuration template for reference.
Final QC & Packing

QC inspector confirmation, sealed in anti-static bag, packed with bubble wrap. QC passed label attached with inspection date. Test photos or short videos can be provided for customer verification.

On-site Pitfall Guide for Engineers

Firmware Revision Mismatch

I met a site case where engineers directly swapped the monitor module without checking firmware. After installation, the rack reported configuration inconsistency and all vibration channels went offline. Two working days were spent to coordinate firmware downgrade. Confirm firmware version in advance.
Lost Original Configuration

Many technicians do not export configuration before removing faulty modules. Without original channel setup, redoing all reciprocating measurement parameters takes hours of on-site work. Always back up configuration files.
Confusing 3500/70 and 3500/42M

Do not substitute 3500/42M for reciprocating compressor monitoring. The internal signal processing algorithm cannot extract reciprocating impulse velocity data, leading to missing fault detection.
Ignoring ESD Risk

Static damage to the signal front-end circuit is invisible. One winter project technician installed the module without anti-static protection. The input channel failed after power-up, and the module could not be repaired.
Incorrect Transducer Grounding

Reciprocating equipment has strong electromagnetic interference. Improper shielding grounding creates signal noise, causing frequent false alarms. Follow Bently Nevada wiring specification for single-end shield grounding.
