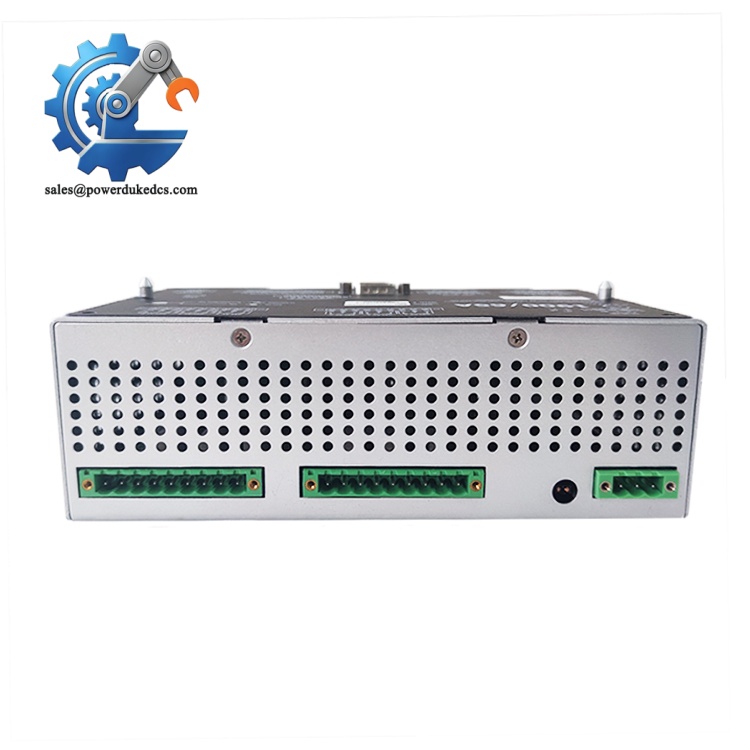

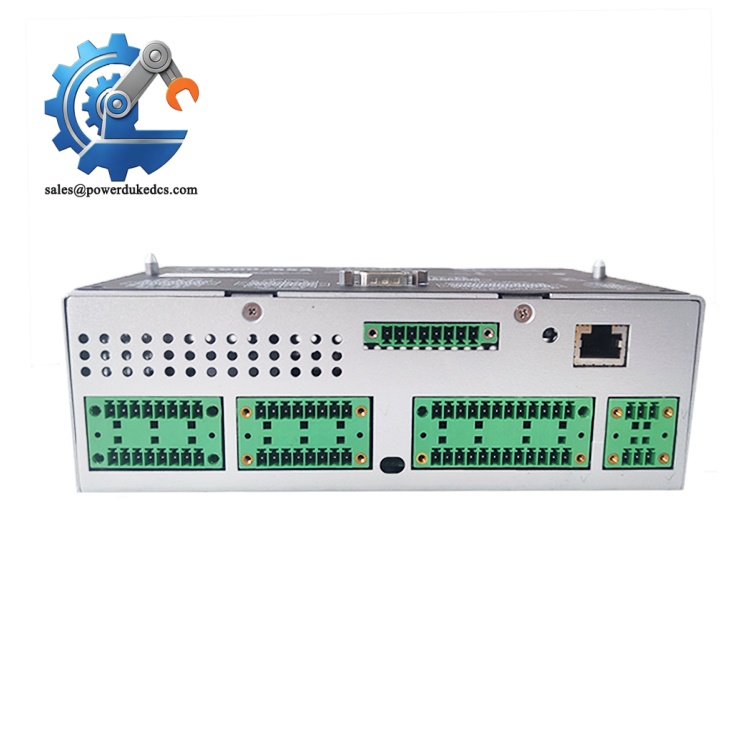

1. Bently Nevada 1900/65A-00-01-01-01-01 | DIN rail machinery monitor supporting Modbus RTU communication

Product Core Brief

• Model: 1900/65A-00-01-01-01-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 1900 Machinery Monitoring Series
• Core Function: Standalone unit for continuous vibration and temperature monitoring on balance-of-plant rotating assets
• Type: General Purpose Equipment Monitor
• Key Specs: 4 transducer inputs, 4 temperature inputs, 6 programmable SPDT relays, DIN rail mounting
• Condition: New Surplus, non-refurbished ⚠️ Discontinued model, limited stock on hand

Product Introduction

Many medium and small rotating machines lack dedicated protection because full rack monitoring systems carry excessive cost. The Bently Nevada 1900/65A-00-01-01-01-01 addresses this pain point as a compact, independent monitoring unit built for fans, pumps, blowers and small compressors.

Unlike rack-dependent monitoring modules, this unit runs standalone without additional chassis. It accepts vibration transducers and RTD/thermocouple signals simultaneously. Independent Alert and Danger thresholds can be set per channel, and relay logic supports flexible machine trip control. It works alongside DCS and SCADA systems via Modbus RTU, capturing trend data to identify bearing wear, imbalance and overheating before catastrophic failure.

Key Technical Specifications

Bently Nevada 1900/65A-00-01-01-01-01

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated: 10 minutes)

⚠️ Safety reminders

1. Coordinate with operation staff to arrange equipment shutdown window
2. Isolate all sensor cabling power; confirm field sensors are de-energized
3. Prepare ESD wrist strap and anti-static work surface to prevent circuit damage

Tools and preparation

• PH1 screwdriver, digital multimeter
• Laptop with official 1900 Configuration Software
• Mobile phone for wiring and terminal photo backup Backup tasks
• Document existing alarm setpoints and relay logic if replacing an active unit
• Photograph every terminal wiring connection before disassembly

Phase 2: Remove Old Monitor (Estimated: 9 minutes)

1. Cut off DC power supply to the monitor and wait 3 minutes for internal capacitors to discharge
2. Label each sensor cable, power wire and relay wiring terminal by terminal
3. Loosen terminal screws and detach all wiring sequentially
4. Release DIN rail locking clip and slide the old unit outward
5. Inspect rail mounting surface; clear accumulated dust with dry compressed air ⚠️ Do not pull cables forcefully, which may crack internal wire cores.


   Bently Nevada 1900/65A-00-01-01-01-01

Phase 3: Install New Monitor (Estimated: 14 minutes)

1. Unpack the new monitor only after completing static protection steps
2. Verify complete part number: 1900/65A-00-01-01-01-01
3. Clip the unit firmly onto standard 35 mm DIN rail and lock the bottom latch
4. Restore wiring strictly referencing saved photos: power lines, sensor loops, relay trip circuits Self-check list [ ] All terminal screws secured with moderate torque [ ] No exposed loose wire strands inside terminals [ ] Cable shielding follows single-end grounding specification [ ] No wiring cross-contact between signal and power circuits

Phase 4: Power-On & Function Testing (Estimated: 22 minutes)

Pre-power inspection

• Measure DC supply voltage to confirm it falls within 18–36 VDC
• Check for short circuits between positive and negative power terminals

Power-on steps

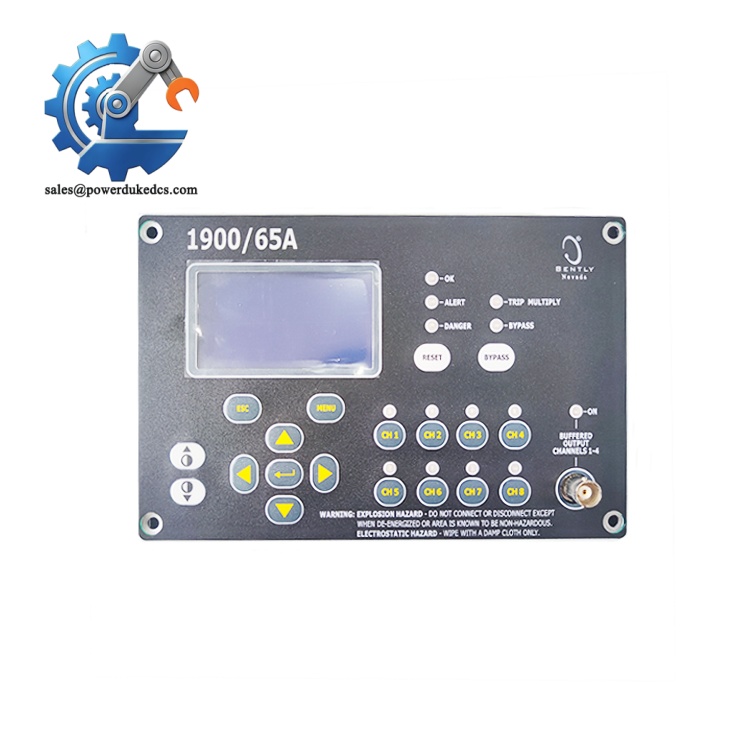

1. Restore DC power to the monitor; observe front panel status indicators
2. Connect configuration software and establish communication with the unit
3. Download saved configuration file, confirm transducer types, scaling values and alarm thresholds
4. Configure relay logic for Alert and Danger actions according to site protection scheme
5. Apply simulated sensor signals to test each input channel and relay triggering
6. Maintain continuous operation for minimum 30 minutes, check for unexpected alarms

Troubleshooting tips

• Communication failure: Verify RS485 wiring polarity and terminal resistance
• Persistent sensor invalid alarms: Check transducer power supply and cable integrity
• Relay fails to trigger: Review latching setting and logic programming inside configuration software


  Bently Nevada 1900/65A-00-01-01-01-01

Frequently Asked Questions (FAQ)

1. Can 1900/65A-00-01-01-01-01 run without connecting to a host PLC or DCS? Yes. It works fully standalone. Relays execute alarm and trip logic independently even when Modbus communication is lost. Data transmission to control systems is an optional extended function, not mandatory.
2. Can I mix vibration sensors and RTD temperature sensors on one unit? This is its core advantage. The four vibration channels and four temperature channels operate simultaneously. It is common to mount accelerometers on bearing housings and RTDs for motor winding temperature monitoring in one unit.
3. Are all 1900/65A variant codes interchangeable during direct replacement? No. Each dash code defines power option, display, communication and certification. Installing a variant with mismatched communication settings will cause data loss. Send the full part number when sourcing spare units.
4. Does this unit support hot swap while keeping sensors powered? Hardware allows power cycling without damaging sensors. Still, avoid live swapping during machine running. Sudden signal interruption can trigger undesired safety trips for fans and pumps. Perform replacement during planned shutdowns.
5. What software do I need to adjust alarm parameters? Official Bently Nevada 1900 Configuration Software. Generic Modbus tools can read real-time data, but sensor setup, threshold configuration and relay logic editing require dedicated configuration software.
6. Is 1900/65A still in original factory production? The whole 1900/65A platform has entered end-of-life status. No new factory production. Available stock consists of surplus inventory. If you maintain multiple plant assets, plan spare part purchasing in advance.
7. Can I use buffered sensor outputs to connect portable vibration analyzers? Yes. This monitor reserves dedicated buffered signal outputs for each transducer channel. Technicians can connect portable test instruments without disconnecting online monitoring wiring.
