Bently Nevada 3500/70 125720-01 | Vibration Impulse Monitoring Module For Reciprocating Equipment

Description

1. Bently Nevada 3500/70 125720-01 | Vibration Impulse Monitoring Module For Reciprocating Equipment

Product Core Brief

• Model: 3500/70, PWA 125720-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection & TSI Monitoring System
• Core Function: Collect impulse and velocity vibration signals for continuous monitoring of reciprocating compressors
• Type: Reciprocating Machinery Impulse & Velocity Monitor Module
• Key Specs: 4 independent input channels, supports accelerometer & velocity transducers, built-in transducer power supply
• Condition: New Surplus, non-refurbished ⚠️ Original manufacturing discontinued; limited stock for plant retrofit projects

Product Introduction

Unmonitored valve impact and crosshead vibration on reciprocating compressors can trigger catastrophic mechanical failure and unplanned shutdown. The Bently Nevada 3500/70 125720-01 serves as a dedicated signal acquisition card built exclusively for reciprocating machinery within the 3500 rack architecture. It processes impulse and velocity vibration data to detect valve degradation, rider band wear and abnormal impact events.

This full-height module accepts signals from both piezoelectric accelerometers and Velomitor transducers, delivering continuous real-time measurement and configurable alarm/trip thresholds. Thousands of these units operate on reciprocating compressors in natural gas and petrochemical facilities. One practical detail to remember: this module cannot perform rod position measurement; select 3500/72M if piston rod displacement monitoring is required.

Key Technical Specifications

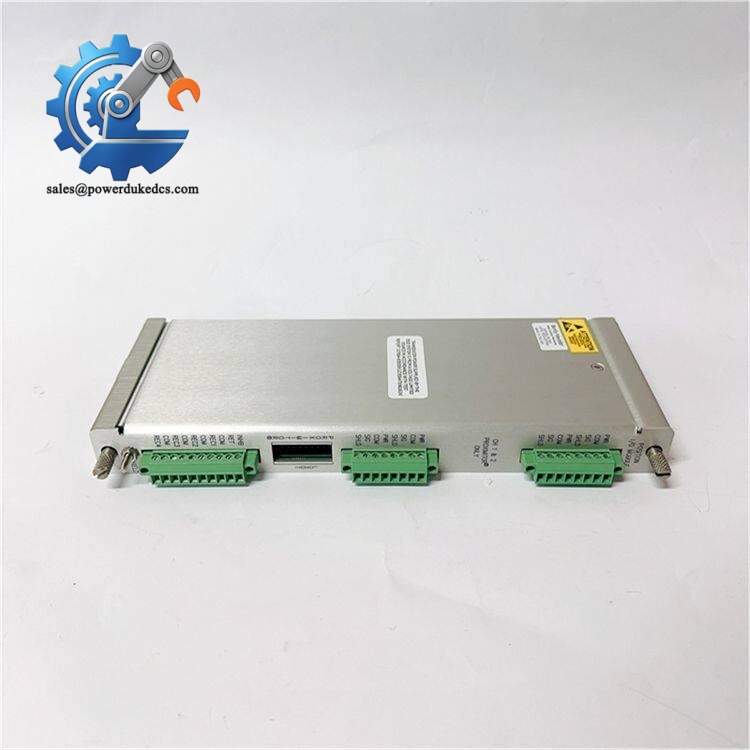

Bently Nevada 3500/70 125720-01

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (12 Minutes)

⚠️ Safety Priority Notify operation teams of planned rack maintenance. Confirm reciprocating compressor stays under stable operating status. Evaluate risk before hot-swap execution; stop the machine if site safety protocols prohibit live rack modification. Cut rack power fully if shutdown is approved.

Tool Preparation ESD wrist strap and anti-static mat, PH1 screwdriver, Fluke multimeter, label tape, mobile phone for recording wiring and slot location.

Backup & Recording Save complete rack configuration via 3500 Rack Configuration Software. Photograph all field transducer wiring and exact slot position of the original 3500/70 module.

Stage 2: Old Module Removal (10 Minutes)

1. Disconnect all front terminal field wiring. Label each cable matching channel numbers before detachment.
2. Unlock front retaining latch, pull the module straight outward from rack backplane. Avoid twisting the circuit board.
3. Inspect backplane connector pins for bending, oxidation or dust. Clean contacts with dry compressed air when needed.

⚠️ Note: Record any handwritten channel sensitivity settings marked on the module housing for faster post-replacement setup.

Stage 3: New Module Installation (15 Minutes)

1. Wear ESD protection before removing 3500/70 125720-01 out of anti-static packaging.
2. Insert the new module into the identical rack slot used by the replaced unit.
3. Align board with internal guides, push fully home and lock the front latch securely.
4. Reconnect transducer cables strictly following labeled records. Double-check polarity for accelerometer wiring.

Self-Check List Target rack slot confirmed ✅ | Module fully latched into backplane ✅ | All sensor cables reconnected ✅ | Transducer polarity verified ✅

Stage 4: Power-On & Functional Testing (22 Minutes)

Carry out resistance check for short circuits before rack energization.

1. Restore rack power and wait for full initialization, which can take up to 90 seconds. Observe front panel OK LED status.
2. Connect configuration software, confirm the rack recognizes the new 3500/70 monitor.
3. Load saved configuration parameters; verify channel sensitivity, alarm and trip setpoints match original settings.
4. Perform transducer fault simulation test to confirm broken cable detection works normally.
5. Maintain continuous operation for 30 minutes. Monitor real-time vibration impulse readings; confirm no unexpected channel dropout. Record module serial number and replacement date in maintenance logs.

⚠️ Common commissioning trap: Incorrect transducer type selection in software will produce invalid vibration readings without triggering hardware faults.

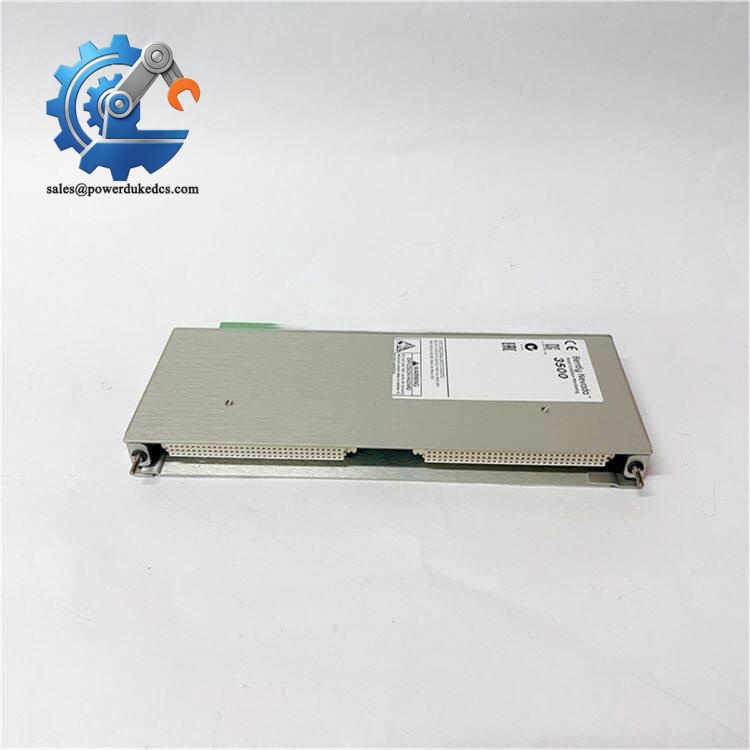

Bently Nevada 3500/70 125720-01

Frequently Asked Questions (FAQ)

1. Does 3500/70 125720-01 support hot swap inside a powered 3500 rack? Hardware supports hot insertion. Even so, many refinery and gas plant site procedures require risk assessment. Module replacement does not disable other monitoring channels, but affected reciprocating compressor vibration protection will be temporarily unavailable during swap.

2. What is the functional difference between 3500/70 and 3500/72M? 3500/70 is dedicated to reciprocating compressor impulse and velocity vibration monitoring. The 3500/72M focuses on piston rod position and rod drop measurement. The two modules cannot substitute each other; select based on your measurement requirements.

3. Can this module work with proximity probes for displacement measurement? No. It only supports accelerometers and Velomitor velocity sensors. Proximity probes require 3500/40M or 3500/42M monitor modules.

4. Is every channel independently configurable for different sensor types? Yes. Each of the four channels can be set separately for accelerometer or velocity transducer input inside the 3500 configuration tool.

5. What warranty coverage do you provide for this unit? We offer a 12-month warranty. Every module completes full rack bench testing and channel signal verification before shipment. Test photos or video can be provided upon request. Damage caused by reversed sensor polarity, ESD impact or wiring errors is excluded.

6. Can multiple 3500/70 modules be installed within one single 3500 rack? Yes. Multiple units can be deployed to monitor several reciprocating compressors sharing one rack, as long as total rack power consumption stays within the power supply rating.
