1. Product Core Brief

   • Model: 3500/91M 190782-01
   • Brand: Bently Nevada
   • Series: 3500 Machinery Protection System
   • Core Function: Transmit rack vibration and status data via EGD protocol to compatible turbine controllers
   • Type: EGD Communication Gateway Module
   • Key Specs: Supports EGD V2.01 & UDP/IP; 10/100 Mbps RJ45 Ethernet; Typical power consumption 7.4 W Condition: New Surplus, not refurbished ⚠️ This module targets GE Mark VIe system interconnection; stock quantity limited.

   Product Introduction

   Many steam turbine power plants need stable low-latency data exchange between 3500 TSI racks and Mark VIe control systems. The 3500/91M 190782-01 acts as a dedicated EGD communication gateway built exclusively for this interconnection scenario.

   Unlike the general-purpose 3500/92 Modbus gateway, this hardware only runs EGD protocol. It handles producer-consumer data exchange, uploading vibration readings, alarm status and rack diagnostics, while receiving remote commands such as alarm inhibit and trip reset. Field operation data shows steady signal transmission under continuous load, with verified MTBF exceeding 52,000 hours within standard industrial temperature ranges.

   Key Technical Specifications



   Parameter	Details
   Full Part Number	3500/91M, 190782-01
   Communication Protocol	EGD V2.01, Ethernet UDP/IP
   Ethernet Standard	IEEE 802.3, 10BASE-T / 100BASE-TX RJ45
   Typical Power Consumption	7.4 W
   Operating Temperature	-20 °C ~ +65 °C
   Humidity Range	5% ~ 95%, non-condensing
   Hardware Structure	Front main board + rear I/O assembly, single full rack slot
   Front Panel Indicators	OK status LED, TX/RX communication LED
   Software Requirement	3500 Rack Configuration Software V3.70 or higher
   Matching Hardware	Requires 3500/22M TDI module (firmware ≥ V1.20)
   System Limit	Only one 3500/91M gateway allowed per single 3500 rack

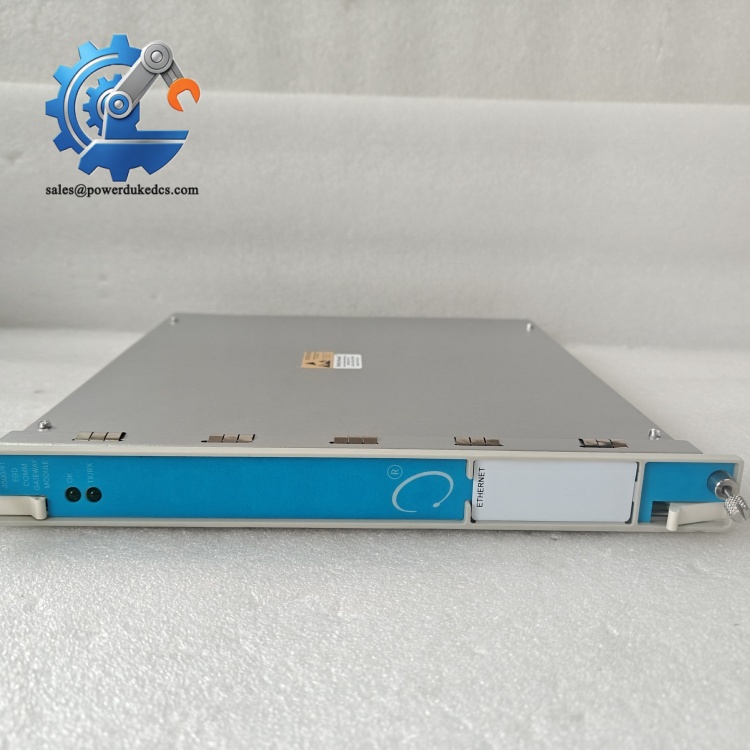

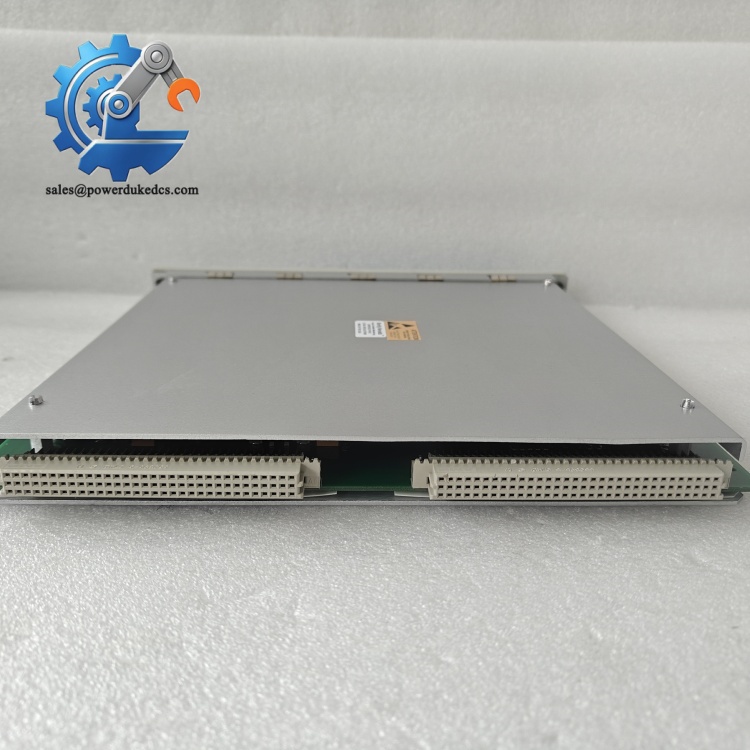

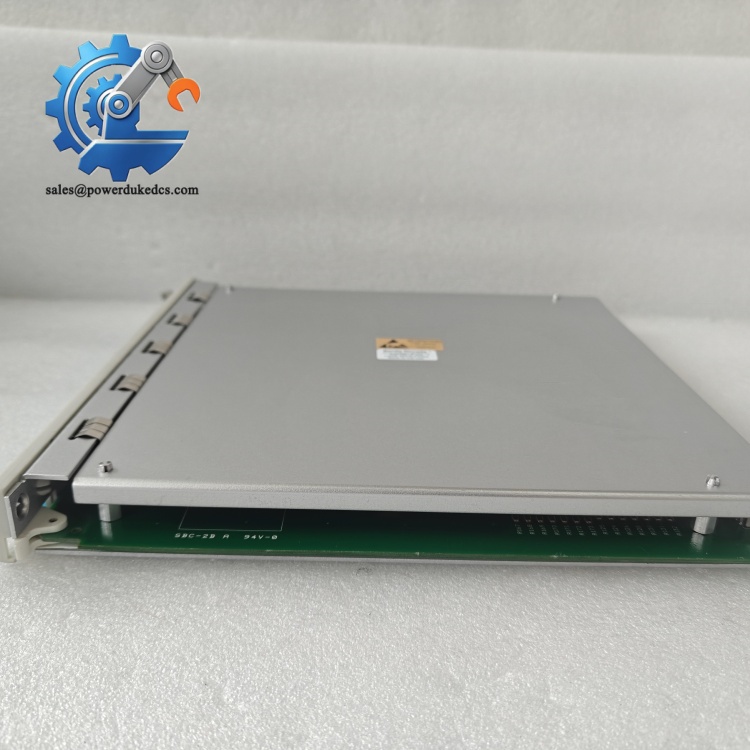

   Bently Nevada 3500/91M 190782-01

   Installation & Configuration Guide

   Phase 1: Pre-Installation (Estimated 10 min)

   ⚠️ Safety Reminders

   1. Coordinate maintenance window with operation staff. Communication loss will cut TSI data to turbine control system.
   2. Cut off rack power and wait minimum 5 minutes to discharge internal capacitors.

   Tools required

   • Anti-static wrist strap and anti-static mat
   • PH1 screwdriver
   • Digital multimeter
   • Mobile phone for photo recording
   • Shielded Cat5E Ethernet cable

   Backup work

   • Export full rack configuration file and save offline.
   • Capture clear photos: slot position, network wiring, IP address and EGD exchange parameter settings.
   • Record all producer/consumer data mapping tables for later recovery.

   Phase 2: Old Module Removal (Estimated 12 min)

   1. Confirm rack power stays disconnected throughout removal.
   2. Unplug RJ45 Ethernet cable and mark the cable clearly.
   3. Loosen front panel locking screws, pull the gateway assembly straight outward. Do not twist the module.
   4. Inspect rack backplane pins for bending, oxidation or dust. Blow debris away with dry compressed air.
   5. Double-check the removed part number to confirm it is 190782-01.

   ⚠️ Static damage frequently occurs during module extraction; keep anti-static protection active.



   Bently Nevada 3500/91M 190782-01

   Phase 3: New Module Installation (Estimated 15 min)

   1. Wear anti-static gear before opening the ESD shielding bag.
   2. Verify part number: 3500/91M 190782-01.
   3. Insert the module vertically into the target empty slot, push fully until front panel sits flush with other modules. Tighten locking screws.
   4. Reconnect shielded Ethernet cable following recorded wiring information.

   Self-check list [ ] Module fully locked into rack slot [ ] Ethernet cable firmly plugged into RJ45 port [ ] No loose wiring inside cabinet [ ] No leftover tools inside rack frame

   Phase 4: Power-On & Commissioning (Estimated 30 min)

   Pre-power inspection

   • Measure rack backplane supply voltage, confirm 24 V DC within normal tolerance.
   • Confirm no short-circuit on power terminals.

   Power-on steps

   1. Energize the 3500 rack only. Do not start rotating equipment immediately.
   2. Observe LED indicators: steady OK light represents normal startup. Flashing TX/RX means ongoing network data transmission.
   3. Connect PC with 3500 configuration software, scan rack and identify the new gateway module.
   4. Load saved configuration, restore static IP, producer and consumer exchange setup, download parameters to rack.
   5. Establish communication with GE Mark VIe controller, verify vibration data and alarm signals update continuously.
   6. Run continuous monitoring for minimum 30 minutes. Confirm no communication interruptions or data loss.
   7. Record serial number, replacement date and network parameters into equipment maintenance logs.

   Troubleshooting tips

   • No network link: Check shielded cable continuity and match IP subnet settings.
   • EGD data missing: Confirm 3500/22M TDI firmware meets minimum version requirement.
   • Module OK light flashing: Configuration mismatch or incorrect rack software version.


     Bently Nevada 3500/91M 190782-01

   Frequently Asked Questions (FAQ)

   1. Can 3500/91M 190782-01 replace 3500/92 Modbus gateway directly? No. The 3500/91M only supports EGD protocol. The 3500/92 works on Modbus TCP/RTU. Hardware slots are compatible, but communication protocols cannot be interchanged. You must match the controller’s supported protocol.
   2. Does this gateway support hot-swap operation? The 3500 rack physically supports hot insertion and removal. All EGD data transmission will stop during replacement. Schedule formal downtime to avoid losing machinery protection feedback.
   3. Can multiple 3500/91M modules be installed within one rack? Only one EGD gateway module can be deployed per 3500 rack. Adding a second unit triggers backplane communication conflict and configuration failure.
   4. Is the 3500/91M compatible with all versions of 3500 rack firmware? Older rack software cannot identify this module. You need 3500 Rack Configuration Software V3.70 or newer. Upgrade rack firmware if recognition errors appear after installation.
   5. What warranty can you provide for 3500/91M 190782-01? All units complete full communication bench testing before shipment. We provide a 12-month warranty. Test reports and inspection photos can be supplied upon request.
   6. Must I use shielded Ethernet cable for EGD communication? Strongly recommended. Turbine areas contain heavy electromagnetic interference. Unshielded cables easily trigger intermittent data dropout during unit startup.
   7. Can this module send data to SCADA systems without GE Mark VIe controllers? Limited availability. This gateway is purpose-built for EGD protocol. Standard SCADA platforms rarely support native EGD. Select 3500/92 Modbus gateway for regular DCS and SCADA access.
