1. Bently Nevada 3500/70 125720-01 | Machinery condition monitor certified for API 618 compressor systems

Product Core Brief

• Model: 3500/70, Part No. 125720-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection System
• Core Function: Collect angle-based vibration signals for reciprocating compressor fault diagnosis
• Type: Reciprocating Compressor Impact Velocity Monitor Module
• Key Specs: 4 independent measurement channels, requires Keyphasor signal, powered via rack backplane
• Condition: New Surplus, non-refurbished ⚠️ Discontinued model, limited stock available

Product Introduction

When abnormal knocks and crosshead failures occur on reciprocating compressors, operators need angle-resolved vibration data to pinpoint fault locations. The Bently Nevada 3500/70 125720-01 is purpose-built to meet this demand as a dedicated monitoring module inside the 3500 rack system.

Unlike general vibration monitors for rotating equipment, this module synchronizes all sampled data with Keyphasor pulses. It maps vibration amplitude against crankshaft angle, allowing maintenance teams to identify rod load deviation, valve damage and crosshead wear. The module supports continuous online monitoring under 0–65°C ambient temperature, and it works seamlessly with System 1 predictive maintenance software to store long-term trend data.

Key Technical Specifications

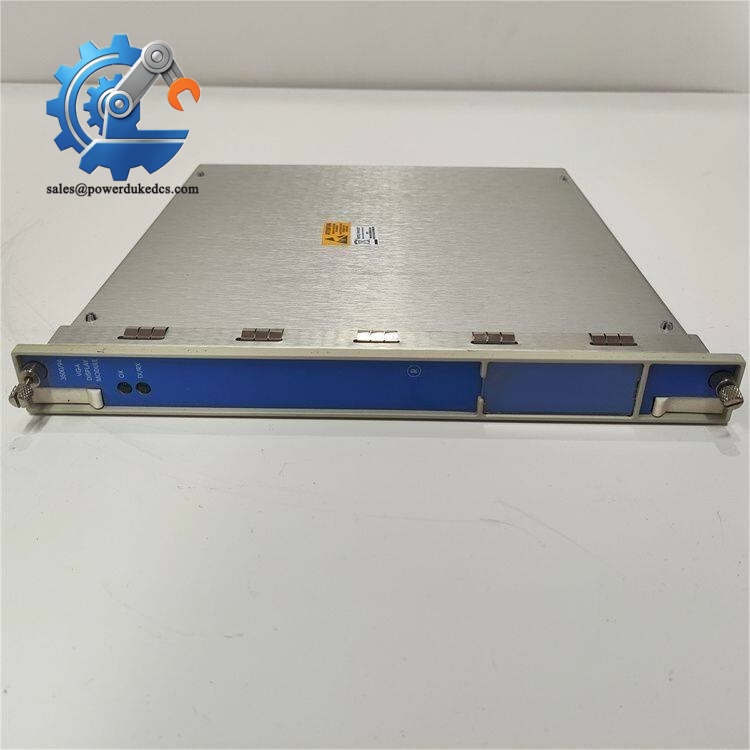

Bently Nevada 3500/70 125720-01

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated: 12 minutes)

⚠️ Safety reminders

1. Arrange machine shutdown window and confirm process safety interlocks are activated
2. Cut off the whole 3500 rack power, wait at least 5 minutes for internal capacitors to discharge
3. Wear ESD wrist strap and operate on anti-static mat

Tools and preparation

• PH1 screwdriver, digital multimeter
• Laptop with official 3500 rack configuration software
• Mobile phone for photo recording Backup tasks
• Export full rack configuration file and save copies
• Photograph existing module layout, terminal wiring and jumper settings
• Record firmware version of the module being replaced

Phase 2: Remove Old Module (Estimated: 10 minutes)

1. Unscrew two fixing screws on the module front panel
2. Disconnect rear I/O terminal wiring one by one, mark each cable number
3. Pull the module straight outward; do not twist to avoid bending backplane pins
4. Inspect rack backplane connectors, remove dust with dry compressed air ⚠️ Do not touch metal pins on backplane directly with bare hands

Phase 3: Install New Module (Estimated: 15 minutes)

1. Take the new module out of anti-static packaging only after ESD protection is ready
2. Double-check part number: 3500/70 125720-01
3. Align module with the target slot, push vertically until the module fits tightly with the backplane
4. Tighten front panel fixing screws with moderate torque
5. Recover sensor wiring strictly according to photos taken before removal Self-check list [ ] Module fully inserted without tilt [ ] All signal cables are securely locked [ ] No loose wires left inside rack [ ] No foreign tools inside the chassis

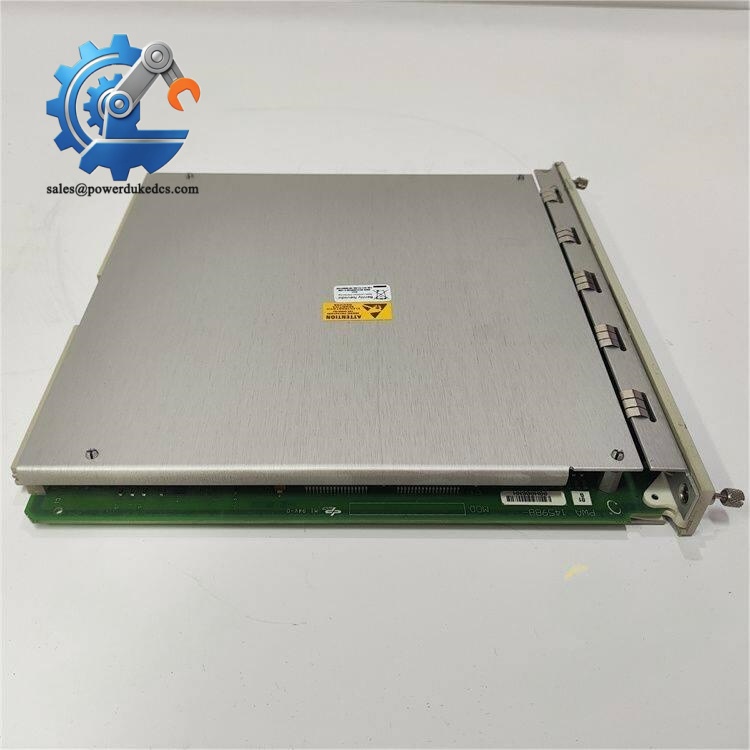

   Bently Nevada 3500/70 125720-01

Phase 4: Power-On & Function Testing (Estimated: 25 minutes)

Pre-power inspection

• Confirm no short circuit between power terminals
• Verify shielding ground follows single-end grounding specification

Power-on steps

1. Restore power supply to 3500 rack only; do not start compressors temporarily
2. Observe front LED indicators: steady green RUN light means normal initialization
3. Connect configuration software, scan rack and identify the new module
4. Compare module firmware version. Communication failures often come from firmware mismatch
5. Import saved configuration file and download parameters to the new module
6. Verify Keyphasor signal reception, test each of four measurement channels
7. Keep system running for minimum 30 minutes, check for persistent alarms

Troubleshooting tips

• ERR light flashing: check transducer wiring or firmware revision
• No angle synchronous data: confirm Keyphasor wiring and trigger setting
• Channel signal loss: inspect sensor cables for breakage or poor contact

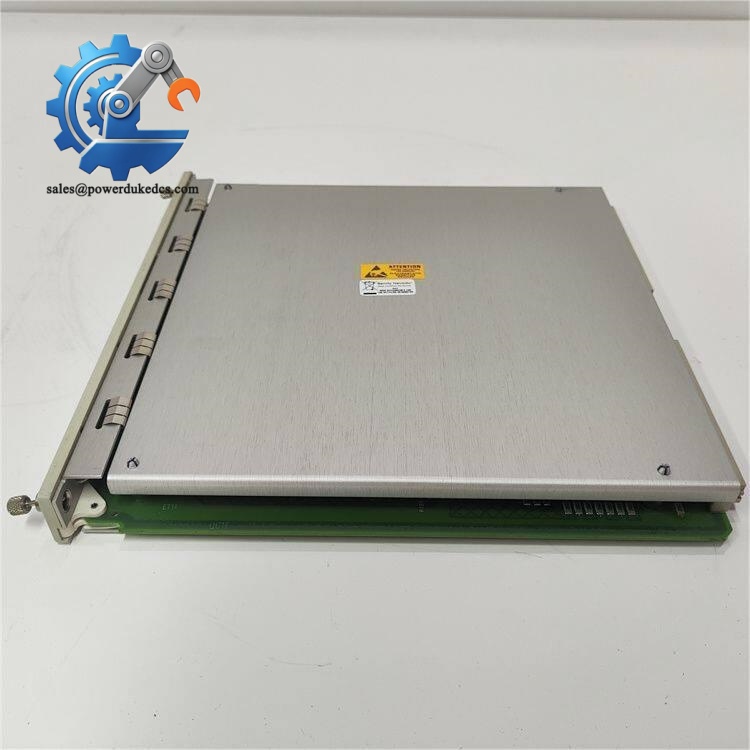

  Bently Nevada 3500/70 125720-01

Frequently Asked Questions (FAQ)

1. Can 3500/70 125720-01 be hot swapped without shutting down the rack? It supports hot-swap hardware design. But our field experience suggests avoiding hot replacement on running compressor racks. Unexpected signal interruption may trigger safety shutdown logic. Schedule replacement during planned maintenance whenever possible.
2. What is the difference between 3500/70 and 3500/70M? These two are not fully interchangeable. 3500/70 uses older firmware architecture, while 3500/70M adds updated signal filtering algorithms. Cross replacement may require full rack configuration rework. Match part number strictly during purchasing.
3. Does this module work with all types of reciprocating compressors? It fits API 618 standard reciprocating compressors. Measurement relies on accelerometer sensors installed on cylinder, crosshead and valve areas. Confirm your existing sensor model matches the module input specification before ordering.
4. How long is the warranty for 125720-01? We provide a 12-month functional warranty after shipment. The warranty covers internal circuit faults under normal industrial operating environment. Physical damage caused by wrong wiring or static discharge is not covered. We can supply test photos and test reports before delivery.
5. Will firmware version mismatch cause communication failure? This is one of the most frequent field faults. We once handled a case where engineers installed a newer module without checking firmware. The rack could recognize the hardware but failed to load configuration. Send us the firmware version of your current rack module before purchase, we can select matching stock.
6. Is 3500/70 125720-01 still produced by Bently Nevada? This model has entered end-of-life status. Original factory production stopped, only limited surplus inventory available. If you need spare parts for long-term maintenance, consider placing orders early.
7. Can this module output 4–20mA analog signals to DCS? The module itself does not have built-in analog output channels. If you need to transmit vibration data to external DCS systems, add a communication gateway module or use the 3500/62 process variable monitor for signal conversion.
