- 5SHY4045L0004 Industrial IGCT Module | High Stability for Heavy-Duty Power Applications
Product Core Brief
- Model: 5SHY4045L0004
- Brand: ABB
- Series: High-Power IGCT Thyristor Series
- Core Function: Controls high-voltage power switching and rectification for industrial power drive equipment
- Type: IGCT Power Semiconductor Module
- Key Specs: 4500V rated voltage, high surge current resistance, industrial-grade anti-interference performance
- Condition: New Original (New Surplus), zero disassembly and zero repair traces
- Status: ⚠️ Discontinued factory model, limited spot inventory
Product Introduction
High-power industrial drive systems rely heavily on stable power switching components to avoid sudden load tripping and equipment burnout. The ABB 5SHY4045L0004 is a core IGCT thyristor module customized for high-voltage power electronic scenarios. It serves as the key switching unit for ABB medium-voltage inverters, rectifiers and industrial power control equipment, widely used in energy, metallurgy and chemical process industries.
Most ordinary power modules fail to withstand long-term high-voltage surge impact in heavy-load working conditions. This ABB module adopts professional semiconductor packaging technology, with optimized internal circuit layout to reduce switching loss. It maintains stable switching response under frequent start-stop and high-load operation, effectively lowering equipment failure rates caused by power component aging. Field verification proves it delivers reliable operation in 24/7 continuous industrial power scenarios.
Key Technical Specifications
| Parameter Item | Technical Data |
|---|---|
| Full Model Number | 5SHY4045L0004 |
| Product Category | IGCT Thyristor Power Module |
| Rated Voltage | 4500 V |
| Core Feature | High-speed switching, low power loss |
| Working Condition | Continuous high-load operation |
| Application Scenarios | Medium-voltage inverter, power rectifier, industrial power drive system |
| Component Characteristic | High surge current tolerance, strong anti-interference |
| Industrial Adaptation | Suitable for harsh industrial power environments |

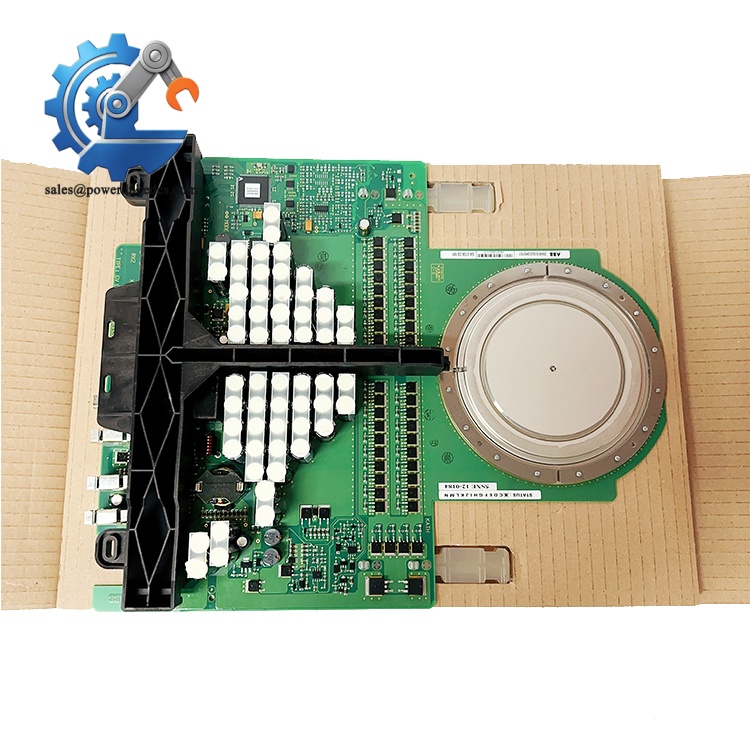

ABB 5SHY4045L0004
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10 Minutes)
⚠️ Safety Priority Rules
Notify the production team of planned downtime and switch all linked power equipment to safe standby mode. Cut off total power and UPS backup power of the power cabinet, and wait more than 5 minutes for internal high-voltage capacitance to discharge completely. High-voltage module operation must follow industrial power safety specifications.
Tool Preparation
ESD anti-static wristband and insulation mat, insulated screwdriver set, high-precision multimeter, insulating gloves, marking labels and mobile phone for configuration recording.
Backup Work
Record the installation position and wiring sequence of the old module in full detail. Take clear photos of terminal wiring and fixing structure to ensure zero deviation during reinstallation.
Stage 2: Old Module Removal (15 Minutes)
Remove the equipment protective cover first. Mark each high-voltage wire terminal one by one to avoid wiring errors. Loosen fixing screws slowly with insulated tools, do not pull wires forcibly to prevent damaging high-voltage cable insulation.
Release the module fixing fasteners, take out the old module vertically. Clean the mounting base and contact terminals with compressed air to remove dust and oxide layers, check for terminal deformation or burnout traces.
Stage 3: New Module Installation (15 Minutes)
Wear complete anti-static and insulating protective equipment before unpacking. Confirm the full model matches the replacement requirement strictly.
Place the new module in the fixed mounting position, align the contact terminals accurately. Fasten fixing screws evenly with moderate torque to ensure close contact, avoid poor contact causing high-temperature burnout.
Restore all high-voltage wires according to the marked labels and photos. Double-check wiring sequence and firmness to eliminate short-circuit risks.
Self-Check List
Module model verified, wiring sequence correct, screws fastened firmly, no foreign objects left in the cabinet, protective cover ready for installation.
Stage 4: Power-On & Functional Testing (30 Minutes)
Use a multimeter to test circuit insulation and confirm no short-circuit faults. Install the equipment protective cover completely before powering on.
Power on the equipment step by step, observe module operating status and equipment running parameters. Check for abnormal heating, arcing or alarm codes.
Simulate multiple load switching tests to verify stable module switching performance. Keep the equipment running for 30 minutes continuously, confirm no abnormal parameters. Record module serial number and replacement information in the equipment maintenance log.
Quality Inspection & Testing Process
Every ABB 5SHY4045L0004 module undergoes strict full-item detection before delivery to adapt to high-standard industrial power scenarios.
1. Incoming Source Verification
Check original factory packing documents and serial number authenticity via official ABB system. Complete full appearance inspection: no pin oxidation, no shell damage, no disassembly and repair traces, complete factory certification documents.
2. Live Power Function Test
Install the module on a professional power electronic test bench for simulated industrial working condition tests. Complete power-on self-test, high-voltage switching test and load operation test. Record switching response speed and power loss data to ensure compliance with factory standards. All units are attached with formal test reports.
3. Electrical Performance Detection
Complete high-voltage insulation test, on-resistance test and surge current resistance test. Ensure all electrical parameters meet industrial high-power equipment operation requirements, with insulation resistance meeting standard industrial safety values.
4. Parameter & Compatibility Confirmation
Record factory standard parameters of the module, verify compatibility with matching ABB power drive equipment. Retain parameter backup data to support on-site rapid debugging.
5. Final QC & Packaging
Professional inspectors confirm all test items pass and sign off. Modules are packed with anti-static and shockproof materials, attached with QC pass labels. Test videos and inspection photos can be provided for customer verification.
Field Replacement Pitfall Guide
Most on-site faults of high-power IGCT modules come from irregular operation, not product quality problems. These practical summaries help you avoid repeated debugging and equipment damage.
❗ High-Voltage Discharge Incomplete Risk
This module belongs to high-voltage power components. Residual capacitance in the equipment will store huge electric energy after power off. Many engineers start disassembly without sufficient discharge, leading to electric shock accidents or component breakdown.
Always reserve more than 5 minutes for full discharge after power cut. Test terminal voltage with a multimeter before operation to confirm zero residual voltage.
❗ Static Breakage of Semiconductor Chip
IGCT internal chips are extremely sensitive to static electricity. Dry workshop environments in autumn and winter carry high static voltage. Operation without anti-static measures will directly break down the internal chip, causing permanent module scrapping.
All disassembly and installation operations must be completed on anti-static mats with anti-static wristbands worn. Never touch chip pins and contact terminals directly.
❗ Uneven Screw Fastening Torque
Uneven fixing torque will cause poor module contact. Local high temperature will occur during high-load operation, resulting in module burnout and equipment tripping.
Fasten screws in diagonal order with uniform torque. Do not over-tighten or loose randomly to ensure overall fitting tightness.
❗ Ignoring Wiring Sequence Differences
High-voltage power modules have strict wiring sequence requirements. Random wiring based on experience will cause phase sequence errors and short-circuit faults once powered on.
Take photos and mark terminals before disassembly. Strictly restore wiring one by one, do not rely on empirical operation.
Frequently Asked Questions (FAQ)
1. Can ABB 5SHY4045L0004 replace other old ABB power modules directly?
It supports targeted replacement of matching ABB medium-voltage drive series modules. But you need to confirm equipment parameter matching before replacement. Adjust peripheral debugging parameters appropriately according to on-site system version to avoid switching parameter mismatch faults.
2. What is the warranty and after-sales support?
All in-stock modules provide 12-month industrial warranty. We retain complete test data of each product. Non-human damage faults support free maintenance and replacement, with professional technical team providing remote debugging guidance.
3. Is this module suitable for long-term high-load operation?
Yes. This industrial-grade IGCT module is designed for 24/7 high-load continuous operation, with low switching loss and strong surge resistance. It adapts to long-term stable operation requirements of metallurgy, energy and other heavy-industry equipment.
4. How to distinguish original genuine and refurbished modules?
Genuine ABB 5SHY4045L0004 modules have clear laser-etched serial numbers, uniform shell texture and intact anti-counterfeiting labels. Refurbished products usually have faint disassembly marks, inconsistent pin gloss and blurred label fonts. We can provide official serial number verification reports.
5. Will discontinued models affect system stable operation?
No. This is a mature industrial mass-produced model with stable performance and wide compatibility. Although discontinued, it has no technical defects. Our limited spot inventory can fully meet daily maintenance and replacement demands of old ABB power systems, and supports last-time-buy bulk stocking.
6. Is hot-swap operation allowed during equipment operation?
Hot swapping is strictly prohibited. This high-voltage power module bears core switching and power bearing tasks. Hot plugging will cause instantaneous high-voltage impact, leading to module breakdown and even overall equipment short-circuit accidents. All replacement work must be completed under complete power-off state.
