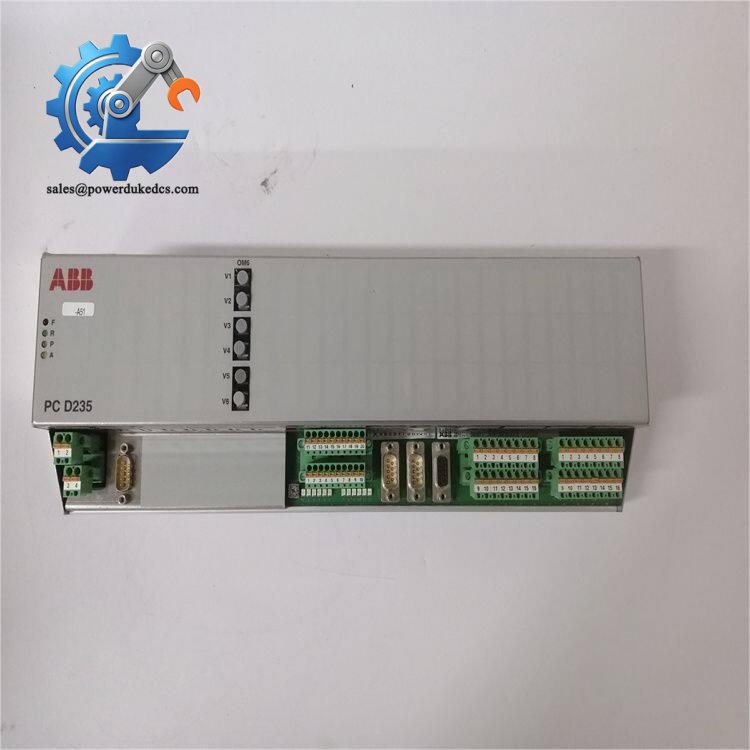

ABB PCD235A101 3BHE032025R0101 | Factory Tested Excitation Controller Board 12 Month Warranty

Unstable voltage regulation and excitation system trips can force generator unit shutdown in power plants. The ABB PCD235A101 3BHE032025R0101 serves as the core processing board inside UNITROL 6000 excitation cabinets. It collects voltage, current and rotor feedback signals to run closed-loop excitation regulation.

This board handles all main control logic including automatic voltage regulation, limit functions and fault detection. Fiber interfaces guarantee reliable data transmission even in environments with heavy high-frequency electromagnetic noise. It supports single and redundant excitation configurations widely adopted on steam turbine, hydro and gas turbine generators. Field maintenance teams often stock this unit to shorten downtime during mainboard failures.

Coordinate with power plant operation staff to switch the generator unit to safe maintenance status. Cut off power supply to the excitation cabinet. Wait 5 minutes to discharge all internal capacitors.

Prepare tools: ESD wrist strap, insulated screwdriver, digital multimeter, camera. Save all excitation parameter sets via engineering software. Take clear photos of DIP switch positions and backplane connector layout.

Label all external fiber links and terminal wiring before disconnection. Unlock the module front panel latch. Pull the PCD235A101 board straight outward horizontally. Do not tilt the circuit board to avoid bending backplane pins.

Inspect rack gold fingers; remove oxide and dust gently with anti-static cleaning cloth.

Complete anti-static protection before opening packaging. Confirm the part number PCD235A101 3BHE032025R0101 fully matches replacement requirements.

Replicate switch configuration strictly based on stored photos. Align the board with rack guide rails, push steadily until the front latch locks. Restore fiber cables and wiring following labels.

Pre-power-on self-check: Verify complete insertion, correct fiber direction, no loose terminals, no stray hardware inside the rack.

Restore cabinet power supply and watch module status LEDs. Solid green operation light indicates normal initialization.

Connect UNITROL engineering tool to upload saved excitation parameters. Verify all limit curves and protection thresholds.

Carry out no-load excitation testing, check voltage adjustment response. Keep continuous running observation for 30 minutes without abnormal alarms before finishing work.

1. Can PCD235A101 3BHE032025R0101 be used for hot swap replacement?

Hot swapping is not permitted. Power to the excitation rack must be fully disconnected. Live extraction will damage backplane circuits and trigger generator protection action.

2. Will all excitation parameters be lost after replacing this processor board?

Factory default parameters load automatically on a new board. You need to import the site backup parameter file manually after installation. Always back up parameters before component replacement.

3. Which generator types is this control board suitable for?

It works with synchronous generators driven by steam turbines, hydro turbines and gas turbines, as long as the excitation device is UNITROL 6000 series.

4. Does fiber sequence matter during reconnection?

Yes. Transmit and receive fiber lines cannot be reversed. Swapped fiber leads to communication loss between control board and power unit. Refer to original photos for routing.

5. The board runs but keeps reporting communication faults after installation, what to check first?

First confirm fiber cleanliness and correct TX/RX connection. Then check whether DIP switch settings match the original unit. Version mismatch between new board firmware and power unit is another common cause.

6. What warranty and pre-delivery testing can you provide?

We offer 12-month warranty. Every unit passes signal simulation testing before shipment. Test photos or videos can be provided upon customer request.
