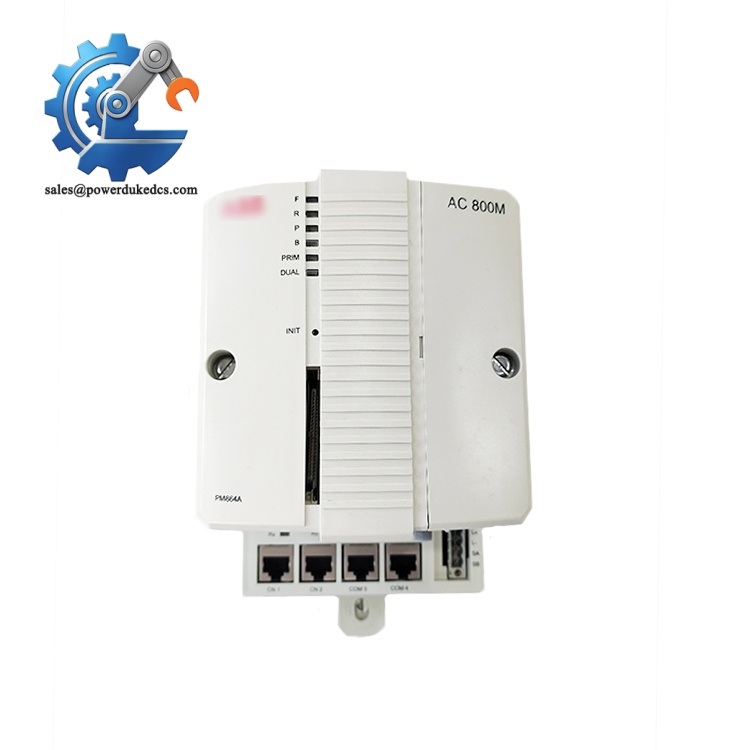

1. ABB PM864A 3BSE018162R1 | Process Control CPU Used in Power, Chemical & Pulp Industry

Product Core Brief

• Model: PM864A 3BSE018162R1
• Brand: ABB
• Series: AC 800M Controller Platform
• Core Function: Executes control logic, handles I/O communication and process loop management
• Type: Processor Unit / CPU Module
• Key Specs: Supports redundant configuration; Onboard Ethernet & serial interfaces; Works with S800 I/O station

  Condition: New Surplus, non-refurbished

  ⚠️ Original production discontinued by ABB, available stock is limited

Product Introduction

Key Technical Specifications

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated 15 min)

1. Schedule planned downtime and lock all relevant process control loops
2. Cut off power to the controller rack completely
3. Wait minimum 5 minutes for internal capacitors to discharge
4. ESD protection is mandatory during all module handling

• ESD wrist strap and anti-static mat
• PH1 cross screwdriver
• Digital multimeter
• Mobile phone for recording wiring and hardware layout

• Back up the complete controller project to local storage
• Photograph the existing CPU installation, cable routing and front panel status
• Record current firmware revision of the original PM864A

Phase 2: Old Module Removal (Estimated 12 min)

1. Confirm rack power is fully disconnected
2. Unplug all communication cables connected to the processor front side
3. Loosen two front locking screws of the CPU unit
4. Pull the PM864A straight outward from TP830 baseplate
5. Inspect baseplate connector pins for oxidation, bending or contamination

Phase 3: New Module Installation (Estimated 18 min)

1. Wear ESD wrist strap before unpacking PM864A
2. Conduct visual inspection to check PCB and connector integrity
3. Align the module with TP830 baseplate guide rails and insert horizontally
4. Push fully into position and tighten front locking screws
5. Reconnect all Ethernet and serial communication cables following photos

Phase 4: Power-On & Commissioning (Estimated 25 min)

1. Restore 24 V DC power supply to the controller rack
2. Observe front panel LED status; steady PRIM light indicates normal startup
3. Launch Control Builder M and scan hardware topology
4. Read firmware version of the new processor unit
5. Match firmware revision with project requirements; perform upgrade or downgrade if mismatched
6. Download the backed control project to PM864A
7. Switch controller to RUN mode, verify I/O data exchange and loop control
8. Run continuous monitoring for minimum 30 minutes to check for unexpected alarms

• No controller recognition: Check baseplate installation and power supply voltage
• Communication timeout: Verify Ethernet IP settings and network switch port
• Frequent fault alarms: Confirm firmware compatibility between CPU and I/O modules

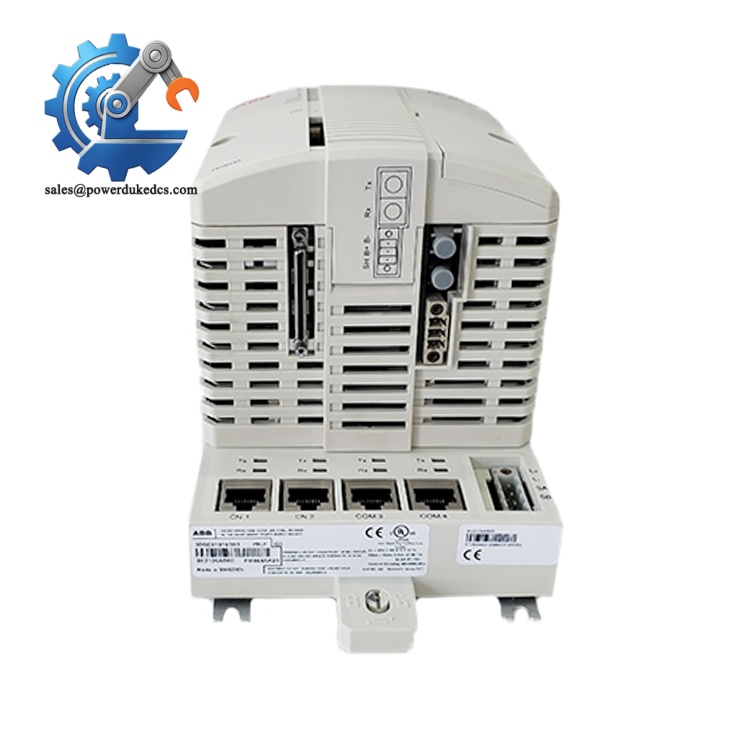

  ABB PM864A 3BSE018162R1

Frequently Asked Questions (FAQ)

1. What is the difference between PM864A and PM864AK01?

   PM864A 3BSE018162R1 refers to the standalone processor unit. PM864AK01 is a complete kit including PM864A CPU, TP830 baseplate, backup battery and necessary terminators. They cannot be treated as fully interchangeable part numbers.

2. Can PM864A run in redundant configuration?

   Yes. Two PM864A units can form primary/standby redundant pair. Switchover happens without process interruption under normal working conditions. Redundant replacement is allowed without full plant shutdown.

3. Does this module support hot swap?

   Hot swap is permitted only under redundant running mode. If the system runs with single CPU, removing PM864A will stop all control logic and trigger process interlocks. Always evaluate risk before online replacement.

4. Can PM864A directly replace PM864?

   Physical mounting is compatible. Users must verify firmware compatibility. In multiple field cases, unmatched firmware revisions lead to project download failure or abnormal I/O communication. Test offline before on-site replacement.

5. How long can the backup battery retain program data?

   The internal lithium battery keeps RAM data for several weeks under power-off status. Battery aging is common after 5–7 years. Replace the battery proactively to avoid program loss during power failure.

6. What load of control logic can PM864A handle?

   It fits medium-sized control applications. For projects with heavy calculation tasks and large I/O quantity, consider upgrading to PM866A for higher processing capacity.

7. What warranty terms apply to PM864A 3BSE018162R1?

   We provide 12-month warranty under standard industrial operating conditions. Damage caused by incorrect wiring, surge voltage, static discharge or over-temperature environment voids warranty coverage.
