ABB PM866AK01 Processor Unit | AC800M DCS CPU Controller In Stock
SEO Titles (5 Differentiated Versions)
1. ABB PM866AK01 (3BSE076939R1) | AC800M DCS Processor Unit Industrial Controller Module
2. ABB PM866AK01 | 133MHz 64MB RAM High Speed PLC CPU Control Module
3. ABB 3BSE076939R1 PM866AK01 | New Original Controller 1-Year Warranty Fast Shipping
4. ABB PM866AK01 | Direct Replacement For AC800M System Redundant CPU Unit
5. ABB PM866AK01 Processor Unit | Factory Sealed Industrial DCS Control Core Module
Meta Description
ABB PM866AK01 (3BSE076939R1) is a high-performance AC800M DCS CPU processor unit with 133MHz processor and 64MB RAM. Supports 1ms fast cycle control and dual redundancy. New original in stock, full functional testing completed, reliable for industrial process control systems.
Product Core Brief
-
Model: PM866AK01 (Part No: 3BSE076939R1)
-
Brand: ABB
-
Series: AC800M Compact DCS Controller Series
-
Core Function: Acts as the central processing core for industrial DCS and PLC control systems
-
Product Type: CPU Processor Unit Module
-
Key Specs: 133 MHz main frequency, 64 MB RAM, minimum 1 ms control cycle, dual Ethernet communication ports
-
Condition: New Original (New Surplus), no refurbishment, no used traces
-
Stock Status: In stock, ready for shipment
Product Introduction
For process engineers maintaining continuous industrial production lines, stable CPU operation determines overall system uptime. The ABB PM866AK01 is a mainstream high-performance processor unit tailored for ABB AC800M DCS systems, widely deployed in chemical, power, and manufacturing automation scenarios. It integrates core computing, system scheduling, and field device communication functions for automated control systems.
This module features a 133 MHz processor and 64 MB high-capacity RAM, supporting a minimum 1 ms fast control cycle to handle complex logic computation and real-time data processing. It supports dual-CPU redundant switching, effectively avoiding system shutdown caused by single-point failure. Compared with entry-level PM864 series modules, it offers larger memory and faster response speed, delivering more stable operation for high-load industrial control environments. All in-stock units pass full professional testing before delivery.
Key Technical Specifications
|
Parameter Item
|
Technical Data
|
|---|---|
|
Official Part Number
|
3BSE076939R1
|
|
Main Processor Frequency
|
133 MHz
|
|
Operating RAM
|
64 MB
|
|
Minimum Control Cycle
|
1 ms
|
|
Power Supply Range
|
19.2 V DC – 30 V DC (24 V DC standard)
|
|
Communication Ports
|
2 × RJ45 Ethernet ports, 2 × serial communication ports
|
|
Supported Protocols
|
Modbus TCP, PROFINET IO, Ethernet/IP
|
|
Redundancy Function
|
Support dual CPU hot standby automatic switching
|
|
Onboard Configuration
|
Real-time clock, LED status indicators, INIT button, CompactFlash slot
|
|
Net Weight
|
1.2 kg
|
|
Applicable System
|
ABB AC800M DCS / 800xA control system
|

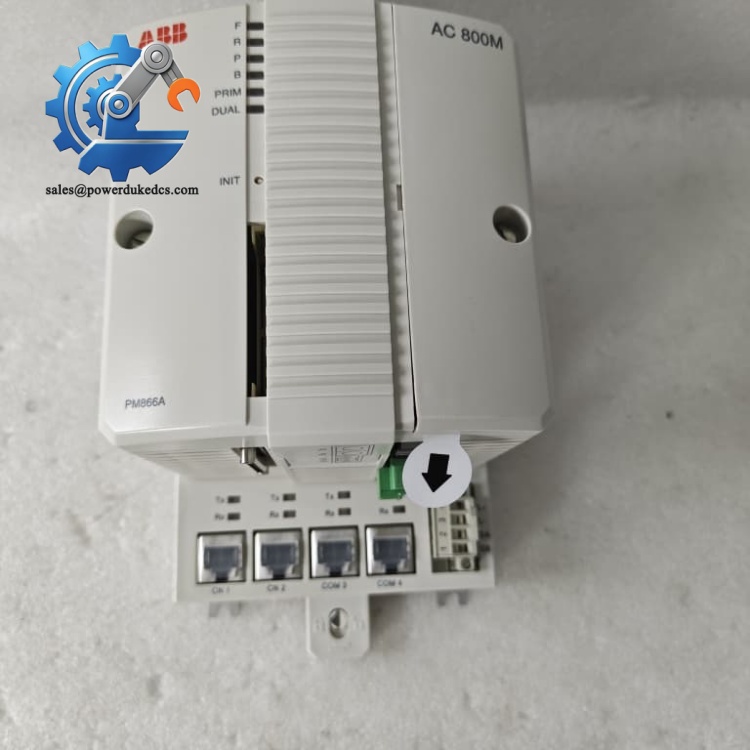

ABB PM866AK01
Core Application Scenarios
The PM866AK01 CPU module fits medium and high-load industrial automatic control scenarios that require high real-time performance and system stability. It serves as the main control core for production line linkage control, data collection and analysis, and equipment interlock protection.
Typical industries include thermal power plants, petrochemical processing, pharmaceutical manufacturing, and automated packaging lines. Its redundant design ensures non-stop operation during module replacement or failure, cutting unplanned downtime losses significantly.
Product Advantages & Limitations
Advantages
-
High real-time performance: 1 ms ultra-fast control cycle adapts to high-precision process control demands
-
Reliable redundant operation: Automatic primary-backup switching avoids system outage risks
-
Rich compatibility: Connects seamlessly with mainstream industrial protocols and ABB 800xA systems
-
Ample expandability: Reserved Flash storage and external expansion interfaces for later system upgrade
Limitations
-
Not compatible with old-generation AC800F series systems; only matches AC800M platforms
-
Firmware version mismatch may cause communication exceptions with older field modules
-
Higher power consumption than entry-level PM864 series, requiring sufficient cabinet power margin
Similar Model Comparison
|
Model
|
Processor & Memory
|
Control Cycle
|
Applicable Scenarios
|
|---|---|---|---|
|
PM866AK01
|
133 MHz / 64 MB RAM
|
1 ms minimum
|
Medium & high-load redundant control system
|
|
PM864AK01
|
100 MHz / 32 MB RAM
|
3–5 ms minimum
|
Conventional low-load non-redundant control
|
|
PM865AK01
|
133 MHz / 48 MB RAM
|
2 ms minimum
|
Medium-load non-redundant industrial control
|

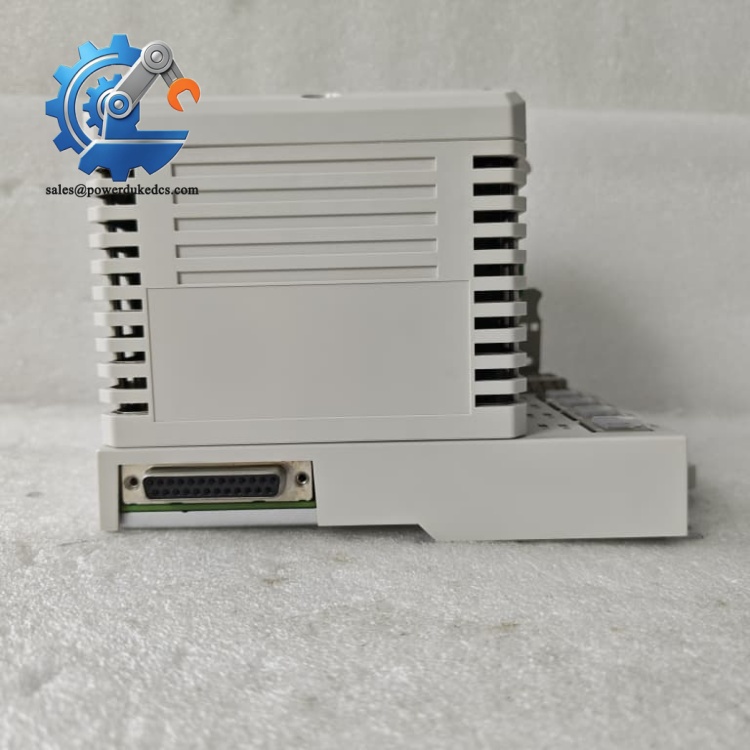

ABB PM866AK01
Professional Quality Inspection Process
All stocked ABB PM866AK01 modules undergo strict multi-step testing before delivery to eliminate hidden risks of spare parts inventory.
1. Warehouse Entry Verification
We verify original factory packing lists and serial number anti-counterfeiting information. Inspect module appearance for no corrosion, no scratches, no aging discoloration, and no disassembly traces. Complete accessories and factory certificates are double-checked.
2. Live System Functional Test
Modules are tested on a standard ABB AC800M test rack. We complete power-on self-inspection, LED status verification, and full Ethernet and serial port communication handshake tests. Each unit runs continuous 24-hour aging tests to record temperature rise and operating stability.
3. Electrical Parameter Detection
Test insulation resistance above 10 MΩ with a Fluke 115 multimeter, and complete ground continuity testing to ensure electrical safety compliance with industrial standards.
4. Firmware & Configuration Recording
Record the exact firmware version of each module and back up default configuration parameters. We can match specified firmware versions according to on-site project needs.
5. Final Packaging & Delivery
Qualified modules are sealed in anti-static bags, wrapped with bubble film, and packed in dedicated cartons. Each unit is attached with a QC pass label with inspection date. Test videos and reports are available upon customer request.
On-Site Replacement Pitfall Guide
Most on-site PLC/DCS communication faults after module replacement stem from trivial operational errors, not product quality issues.
❗ Firmware Version Mismatch
New modules with overly new or old firmware versions will trigger communication timeout failures. We once solved a site fault where engineers replaced a PM866 module directly; the firmware version gap caused two days of system communication anomalies. Always record the original firmware version before replacement and confirm version consistency with the supplier.
