ABB PM866K01 3BSE050198R1 | Supports IEC 61131-3 Programming & Hot Redundant CPU Configuration

Meta Description

ABB PM866K01 (3BSE050198R1) is a complete single processor kit for ABB AC800M controllers, including PM866 CPU and TP830 baseplate. It executes process control logic, connects S800 I/O and communication modules, and works seamlessly with System 800xA. Every unit undergoes full bench testing before shipment. OEM production continues, limited spare inventory available for urgent site replacement.

Product Core Brief

Model: PM866K01, Part No. 3BSE050198R1
Brand: ABB
Series: AC 800M / System 800xA Control Platform
Core Function: Run real-time control logic, coordinate I/O and communication for process automation systems
Type: Complete Single Processor Unit Kit (CPU + TP830 Baseplate)
Key Specs: 32-bit PowerPC processor, dual 10 Mbps Ethernet, ModuleBus & CEX-Bus, supports redundant CPU pairing

Condition: Bench-tested surplus stock, fully function verified

⚠️ K01 = single CPU kit; K02 stands for dual redundant CPU kit. Do not mix ordering codes.

Product Introduction

Complex continuous process plants rely on stable deterministic control to avoid costly unplanned shutdowns, and the PM866K01 3BSE050198R1 acts as the main computing core of AC800M automation controllers. This kit ships fully assembled with the PM866 processor unit and matching TP830 baseplate, eliminating separate baseplate procurement for field replacement.

It outperforms older PM864 series controllers with larger memory capacity and higher I/O handling limits. The hardware supports hot standby redundancy when paired with a second PM866K02 set, achieving fast bumpless switchover below 10 ms. Compatible with S800 I/O clusters and a full range of CI-series communication modules, it connects to fieldbuses, HMI workstations and third-party equipment. Program engineering uses Compact Control Builder following IEC 61131-3 standards. The module runs reliably between −40 °C and +70 °C, widely deployed in power plants, chemical facilities, oil & gas processing and water treatment stations.

Key Technical Specifications

Parameter	Specification
Full Part Number	PM866K01 / 3BSE050198R1
Kit Composition	PM866 Processor Unit + TP830 DIN-rail Baseplate
Processor	32-bit PowerPC MPC866, 133 MHz
Memory	64 MB RAM, 4 MB Flash onboard
Power Supply	24 V DC (19.2 V ~ 30 V DC)
Power Consumption	Max 360 mA @ 24 V DC
Onboard Interfaces	2 × RJ45 Ethernet (10 Mbps), 2 × RJ45 Serial RS232
I/O Expansion	ModuleBus for local S800 I/O; CEX-Bus for communication modules
Maximum I/O Capacity	Up to 96 S800 I/O modules (single CPU mode)
Redundancy Support	Can build redundant controller pairs with PM866K02
Programming Standard	IEC 61131-3
Engineering Tool	Compact Control Builder / 800xA Control Builder
Operating Temperature	−40 °C ~ +70 °C; Storage −40 °C ~ +85 °C
Protection Class	IP20
Mounting	Standard DIN rail slide-lock installation
Weight	Approx. 1.2 kg
Related Variant	PM866K02 (3BSE050199R1) – Dual redundant CPU kit

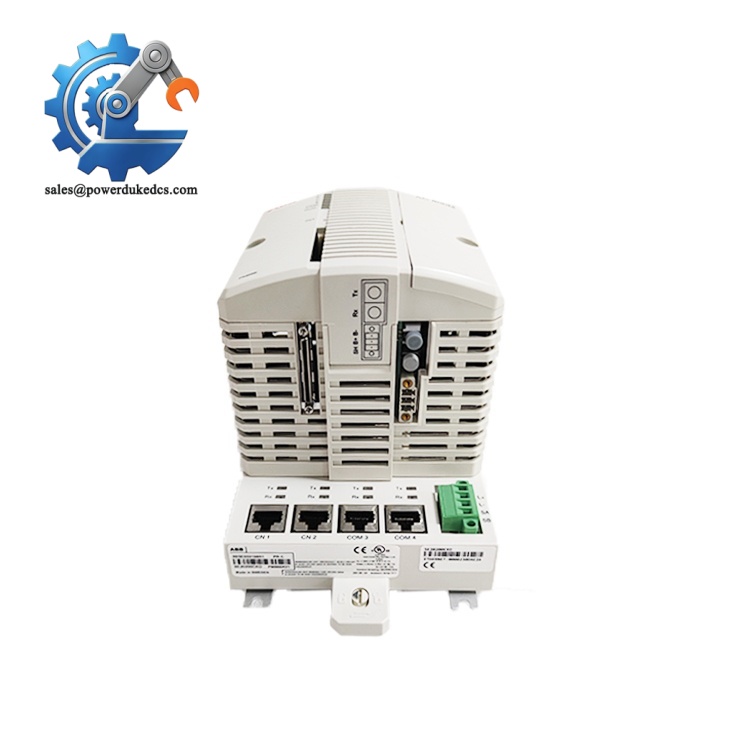

ABB PM866K01 3BSE050198R1

Quality Control Process

Inbound Traceability & Visual Inspection

Check full part number, serial number and hardware revision labels. Inspect baseplate ports, PCB surface, connector pins and front panel LED indicators. Confirm no signs of overheating, corrosion or unauthorized disassembly. Record hardware revision for compatibility cross-check.
Live Bench Functional Test

Install the complete PM866K01 kit on a dedicated AC800M test rack. Execute power-on self-test, LED verification, Ethernet communication test, serial port handshake, ModuleBus communication and continuous 24-hour aging run. Simulate typical control logic to confirm stable task execution. All test logs are archived.
Electrical Performance Testing

Verify 24 V DC power consumption within rated range. Check Ethernet link stability, serial port signal integrity and continuity of all bus contacts. Confirm INIT button and real-time clock function normally.
Firmware Version Recording & Compatibility Check

Read installed firmware revision. We can validate compatibility with your existing System 800xA software version before shipment on request.
Final QC & Anti-Static Packaging

QC engineer signs off all passed test records. The CPU kit is sealed inside anti-static shielding bag, wrapped with shock-resistant foam and packed into reinforced export carton. A QC Passed label marked with test date is attached. Test photos or short video can be supplied upon request.

Field Replacement Pitfall Guide

❗ Order Code Confusion Risk

PM866K01 (single CPU kit) and PM866K02 (dual redundant kit) cannot be interchanged. If your site runs redundant control configuration, only PM866K02 delivers full standby functionality.

Tip: Copy the complete part number printed on your original baseplate before ordering.

Case Reference: A chemical plant purchased PM866K01 to replace a failed redundant PM866K02 set; the standby controller could not sync control data, requiring 2 days of rework and hardware exchange.

❗ Firmware Matching Requirement

New PM866 CPU firmware versions may not operate normally under older 800xA system platforms. Mismatched firmware triggers communication faults or failure to load application code. Always record firmware revision from the original unit before replacement.

❗ Configuration Backup Before Swap

All control programs, parameter settings and signal wiring logic reside inside the CPU. Export the complete project via Compact Control Builder before powering down the old module. Manual parameter entry creates high risk of configuration errors.

❗ Network MAC Address & Redundancy Setup

Each TP830 baseplate carries a fixed hardware MAC address. After CPU replacement, verify IP settings and RNRP redundancy parameters to avoid network conflicts on the control network.

❗ Strict ESD Protection Rules

CPU mainboard circuits are sensitive to electrostatic discharge. Wear grounded anti-static wristbands during module removal and installation. Dry winter environments increase risks of invisible chip damage.

❗ CEX-Bus & ModuleBus Termination Check

Improper bus termination causes unstable I/O communication and intermittent control jumps. Double-check terminators on the end of each bus segment after hardware replacement.

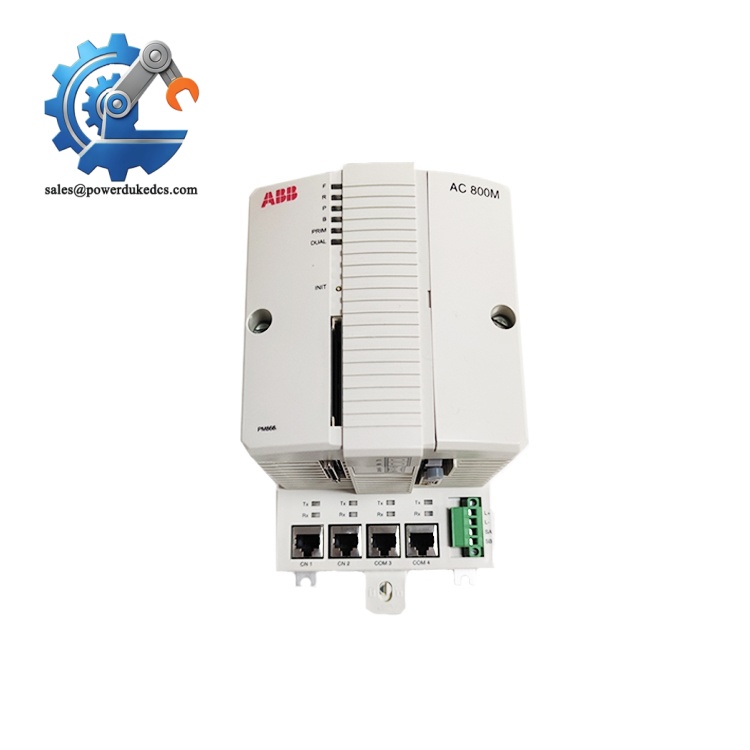

ABB PM866K01 3BSE050198R1

Quick Conclusion

ABB PM866K01 (3BSE050198R1) is a complete single AC800M processor kit including CPU and TP830 baseplate for System 800xA automation control.
Suitable for standalone controller applications; select PM866K02 if redundant hot standby control is required.
Confirm hardware revision, firmware compatibility and exact ordering code before procurement.
Every spare unit undergoes full bench testing, supporting site acceptance test requirements.
Limited stocked inventory; delivery lead time depends on stock availability.

FAQ

Q1: Can PM866K01 directly replace PM864 CPU modules?

A1: Physical installation is compatible, but you must update the hardware configuration in Compact Control Builder and confirm firmware compatibility. Minor adjustment of control task scheduling may be needed.

Q2: Does PM866K01 include CompactFlash memory card?

A2: Standard kit does not include CF card. You need to reuse your existing CF card or order separately for application storage.

Q3: What is the difference between PM866 and PM866A?

A3: PM866A is an updated hardware revision with enhanced internal diagnostics. They share similar specifications, but full compatibility testing is recommended for direct replacement.

Q4: What warranty terms apply?

A4: 12-month warranty after delivery, covering functional defects under standard operating environment. Damage caused by incorrect wiring, surge voltage, static discharge or unauthorized disassembly is excluded.
