Description
Product Core Brief
- Model: UFC719AE101 (3BHB003041R0101 / 3BHB00072R0101 dual part number)
- Brand: ABB
- Series: Generator Excitation Control System Series
- Core Function: Real-time excitation signal collection, voltage regulation and system loop monitoring for generator units
- Type: Excitation Control Printed Circuit Board
- Key Specs: Industrial wide temperature operation, high-precision signal sampling, system interlock protection
- Condition: New Surplus, original factory sealed, non-refurbished full integrity
- ⚠️ Discontinued legacy power system part, limited safety buffer stock for plant MRO replacement
Product Introduction
Generator excitation system signal drift and regulation failure will directly cause generator voltage instability and unit shutdown. The ABB serves as a core control board for ABB industrial generator excitation systems, undertaking key signal acquisition and excitation adjustment tasks.
This dual-part-number module supports continuous closed-loop excitation regulation for large generator sets. It features high anti-interference performance for industrial power plant environments, with sampling accuracy up to ±0.5%. It stabilizes generator output voltage and eliminates frequent excitation loop faults caused by aging circuit boards. Widely applied in thermal power, hydropower and industrial self-provided power station excitation control loops, it retains stable long-term operational reliability.
Key Technical Specifications
| Parameter Item | Technical Specification |
|---|---|
| Model Number | |
| Part Codes | 3BHB003041R0101 / 3BHB00072R0101 |
| Product Type | Generator Excitation Control Board |
| Applicable Field | Industrial Generator Excitation System |
| Core Function | Excitation signal sampling, closed-loop voltage regulation, fault interlock protection |
| Working Temperature | -25 °C to +70 °C |
| Sampling Accuracy | ±0.5% high-precision signal acquisition |
| Anti-Interference Level | Industrial EMC anti-interference standard for power plants |
| Operational Feature | Continuous 24-hour stable operation |
| Application Scenario | Thermal power stations, hydropower stations, factory self-provided generator sets |

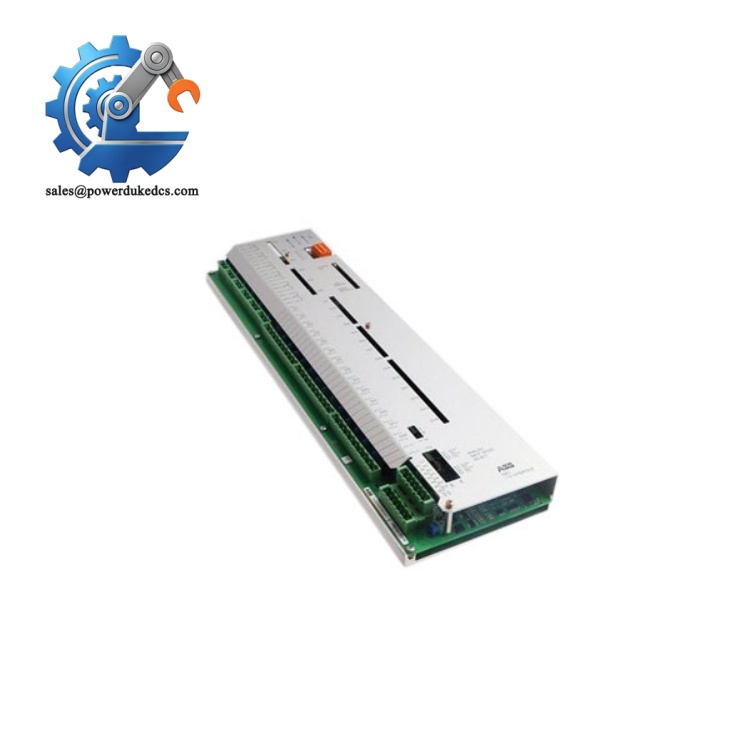

ABB UFC719AE101 3BHB003041R0101
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (15 Minutes)
⚠️ Strictly cut off generator unit high-voltage and control power to prevent equipment breakdown and electric shock hazards.
Apply unit shutdown locking procedures, confirm generator de-excitation and complete power isolation. Cut off all DC control power and wait 10 minutes for cabinet internal capacitance full discharge.
Prepare ESD anti-static tools, insulated screwdriver set, Fluke multimeter and mobile phone. Back up original excitation system parameter programs, and take full photos of old board wiring terminals, jumper positions and card slot installation status for accurate configuration replication.
Stage 2: Old Board Removal (10 Minutes)
Mark all signal lines, power lines and interlock terminal numbers one by one. Loosen terminal screws evenly and detach cables without twisting internal wire cores.
Release the cabinet card slot fixing buckle, pull the control board vertically outward to separate from the backplane slot. Inspect backplane pins for oxidation, bending or carbonization. Clean slot dust with dry compressed air. Retain original board parameter labels for reference.
Stage 3: New Board Installation (15 Minutes)
Complete full static protection before unpacking. Verify dual part numbers 3BHB003041R0101 / 3BHB00072R0101 match on-site system requirements.
Restore jumpers and configuration parameters strictly according to photographed records. Align the board with the standard card slot, insert vertically and lock the fixing buckle firmly.
Recover all wiring in accordance with terminal marks. Fasten screws with uniform torque to avoid poor contact. Complete self-inspection to ensure no residual tools or loose wires inside the cabinet.
Stage 4: Power-On & Commissioning (20 Minutes)
Use a multimeter to test DC control power and signal loop insulation to rule out short circuit risks.
Power on the control system first, observe board indicator status for normal startup. Connect upper excitation control software to scan device address and confirm online recognition.
Import backup system parameters, perform excitation loop simulation test and no-load voltage regulation calibration. Run 1-hour continuous hot standby test with no abnormal alarms. Record board SN and replacement data in power station equipment maintenance logs.
Standard Quality Inspection SOP
All stocked ABB boards implement full industrial-grade quality inspection to adapt to harsh power plant operating conditions.
Complete source traceability verification first, check original factory packing lists, serial number authentication and factory qualification certificates. Inspect board surface for no solder joint aging, scratch damage or rework traces.
Carry out professional bench simulation testing with dedicated ABB excitation system test platform. Complete power-on self-test, signal sampling calibration, regulation loop test and interlock protection function verification. Implement 24-hour continuous aging operation to monitor board temperature rise and operational stability.
Conduct electrical performance testing via professional instruments. Test insulation resistance, circuit continuity and anti-interference performance to meet power industry standards. Record firmware version and default parameter configuration completely.
Qualified products will be confirmed by inspector signature, sealed with anti-static packaging and pasted with QC pass labels. Test reports and operation videos can be provided for customer verification.
Field Replacement Pitfall Guide
❗ Parameter Calibration Deviation Risk
Different batches of boards have default excitation parameter differences. Direct power-on without calibration will cause generator voltage deviation and excitation oscillation. On-site cases show uncalibrated new boards lead to unit reactive power fluctuation. Always calibrate voltage regulation parameters after replacement.
❗ Dual Part Number Matching Error
This model corresponds to two part codes: 3BHB003041R0101 and 3BHB00072R0101. Mismatched part codes will cause system identification failure. Do not judge compatibility only by model, confirm the full part number consistency strictly.
❗ Weak Static Protection Operation
The high-precision sampling chip on the board is extremely sensitive to static electricity. On-site dry environment and unprotected operation easily cause invisible chip damage, leading to slow signal drift after startup. ESD protection is mandatory for all disassembly and installation operations.
❗ Backplane Slot Hidden Fault
Long-term operation of the excitation cabinet easily causes backplane slot oxidation and poor contact. Simply replacing the board without checking the slot will result in intermittent system offline faults. Clean and test the backplane slot before installation.
❗ Incomplete Power Discharge
Residual capacitance in the excitation cabinet will generate instantaneous induced voltage. Hasty board replacement without sufficient discharge will burn out signal circuits. Reserve full discharge time to ensure construction safety.
Standardizing these checks avoids repeated debugging and secondary shutdown losses for power generation units.
Frequently Asked Questions (FAQ)
1. Are the two part numbers of universally interchangeable?3BHB003041R0101 and 3BHB00072R0101 belong to the same board model with different factory coding rules. They are fully hardware compatible, but you need to match the original system parameter version to avoid identification exceptions.
2. Does this board support hot-swap replacement during unit operation?No hot-swap is supported. The excitation control loop belongs to key power system loop. Hot plugging will trigger loop interruption and unit tripping. Complete power isolation and discharge is required before replacement.
3. What is the delivery and warranty policy for this discontinued model?We maintain dedicated buffer stock for power plant MRO emergency replacement. Goods can be shipped within 1–3 working days. All products enjoy 12-month industrial warranty, with full technical support for on-site commissioning.
4. What failure symptoms indicate the need for replacement?Common faults include unstable generator excitation voltage, frequent system excitation alarms, unrecognizable board address and abnormal sampling data drift. These phenomena are mostly caused by aging of the excitation control board.
5. Can you provide professional parameter commissioning support after purchase?Yes. We provide complete pre-shipment test reports and firmware version records. Professional power system engineers support remote parameter calibration and on-site guidance to ensure the unit returns to normal operation quickly.
6. Will board replacement lead to generator system data loss?Hardware replacement will not erase system historical operation data. Only real-time loop status will be interrupted. Parameter backup and re-import can completely restore the original operating state without affecting unit performance.
