Bently Nevada 330180-50-00 API 670 Compliant Proximity Transducer System Module

Unstable proximity signal conversion causes false machine trips and missed early bearing failure warnings on rotating equipment. The 330180-50-00 is a panel-mount proximitor sensor within the Bently Nevada 3300 XL 8 mm transducer system.

It works with 3300 XL 8 mm probes and matching extension cables to measure static axial displacement and dynamic shaft vibration. The design meets API 670 standards for turbomachinery monitoring. Built-in EMI/RFI shielding maintains measurement stability inside high-interference turbine and compressor cabinets. Field deployment spans steam turbines, centrifugal compressors, pumps and fans across energy and process industries.

⚠️ Safety reminder: Complete replacement during machine shutdown. Disconnect monitoring cabinet power and wait for capacitor discharge. Unexpected signal shifts may trigger machine protection trips during operation.

Prepare ESD wristband, insulated screwdrivers, digital multimeter and camera. Record original proximitor wiring terminal layout. Confirm the full 5-meter system length matches existing probe + extension cable assembly. Back up all monitoring channel configuration in the rack before hardware removal.

Label all power and output signal terminals before disconnecting wires. Loosen panel mounting bolts and take out the unit.

Inspect triaxial connector contacts for oxidation or contamination. Clean connector surfaces with dry compressed air. Do not touch gold-plated internal pins with bare fingers.

Discharge static electricity before unpacking the 330180-50-00 unit. Confirm model and mounting variant match site requirements.

Secure the proximitor onto the mounting panel. Reconnect power, COM and OUT terminals following recorded labels. Attach the triaxial probe cable and tighten the ClickLoc connector firmly. Check no cable tension pulls directly on the connector body.

Double-check wiring polarity before restoring -24 VDC supply.

After power-up, connect engineering software to verify channel status. Perform gap voltage calibration by adjusting probe mounting clearance to match machine drawing values. Run static gap measurement and dynamic vibration signal testing. Keep continuous observation over 60 minutes with no signal drift or channel faults. Record serial number and replacement date in plant maintenance logs.

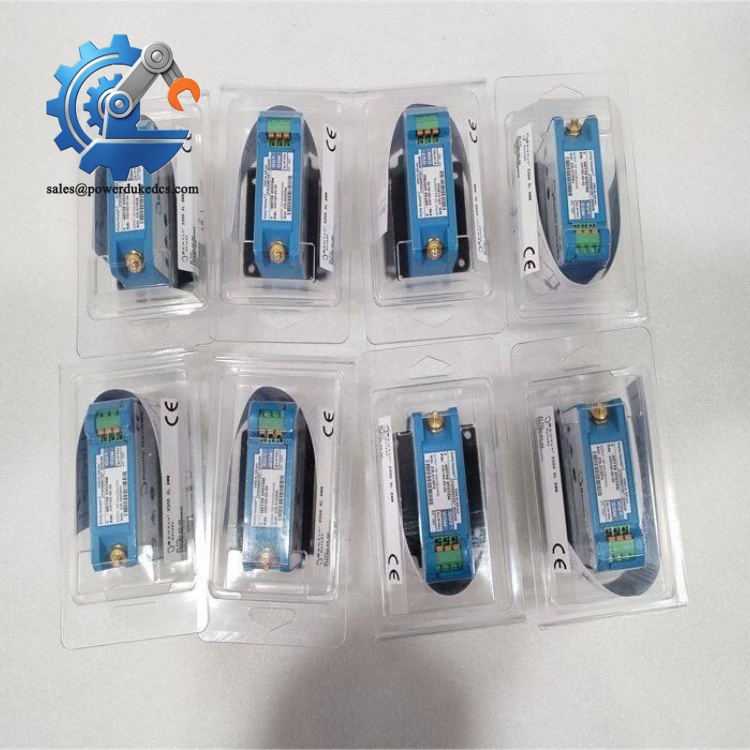

All stocked 330180-50-00 units pass full industrial machinery monitoring test procedures.

Source traceability and visual inspection run first. Check housing, terminals and connectors for scratches, burn marks or rework soldering.

Bench testing uses a complete 3300 XL probe simulation setup. Execute power-on verification, linearity test across full measurement range and signal output consistency check. A continuous 24-hour powered aging test screens intermittent hardware defects.

Electrical tests include insulation resistance measurement and connector continuity inspection. All output characteristic data is documented during testing.

Qualified units are packed in anti-static packaging with QC Pass labels. Test records and photos can be shared on request.

❗ System Length Mismatch Risk

This proximitor is calibrated for a total 5 m transducer system. Mixing cables and probes designed for different lengths creates severe linearity errors. I encountered a compressor site where mismatched length caused persistent vibration reading deviation. Always match full system length specification.

❗ Incorrect Probe Connector Handling

Triaxial ClickLoc connectors are fragile. Twisting cables while connected can break internal wiring, leading to intermittent signal loss. Rotate only the locking nut, never pull the cable directly.

❗ Forgotten Gap Voltage Calibration

Hardware replacement does not retain original probe gap settings. Skipping calibration delivers wrong displacement values and activates unnecessary protection interlocks.

❗ ESD Damage

Internal signal processing circuits are sensitive to electrostatic discharge. Low humidity inside electrical cabinets raises failure risk. ESD protection is mandatory during all handling steps.

❗ Mounting Variant Confusion

330180-50-00 is panel mount. The 330180-51-00 variant uses DIN rail mounting. These two types cannot be swapped directly without modifying installation hardware.

Following these checks avoids lengthy post-replacement commissioning delays.

1. What equipment works with 330180-50-00?

It pairs with 3300 XL 8 mm proximity probes and matching extension cables, compatible with Bently Nevada 3300 and 3500 series monitoring racks for turbomachinery protection.

2. Can I use any combination of probe and extension cable?

Only if the combined length equals the calibrated 5-meter system length. Changing total length will degrade measurement linearity.

3. Does hot-swap work while the monitoring rack stays powered?

Hardware supports live swapping, but signal loss will trigger machine protection alarms. For critical turbine/compressor loops, perform replacement during planned shutdown.

4. What symptoms indicate proximitor failure?

Typical faults include unstable gap voltage, loss of vibration signal, constant channel fault alarms, and non-linear output readings during shaft movement.

5. Is this model still in active production?

Production has been discontinued. We maintain limited safety stock for emergency breakdown support. Long-term users should evaluate migration plans or arrange last-time-buy procurement.

6. What warranty and technical support are provided?

All units carry a 12-month industrial warranty. Our team offers remote guidance for gap calibration, wiring verification and signal troubleshooting after delivery.
