1. Emerson SLS1508 | Compact logic solver with SISnet peer communication for process safety control

Product Core Brief

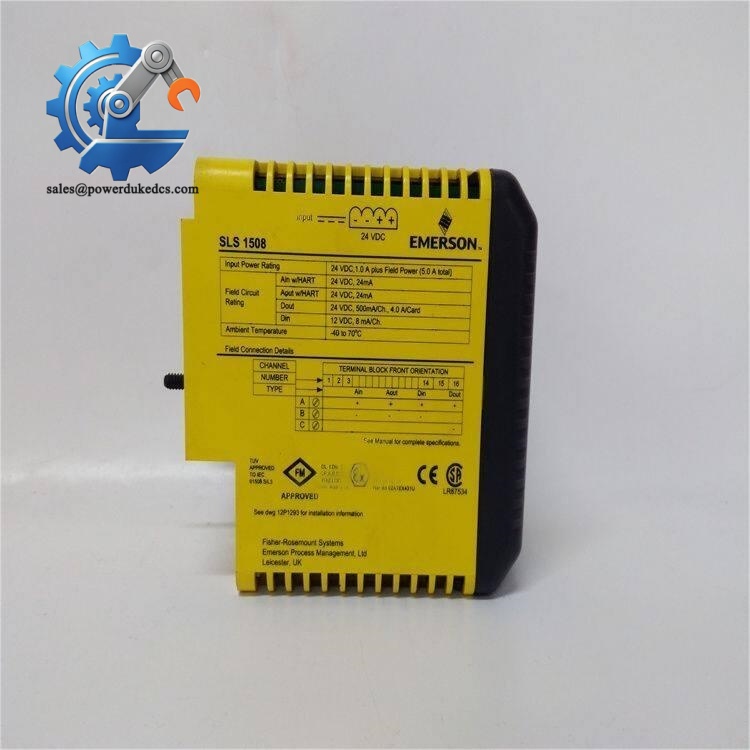

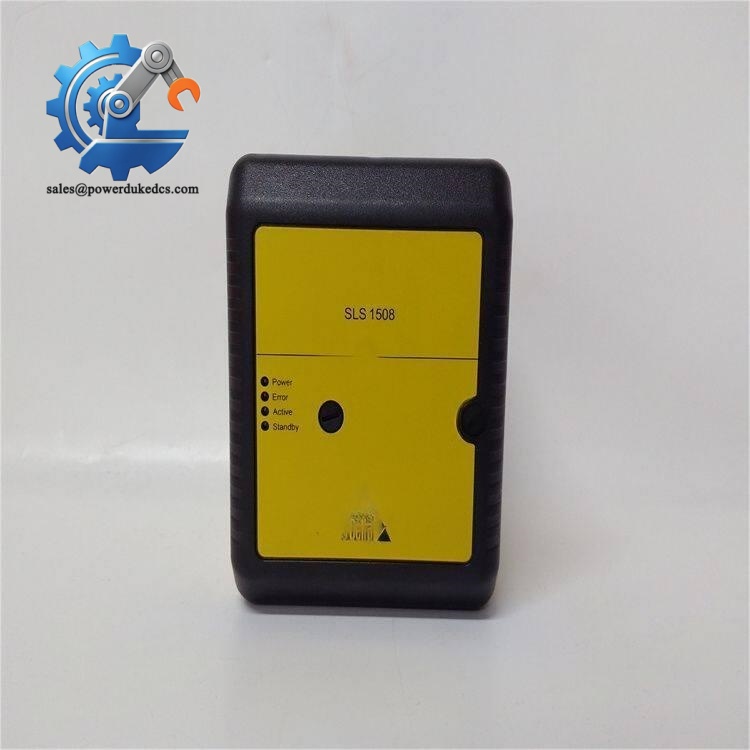

• Model: SLS1508 (KJ2201X1-BA1, 12P3162X112)
• Brand: Emerson (DeltaV)
• Series: DeltaV SIS Safety Instrumented System
• Core Function: Execute safety interlock logic and process ESD protection for petrochemical and power assets
• Type: Smart Logic Solver
• Key Specs: 16 flexible mixed I/O channels, dual redundant CPU, SISnet peer-to-peer bus, IEC 61508 SIL3 compliant
• Condition: New Surplus, non-refurbished ⚠️ Original production discontinued, limited available surplus inventory

Product Introduction

Many safety systems require flexible signal mixing without deploying multiple separate I/O cards. The Emerson SLS1508 delivers this capability as the core processing unit inside DeltaV SIS safety architecture.

This compact logic solver integrates processing and I/O on a single unit. All 16 channels support mixed configuration: discrete input, discrete output, HART analog input and HART analog output. Built-in dual CPUs perform continuous cross-checking to detect internal faults. It communicates peer-to-peer with other SLS units over SISnet, supporting redundant operation and bumpless module swap during maintenance. It complies with IEC 61508 and IEC 61511 standards, widely deployed on ESD systems, burner management and overpressure protection loops across refining and chemical plants.

Key Technical Specifications

Emerson SLS1508

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated: 15 minutes)

⚠️ Safety reminders

1. Confirm safety function bypass permit is approved by site operation team
2. Lock out relevant process equipment; verify ESD interlocks are temporarily inhibited as required
3. Prepare ESD wrist strap and anti-static mat. Static discharge can permanently damage safety circuit hardware

Tools and preparation

• PH1 screwdriver, calibrated digital multimeter
• Laptop running DeltaV SIS configuration software
• Mobile phone for photos of wiring and module indicators Backup tasks
• Export complete safety logic project file and store two separate copies
• Photograph all terminal wiring and existing module front panel status
• Document firmware revision of the original SLS1508 unit

Phase 2: Remove Old Logic Solver (Estimated: 12 minutes)

1. Cut off 24 VDC power supply to the SLS carrier assembly, wait minimum 5 minutes for capacitor discharge
2. Label every field cable to avoid wiring mismatch after replacement
3. Loosen terminal screws and disconnect field wiring one loop at a time
4. Release module locking fasteners and pull unit straight outward
5. Inspect carrier backplane connectors. Remove dust with dry compressed air ⚠️ Do not touch backplane gold contacts directly with bare fingers. Contamination causes intermittent communication faults.

Phase 3: Install New SLS1508 Module (Estimated: 18 minutes)

1. Remove replacement unit from anti-static packaging only after completing ESD grounding
2. Verify complete part number marking matches site requirement: SLS1508
3. Align module with carrier slot and push vertically until fully seated, secure front locking screws
4. Reconnect field wiring strictly referencing recorded photos and labels Self-check list [ ] All cable shields follow single-end grounding rules [ ] No loose wire strands inside terminal blocks [ ] Module sits level without tilt on the carrier [ ] No debris left inside the rack assembly

Phase 4: Power-On & Function Testing (Estimated: 35 minutes)

Pre-power inspection

• Measure 24 VDC supply voltage and confirm no short circuits on power terminals
• Confirm safety bypass tags are clearly posted for operators

Power-on steps

1. Restore DC power to the SLS carrier, keep process equipment offline
2. Watch front panel LED indicators: steady Power and Active lights indicate normal initialization
3. Connect configuration workstation and establish communication with the new logic solver
4. Check hardware firmware version. Mismatched firmware prevents safety logic download
5. Import and compile saved safety logic project, download full configuration to SLS1508
6. Execute full channel loop test: simulate sensor signals and verify output drive response
7. Trigger safety logic test sequences to confirm interlock execution
8. Maintain continuous operation for minimum 60 minutes, monitor for unplanned diagnostics alarms
9. Remove temporary safety bypass and return protection system to automatic service

Troubleshooting tips

• Communication loss on SISnet: check bus termination and wiring polarity
• Persistent channel fault alarms: inspect field cable integrity and loop resistance
• Logic download failure: confirm software version compatibility between workstation and module firmware


  Emerson SLS1508

Frequently Asked Questions (FAQ)

1. Can SLS1508 be hot swapped while the safety system remains powered? Hardware supports hot-swap mechanics. For SIL rated safety loops, avoid live replacement. Unexpected signal interruption may trigger unplanned process shutdown. Always execute work during approved shutdown or formal bypass window.
2. Can I freely mix DI, DO and HART analog channels on the same SLS1508? Yes. Each of the 16 channels can be independently defined as discrete or HART analog type inside configuration software. No fixed channel grouping. This flexibility reduces the total number of modules required for mixed signal safety loops.
3. Does SLS1508 work with standard DeltaV process controllers? It belongs exclusively to DeltaV SIS safety platform. It cannot be directly mounted or communicate with regular DeltaV M-series process controllers. Data exchange between control system and safety system must be implemented via defined peer communication links.
4. Are all SLS1508 hardware revisions fully interchangeable? Mechanical dimensions match across revisions, but firmware compatibility must be verified. We have seen field cases where newer hardware revisions require SIS software upgrades before configuration loads successfully. Share your current software version before ordering.
5. What is the difference between simplex and redundant SLS1508 deployment? Simplex installation uses a single unit for safety logic. Redundant pair runs two SLS1508 modules in parallel with automatic bumpless switchover. SIL3 safety applications normally require redundant architecture.
6. Is SLS1508 still in active production by Emerson? This hardware generation has entered end-of-life status. Emerson pushes newer SLS models for new projects. Stock availability depends on surplus inventory. Long-term maintenance users should plan advance spare part procurement.
7. Can SLS1508 transmit safety data to third-party DCS systems? It does not feature native Modbus or analog output ports. Safety variables can be shared to external systems via DeltaV peer communication gateways. Direct hardwired discrete signals remain the most common method for critical safety status feedback.
