1. Bently Nevada 3500/15 127610-01 | Machinery Monitoring Rack Power Supply with Hot Swap Function

Product Core Brief

• Model: 3500/15 127610-01
• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Core Function: Delivers regulated power to all modules via rack backplane

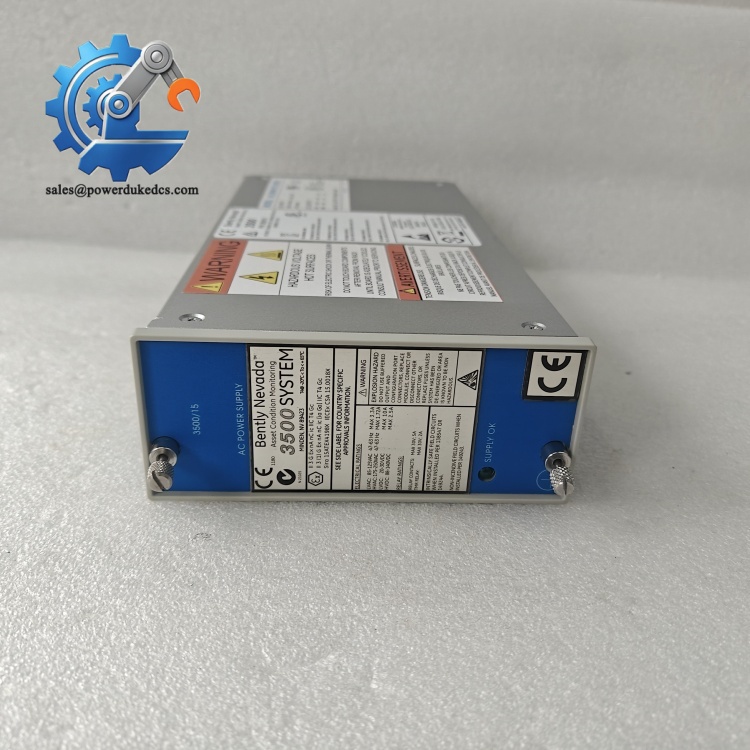

• Type: Half-height rack power supply front module
• Key Specs: Supports redundant setup, hot-swappable under dual power configuration, installs in left dedicated rack slots
• Condition: New Surplus, fully bench tested before shipment ⚠️ Original product discontinued, limited available inventory

Product Introduction

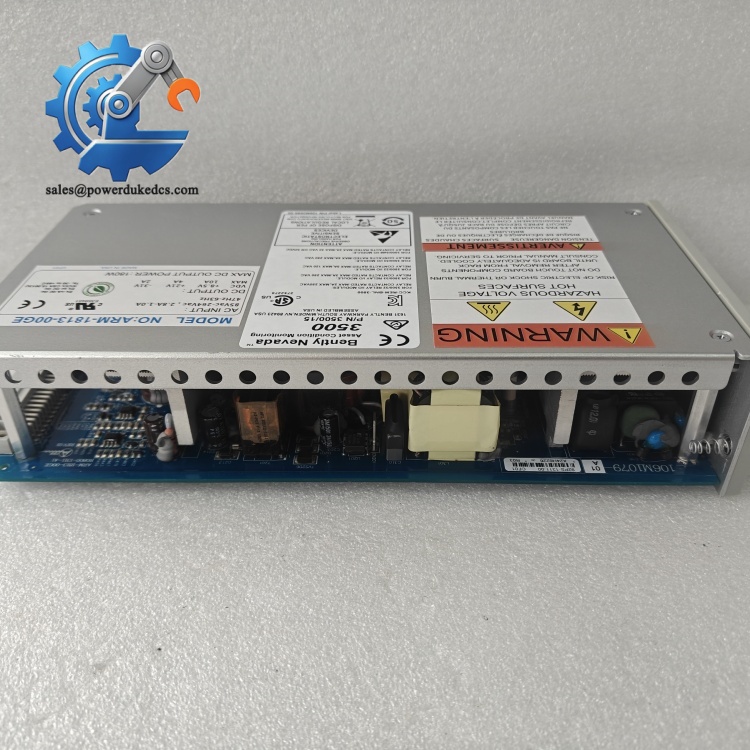

Any power supply failure inside the 3500 rack will shut down vibration monitoring and machine protection functions. The 127610-01 front panel unit belongs to the 3500/15 power assembly, working together with matched rear power input module to feed stable power to every slot on the rack backplane.

This half-height unit fits exclusive power slots on the left side of the 3500 rack. Sites often deploy two units for redundancy. If one power module fails, the backup unit takes over load without interrupting machine protection loops. Field records confirm stable continuous operation within -30 °C ~ +65 °C cabinet environment, widely adopted on steam turbines and centrifugal compressors in power and petrochemical facilities.

Key Technical Specifications

Bently Nevada 3500/15 127610-01

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated 10 minutes)

⚠️ Safety Reminders:

1. Communicate with operation team and confirm maintenance window.
2. Evaluate power configuration: Single power rack requires full rack shutdown. Redundant power rack allows online replacement.
3. Prepare anti-static protection for all handling steps.

Tools you need:

• Anti-static wrist strap + anti-static mat
• PH1 screwdriver
• Digital multimeter
• Mobile phone for photo recording
• Cable ties for wire rearrangement

Backup work:

• Capture photos of rear power wiring and module assembly.
• Record existing power module part numbers for verification.

Phase 2: Remove Original Module (Estimated 12 minutes)

1. Confirm rack power setup first. If only one power supply is running, cut off main power before removal.
2. Unlock front panel captive screws.
3. Pull the 3500/15 unit outward steadily. Do not twist the module to avoid bending backplane connectors.
4. Inspect the rear PIM unit and rack backplane pins. Blow away dust with dry compressed air.

Important note: If you reuse the original rear power input module, double-check matching compatibility with new front 127610-01.

Phase 3: Install New 127610-01 (Estimated 10 minutes)

1. Wear anti-static wrist strap before opening anti-static packaging.
2. Verify part number: 127610-01. Mismatched variants cannot operate normally.
3. Align module with rack slot, push horizontally until fully seated against backplane.
4. Tighten front captive screws evenly. Avoid over-tightening.

Pre-power checklist: [ ] Module fully inserted into dedicated left power slot [ ] No foreign debris inside rack backplane area [ ] Front panel secured with screws

Phase 4: Power-On & Function Test (Estimated 18 minutes)

Pre-power inspection: Check input power wiring, confirm no short circuit at terminals.

Power-up sequence:

1. Energize rack power source.
2. Watch front panel SUPPLY OK indicator. Steady green light means normal initialization.
3. Open 3500 configuration software, check rack communication status.
4. Verify all monitoring modules power up without fault alarms.
5. Maintain continuous running for over 30 minutes. Observe no intermittent power warnings.

Troubleshooting hints:

• SUPPLY OK LED off → Check input power source and rear PIM connection
• Random module communication alarms → Inspect backplane contact surface
• Unable to hot swap online → Confirm second power supply works properly


  Bently Nevada 3500/15 127610-01

Frequently Asked Questions (FAQ)

1. Can I perform hot swap for 3500/15 127610-01 arbitrarily? No. Hot swap is supported only when two power modules run in redundant mode. If your rack uses a single power supply, you have to shut down the whole monitoring rack before replacement.
2. Does the front module 127610-01 work alone without rear PIM? It cannot run independently. The power input module installs directly behind the front unit to handle AC/DC input wiring. Both assemblies must match in revision.
3. Will power module failure trigger machine trip signals? It depends on rack layout. When the only active power supply fails, the whole 3500 rack loses power, protection outputs will change state. Redundant power setup eliminates this risk.
4. Can I mix AC type and DC type 3500/15 modules for redundancy? Yes. The rack supports mixed AC and DC power supply combination. Engineers often use this scheme to connect two different power sources for higher reliability.
5. What risks appear when mismatching front module and rear PIM revision? We have encountered field cases. Mismatched revisions cause unstable output voltage, periodic rack restarts, or SUPPLY OK LED flickering. Always replace front and rear assemblies according to original part number.
6. What warranty coverage is available for this spare module? We provide 12-month warranty after shipment. Every unit undergoes complete power-on bench testing. Test photos or video records can be provided on request.
7. Is 3500/15 compatible with all generations of 3500 rack frames? Most rack frames support this module. Still, confirm rack hardware revision. Early legacy racks have minor backplane differences which may lead to assembly fit issues. Check your site manual before ordering.
