Description

1. Emerson 5X00226G02 | Rack Mount Communication Interface for Boiler & Turbine Monitoring

Product Core Brief

• Model: 5X00226G02
• Brand: Emerson
• Series: Ovation DCS Distributed Control System
• Core Function: Data exchange gateway between Ovation controllers and Q-Line remote I/O subrack
• Type: Q-Line Remote I/O Interface Module
• Key Specs: 24 V DC supply; Proprietary Q-Line bus; Front panel diagnostic LED indicators Condition: New Surplus, not refurbished ⚠️ This early hardware revision is discontinued by OEM, available inventory is limited. Not directly interchangeable with 5X00226G04 without firmware verification.

Product Introduction

Legacy Ovation power plant control racks rely on stable Q-Line communication to gather field measurement data from distributed I/O cabinets. The Emerson 5X00226G02 serves as the original revision remote I/O interface for this bus architecture.

This module establishes cyclic data polling between the main Ovation controller and remote I/O subracks. It buffers analog and discrete signal data and isolates bus faults to prevent system-wide communication collapse. Unlike later revision 5X00226G04, this G02 variant targets older OCR controller firmware releases. Many thermal power units still run this hardware; mismatched revisions often trigger bus handshake failures after replacement. It supports redundant deployment to secure continuous monitoring of boiler, turbine and auxiliary equipment.

Key Technical Specifications

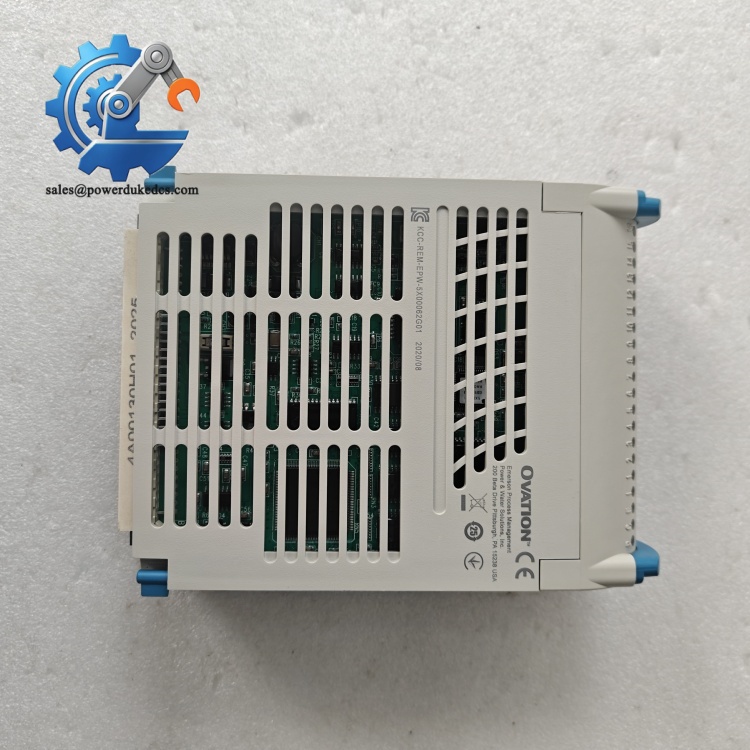

Emerson 5X00226G02

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated: 12 minutes)

⚠️ Safety Reminders

1. Coordinate operation staff to lock related control loops and arrange maintenance window.
2. Module replacement interrupts all remote I/O signals; avoid operation under normal unit load.
3. Prepare ESD protection to prevent static damage to circuit boards.

Tools to prepare

• Anti-static wrist strap and anti-static mat
• PH1 cross screwdriver
• Digital multimeter
• Mobile phone for recording wiring and slot location
• Label tape for communication cable marking

Backup work

• Export Ovation controller configuration and complete system database.
• Take clear photos of existing module backplane connector and Q-Line wiring layout.

Phase 2: Remove Old Module (Estimated: 11 minutes)

1. Confirm control rack power is fully disconnected. Wait minimum 5 minutes for capacitor discharge.
2. Unplug Q-Line communication cables one by one, mark terminals according to photos.
3. Loosen front panel locking screws, pull the module horizontally outward without twisting.
4. Inspect backplane edge connectors for bent pins, oxidation or accumulated cabinet dust.

⚠️ Twisting the PCB during extraction may permanently damage backplane pins and cause communication failure.

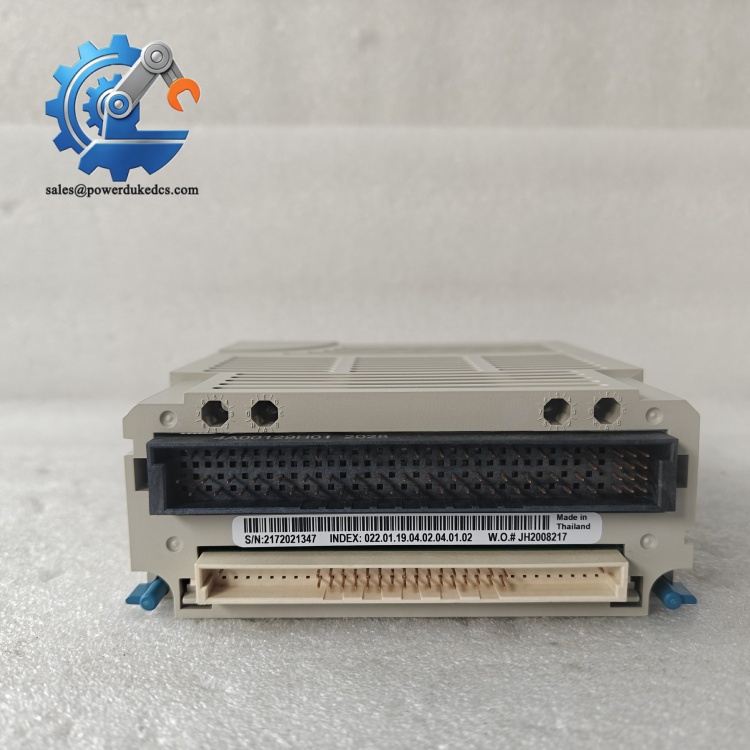

Emerson 5X00226G02

Phase 3: Install New Module (Estimated: 17 minutes)

1. Wear anti-static wrist strap before removing module from anti-static packaging.
2. Double-check part number: confirm 5X00226G02 matches replacement requirement.
3. Align module with rack guide rails, push evenly until backplane connector fully engages.
4. Tighten front panel screws evenly; avoid over-tightening which causes PCB deformation.
5. Restore Q-Line bus wiring strictly following photo records.

Self-check checklist [ ] Module part number fully verified [ ] Q-Line bus wiring direction consistent with original layout [ ] Module seated flat inside rack without tilt [ ] No loose communication terminals

Phase 4: Power-On & Functional Test (Estimated: 28 minutes)

Pre-power inspection

• Measure rack 24 V DC supply voltage to eliminate overvoltage risk
• Confirm no short circuit between power terminals

Power-on steps

1. Restore rack power, keep field machinery under safe status.
2. Observe LED indicators; steady green Link light indicates successful bus handshake.
3. Open Ovation Developer software, scan network and confirm all remote I/O cards are detected.
4. Monitor real-time process variables, verify analog readings and digital status update normally.
5. Maintain continuous running over 30 minutes, watch for intermittent communication dropout.

Troubleshooting hints

• All remote I/O offline: Check Q-Line wiring polarity and backplane connection
• Intermittent signal loss: Separate bus cables from high-voltage AC wiring and check shielding termination
• Persistent Fault LED: Confirm controller firmware supports 5X00226G02 hardware revision

Frequently Asked Questions (FAQ)

1. Can I hot-swap 5X00226G02 without shutting down the Ovation rack? Hot swap is not supported. Removing this module cuts off all remote I/O signals, which may trigger turbine or boiler protection trips. Only perform replacement during planned maintenance shutdown.
2. Can I directly replace 5X00226G02 with 5X00226G04? Direct swap is not guaranteed. The two are different hardware revisions. Compatibility depends entirely on Ovation controller firmware. Send your controller model and firmware version for verification before purchase.
3. What testing procedures do you complete before shipment? Each unit undergoes visual inspection, power-on aging test and Q-Line communication simulation. We can share test screenshots; short testing video records can be provided upon request. All stock items carry a 12-month warranty.
4. Can multiple 5X00226G02 modules work inside one control rack? Yes. Each module serves an independent Q-Line I/O subrack. Follow Emerson official topology guidelines to avoid excessive bus load that slows data refresh speed.
5. How long will delivery take for available inventory? Stock stored in Xiamen warehouse can ship within 1–3 working days. If inventory runs out, last-time component sourcing can be arranged; exact lead time will be notified before formal order confirmation.
6. What are typical failure signs of aging 5X00226G02 modules? Random remote I/O offline alarms, slow signal refresh cycles and flickering Link LED are common faults. Most failures stem from internal communication transceiver aging under long-term cabinet temperature cycling.
