- ABB LM80.A | Maintenance-Free Pulsed Laser Level Transmitter With Heated Optics
Product Core Brief
- Model: LM80.A
- Brand: ABB
- Series: LM80 Laser Level Transmitter Series
- Core Function: Delivers continuous non-contact level and distance measurement for industrial process vessels
- Type: Pulsed Laser Level Transmitter
- Key Specs: Max 100 m level measuring range; 0.3° ultra-narrow beam; ATEX/IECEx explosion-proof certified
- Condition: New Original, factory sealed, non-refurbished
Product Introduction
Dust accumulation, false echoes and medium dielectric interference often disrupt conventional level measurement in industrial silos and tall vessels. The ABB LM80.A solves these pain points with high-precision pulsed laser detection, adapting stably to granular solids and opaque liquid working conditions. It works reliably even in dusty and high-humidity factory environments.
This transmitter requires no on-site calibration after installation, greatly cutting field commissioning time. Its ultra-narrow 0.3° laser beam avoids false signal triggering, delivering stable measurement data without echo interference. Equipped with heated anti-condensation optics and a rugged aluminum enclosure, it supports long-term unattended operation. With a 3Hz update frequency and wide temperature adaptability, it fits mining, chemical, grain processing and heavy industrial scenarios perfectly.
Key Technical Specifications
| Parameter Item | Technical Data |
|---|---|
| Product Type | Intermediate Range Laser Level Transmitter |
| Measuring Range | 0–100 m (level measurement); 0–150 m (positioning measurement) |
| Laser Beam Divergence | ≤ 0.3° (no false echoes) |
| Update Rate | 3 times per second |
| Measurable Medium | Granular solids, powders, all opaque liquids |
| Output Signal | 4-20 mA analog output + dual relay output |
| Core Design | Heated anti-condensation optics, built-in laser alignment pointer |
| Protection Certification | ATEX, IECEx, CSA hazardous area certification |
| Enclosure Material | Powder-coated aluminum / stainless steel optional |
| Auxiliary Interface | 1/8” NPT purge port for dust cleaning |
| Operating Temperature | -40°C to +60°C |
| Installation Feature | No vessel emptying or filling required for commissioning |

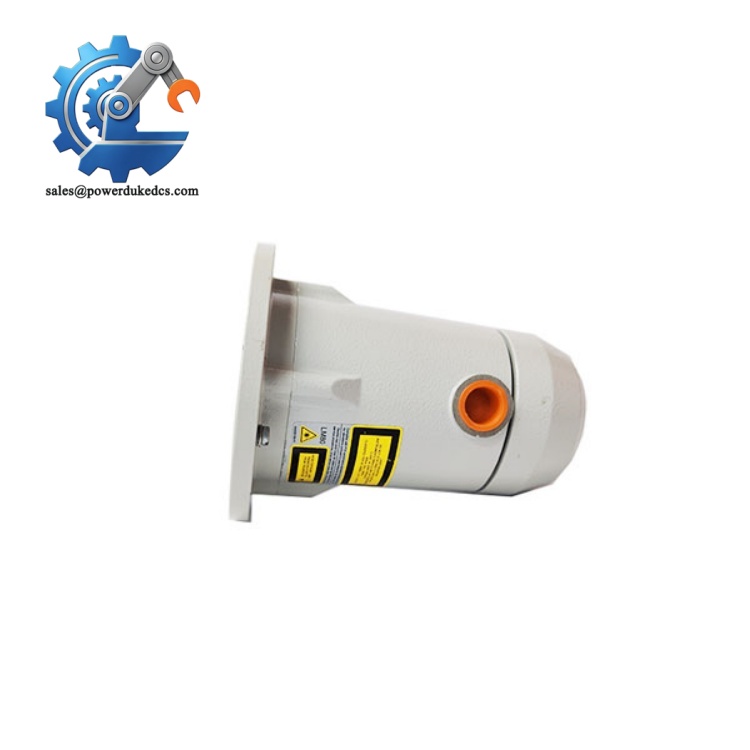

ABB LM80.A
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (8 mins)
Notify on-site process personnel to stabilize vessel operating status. Cut off relevant circuit power and confirm no live operation risks. Wait 3 minutes for circuit residual power discharge.
Prepare tools: ESD wrist strap, adjustable wrench, laser alignment auxiliary tool, multimeter and marking pen.
Backup and inspection: Check LM80.A complete accessories including mounting flange and sealing gaskets. Confirm on-site installation height avoids material feeding impact zones to prevent laser beam blockage.
Stage 2: Old Device Removal (12 mins)
Disconnect 4-20 mA signal cables and power cables one by one, mark wire numbers clearly. Loosen flange fixing bolts evenly to avoid equipment tilting.
Remove the old transmitter slowly and check the installation nozzle for dust and material residue. Clean the nozzle interior with compressed air to ensure unobstructed laser emission and reception.
Stage 3: New LM80.A Installation (15 mins)
Wear ESD protection before unpacking. Verify full model .A matches project requirements.
Align the device with the mounting flange, place sealing gaskets evenly, and fasten bolts in diagonal sequence with uniform force. Activate the built-in laser pointer to confirm the beam aims vertically at the material surface center for precise alignment.
Complete wiring connection per official wiring diagram, check cable insulation integrity, and lock wiring terminals tightly.
Pre-power-on self-check: confirm firm installation, correct wiring, unblocked optical window and no foreign objects near the detection range.
Stage 4: Power-On & Functional Debugging (25 mins)
Switch on the power supply and confirm the device indicator lights up normally. The .A needs no manual calibration, it completes auto-ranging adaptation automatically.
Connect the control system to verify 4-20 mA signal output stability. Simulate material level changes to check real-time data linkage.
Run continuous monitoring for 20 minutes. Confirm no data drift, no alarm codes and stable communication to finish commissioning.
Frequently Asked Questions (FAQ)
1. Does ABB .A work in dusty industrial environments?Yes. The laser beam penetrates moderate dust, and the reserved purge port supports regular air cleaning. It effectively avoids dust coverage on optical lenses and maintains measuring accuracy in mining and grain processing scenarios.
2. Is on-site calibration required after installation?No. This model supports full auto-ranging adaptation. No liquid filling, material stacking or manual parameter calibration is needed during commissioning, which saves massive on-site debugging time.
3. What certifications does the .A have for hazardous areas?It carries complete ATEX, IECEx and CSA explosion-proof certifications. It can be safely deployed in flammable and explosive industrial environments such as chemical and petrochemical plants.
4. What output modes does this laser level transmitter support?It integrates standard 4-20 mA analog output and dual relay switch output. It can connect with most PLC and SCADA systems for real-time monitoring and upper/lower limit alarm control.
5. What is the biggest advantage of .A over ultrasonic level meters?It features zero false echoes and ultra-narrow beam design. It is not affected by medium dielectric constant, steam or material slope, delivering far higher stability and accuracy for tall silo and long-distance measurement.
6. Can the heated optics prevent lens condensation completely?Basically yes. The built-in heating structure eliminates lens condensation in high humidity and temperature difference environments. Well, it cannot resist long-term direct water immersion per design specs.
