Description

ABB PM510V16 CPU Module | 16 MByte Memory, ModuleBus & AF100 Communication Support

Product Core Brief

Model: PM510V16
Full Part Code: 3BSE008358R1
Brand: ABB
Series: Advant Controller 400 / ACM System
Core Function: Execute real-time control logic as main processing unit inside SC510 carrier rack
Type: Rack-mounted Processor CPU Module
Key Specs: 16 MB memory, ModuleBus interface, front diagnostic LEDs, supports MB510 program card base
Condition: New Surplus, non-refurbished

⚠️ Officially discontinued by ABB, original serial production terminated. Factory restock is unavailable, available inventory is limited surplus stock.

Product Introduction

Random control logic halt and lost process data often trace back to aging main processor hardware on legacy Advant ACM platforms. The ABB PM510V16 (3BSE008358R1) serves as the primary processing card installed into SC510 submodule carrier.

This 32-bit processor runs continuous sequence and closed-loop control algorithms for power plant, pulp & paper and metallurgy facilities. It communicates with field I/O and upper-level stations via ModuleBus and AF100 fieldbus. Front-panel LED indicators deliver instant status feedback for RUN, hardware fault and low backup battery alerts. It is the upgraded 16MB variant compared to the 8MB PM510V model, allowing larger control program deployment without hardware modification to existing racks.

Key Technical Specifications

Parameter	Specification
Design Part No.	PM510V16
Order Code	3BSE008358R1
Compatible Carrier	SC510 Submodule Carrier (3BSE003832R1)
Memory Size	16 MByte Dynamic RAM
Processor Architecture	32-bit RISC CPU
Communication Interfaces	ModuleBus internal bus, AF100 fieldbus
Supported Accessory	MB510 Program Card Interface
Front Indicators	RUN, FAULT, BATT low status LED
Power Consumption	Approx. 7.5 W
Operating Temperature	0 °C ~ +55 °C
Storage Temperature	-40 °C ~ +70 °C
Mechanical Form	Standard Eurocard rack module
Exchange Reference	EXC3BSE008258R1
Coated Marine Variant	PM510MV16 (3BSE016240R1)

Installation & Configuration Guide

Pre-Installation (Estimated: 18 min)

⚠️ Safety Reminders:

Complete planned shutdown and implement lockout-tagout procedures
Cut off rack power supply and wait minimum 20 minutes for internal capacitor discharge
Upload and archive the full control program to offline storage
Record all hardware revision information and module slot arrangement

Tools required:

ESD wrist strap and anti-static work mat
Digital multimeter
Mobile camera for documenting wiring, slot positions and module labels
Printed system wiring diagram

Backup tasks:

Export historical alarm logs stored inside the processor
Note battery replacement date of the existing CPU
Check adjacent cards for signs of overheating or corrosion

Old Unit Removal (Estimated: 20 min)

Unplug any front-mounted program cards connected to the processor
Release the front panel locking lever of the Eurocard module
Pull the PM510V16 horizontally outward from SC510 carrier slot
Inspect backplane connector pins for oxidation, bending or burn traces
Remove backup battery from old module and record voltage reading

⚠️ Do not twist the module during extraction. Bent backplane contacts create intermittent communication failures after replacement.

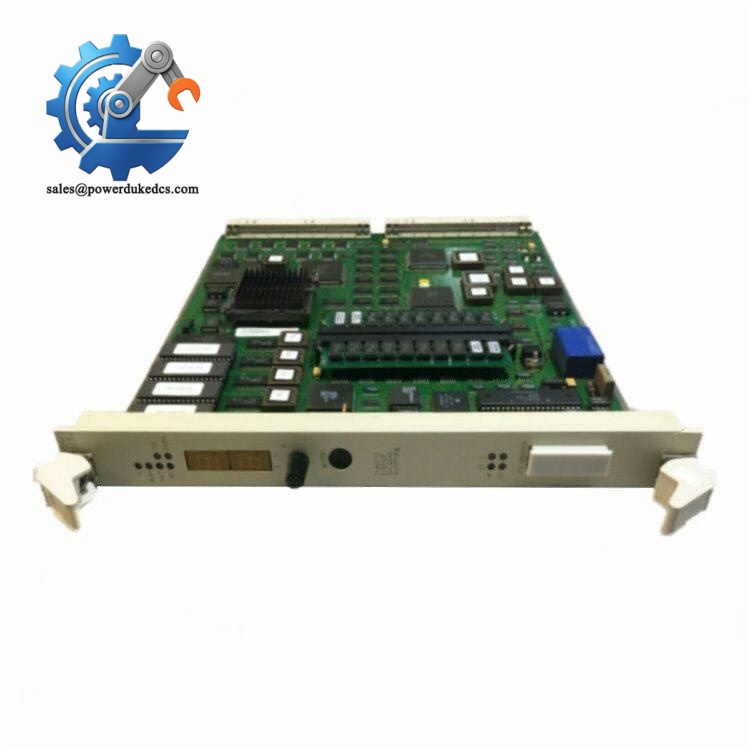

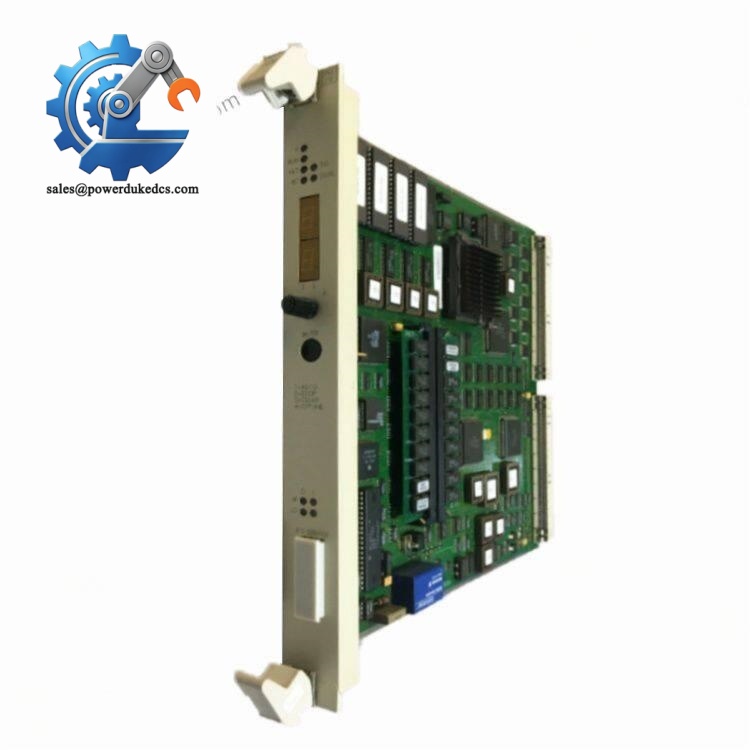

ABB PM510V16

New Module Installation (Estimated: 22 min)

Activate full ESD protection before opening anti-static packaging
Confirm printed full part number PM510V16 / 3BSE008358R1 matches required spare
Inspect PCB surface, edge connector and component side for transit damage
Insert module smoothly into the designated SC510 slot and secure front latch
Install new backup battery following polarity marking on PCB
Complete pre-power checklist:

☑ Module fully seated and locking lever engaged

☑ Battery installed with correct polarity

☑ No loose hardware or conductive debris inside rack compartment

☑ All adjacent cards remain in original slot positions

Power-On & Function Test (Estimated: 45 min)

Pre-power inspection:

Verify rack input supply voltage matches system requirements
Confirm no short circuits on backplane power rails

Test steps:

Restore rack power and observe front LED initialization sequence
Connect engineering workstation to establish communication with CPU
Download saved control program and verify program integrity checksum
Switch processor to RUN mode and monitor fault status for at least 60 minutes
Verify data exchange between PM510V16, remote I/O and operator stations over AF100
Trigger minor process sequences to confirm closed-loop control operates normally

Troubleshooting tips:

Constant FAULT LED after startup: Verify hardware compatibility with SC510 carrier and check battery voltage
Unable to download control program: Inspect program card interface or communication cable termination
Intermittent offline status: Re-seat processor and clean backplane connector contacts

Frequently Asked Questions (FAQ)

Q: Can PM510V16 directly replace the 8MB PM510V version?

A: Physical form factor and pin definition are identical. Direct swap is supported. Larger memory allows expanding control logic; no rack modification required.

Q: Is hot swapping supported when the control rack remains energized?

A: Hot extraction is strictly prohibited. Live removal damages backplane circuits and triggers sudden loss of all process control. Full power shutdown is mandatory.

Q: What typical faults point to a failed PM510V16 processor module?

A: Common symptoms include processor failing to enter RUN state, continuous fault alarms, periodic loss of AF100 fieldbus communication, and random program execution freeze during load fluctuation.

Q: Will control programs be retained after processor replacement?

A: Program data resides inside the processor RAM backed by lithium battery. The new blank CPU contains no application logic. You must re-download the saved project after installation.

Q: What is the difference between PM510V16 and PM510MV16?

A: PM510MV16 is the marine conformal-coated variant. It provides improved humidity and salt mist resistance for offshore and coastal sites. Standard PM510V16 does not have protective PCB coating.

Q: How long can backup battery sustain memory content without external power?

A: A new lithium battery maintains RAM data for roughly 6–12 months under room temperature. Replace battery proactively once low battery warning appears.

Q: Which damage conditions will void product warranty?

A: Warranty excludes failure caused by ESD impact, reverse battery polarity, overvoltage surges, liquid contamination, physical bending of PCB and improper handling during rack extraction. Every unit undergoes bench testing before shipment; test records can be provided on request.
